Icom IC-M504 Instruction Manual

35
6
DSC OPERATION
6

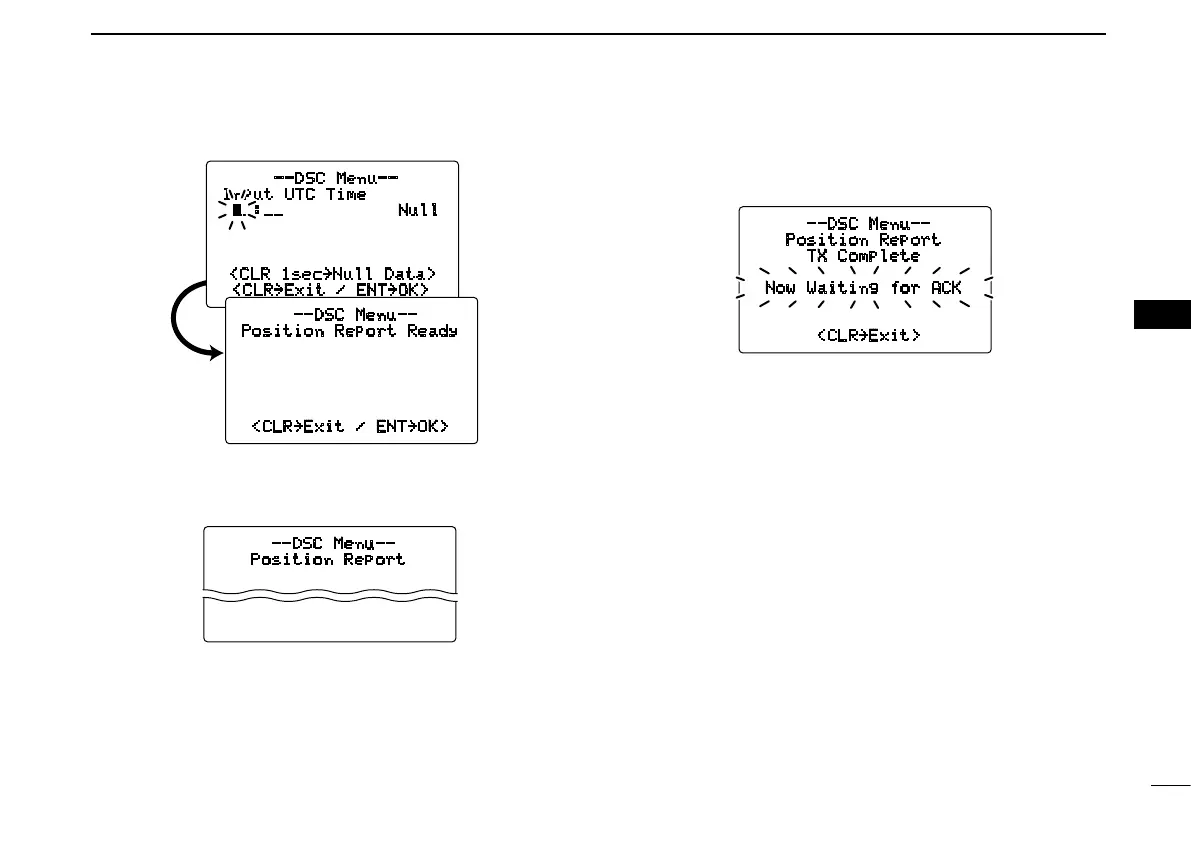

y Push [DIAL•ENTER] to transmit the position report call.
 •IfChannel70isbusy,thetransceiverstandsbyuntilthechan-
nel becomes clear.
u After the position report call has been transmitted, the fol-
lowing indication is displayed.
i Push [CLR] to return to the previous indication before en-
tering the DSC menu.
 •Evenif[CLR] hasn’t been pushed, the display automatically
returns to the previous indication after 2 sec. of inactivity.
--DSC Menu--
Position Report
Transmitting
--DSC Menu--
Input UTC Time
__:__ Null
<CLR 1sec˘Null Data>
<CLR˘Exit / ENT˘OK>
--DSC Menu--
Position Report Ready
<CLR˘Exit / ENT˘OK>
--DSC Menu--
Position Report
TX Complete
Now Waiting for ACK
<CLR˘Exit>
