DSC OPERATION
Regardless of a GPS receiver (NMEA0183 ver. 2.0 or
3.01) connection, the current position/time information
appears in steps r and t. If the information is not nec-
essary to be changed, push [DIAL•ENTER] or [16•9]
several times to skip the data input steps.
r The position information appears. Set your position (lati-
tude and longitude) data by rotating [DIAL].
 •Push[16•9] or [CH/WX•DUAL•U/I/C] to move the cursor for-
ward or backward, respectively.
 •Rotate[DIAL] to edit N; North latitude or S; South latitude when
thecursorisonthe‘N’or‘S’position,andW;Westlongitudeor
E;Eastlongitudewhenthecursorisonthe‘W’or‘E’position.
 •Push[CLR] for 1 sec. to clear the latitude/ longitude data.
 •Push[CLR] to cancel and return to the DSC menu.
t After setting the position data, push [DIAL•ENTER] to set
the current UTC time. Set the current UTC time by rotat-
ing [DIAL], then push [DIAL•ENTER].
 •Push[16•9] or [CH/WX•DUAL•U/I/C] to move the cursor for-
ward or backward, respectively.
 •Push[CLR] for 1 sec. to clear the UTC time data.
 •Push[CLR] to cancel and return to the DSC menu.
y Push [DIAL•ENTER] to transmit the position request
reply call to the selected station.
 •Your positiondata is transmitted, when[DIAL•ENTER] is
pushed.

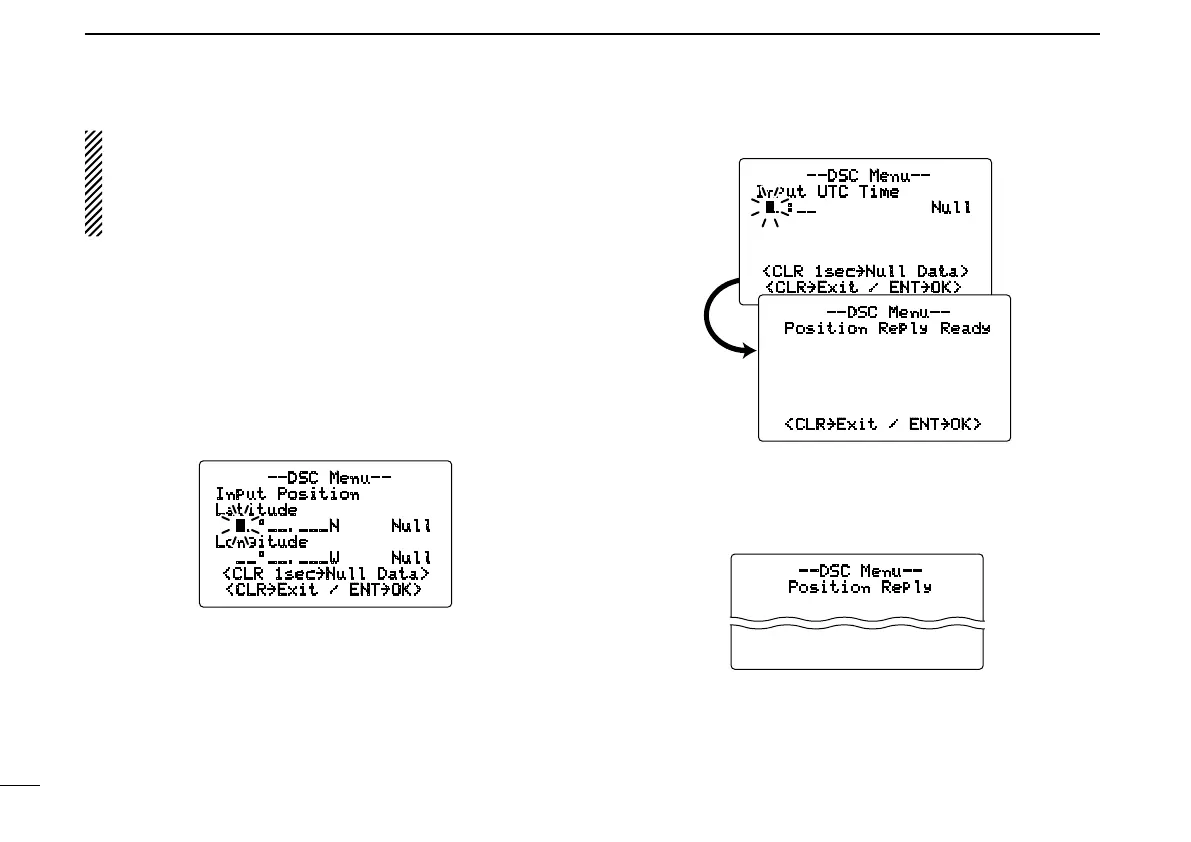

--DSC Menu--
Position Reply
Transmitting
--DSC Menu--
Input Position
Latitude
__°__.___N Null
Longitude
__°__.___W Null
<CLR 1sec˘Null Data>
<CLR˘Exit / ENT˘OK>
--DSC Menu--
Input UTC Time
__:__ Null
<CLR 1sec˘Null Data>
<CLR˘Exit / ENT˘OK>
--DSC Menu--
Position Reply Ready
<CLR˘Exit / ENT˘OK>
