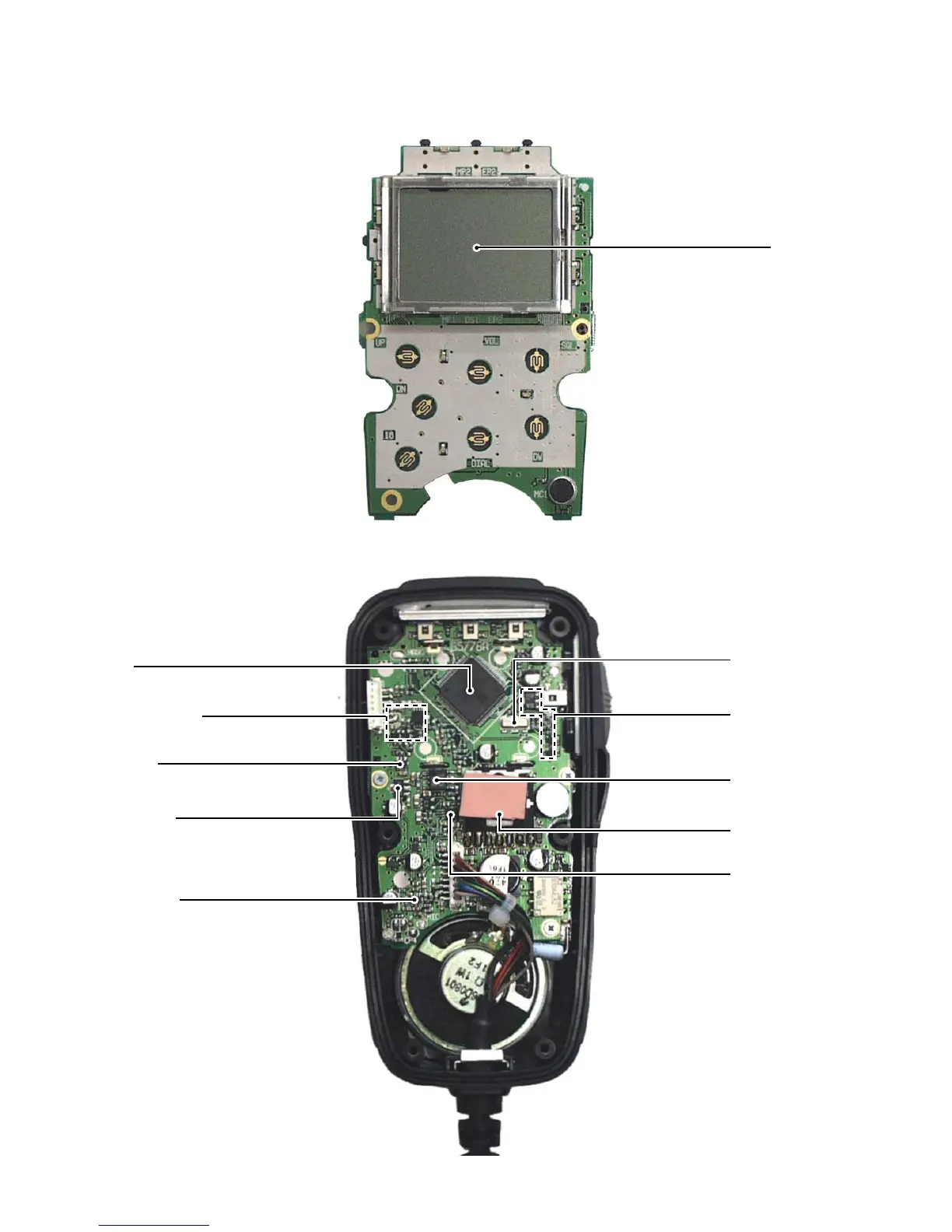

Icom IC-M601 - 2-2 HM-134 (OPTIONAL UNIT) VIEWS; HM-134 TOP AND BOTTOM VIEWS

2-2 HM-134 (OPTIONAL UNIT)
• TOP VIEW
LCD
(DS1: A0119)
• BOTTOM VIEW
CPU
(IC1: µPD789405AGK-A30-9EU)
Data buffer circuit
Reset IC
(IC7: S-80928ANMP)
5V regulator
(IC5: TA78L05F)
MIC amplifier
(IC4: NJM2125F)
System clock
(X1: CSTCC4.91MG)
Dimmer circuit
Volume IC
(IC3: M62429FP)
AF/MIC switch
(IC9: TC4W53FU)
AF amplifier
(IC2: TA8201AK)
2 - 2
