Icom IC-M601 - AF UNIT DISASSEMBLY; UT-112 VOICE SCRAMBLER INSTALLATION

J2
J4
J5
J8
J10
J9
J
K
I
K
K
H
J3
UT-112

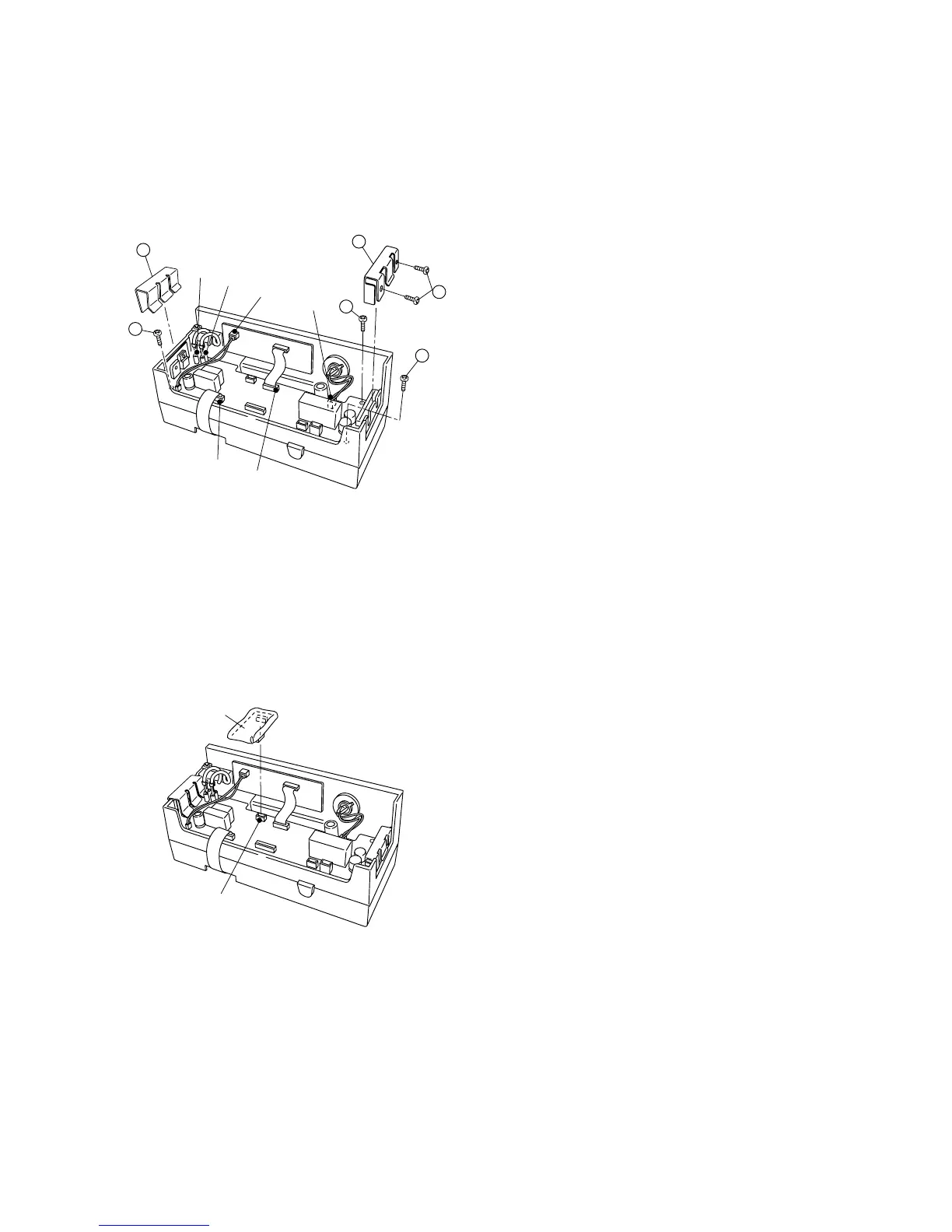

• UT-112 VOICE SCRAMBLER UNIT INSTALLATION
1 Plug UT-112 into J3 on the AF unit.
• Removing the AF unit
1 Disconnect 4 connectors from J5, J8, J9 and J10.
2 Disconnect 2 flat cables from J2 and J4
3 Unscrew 2 screws H, and remove 2 clips I, J.
4 Unscrew 3 screws K, and remove the AF unit.
3 - 2
