SECTION 3
.
DISASSEMBLY INSTRUCTION

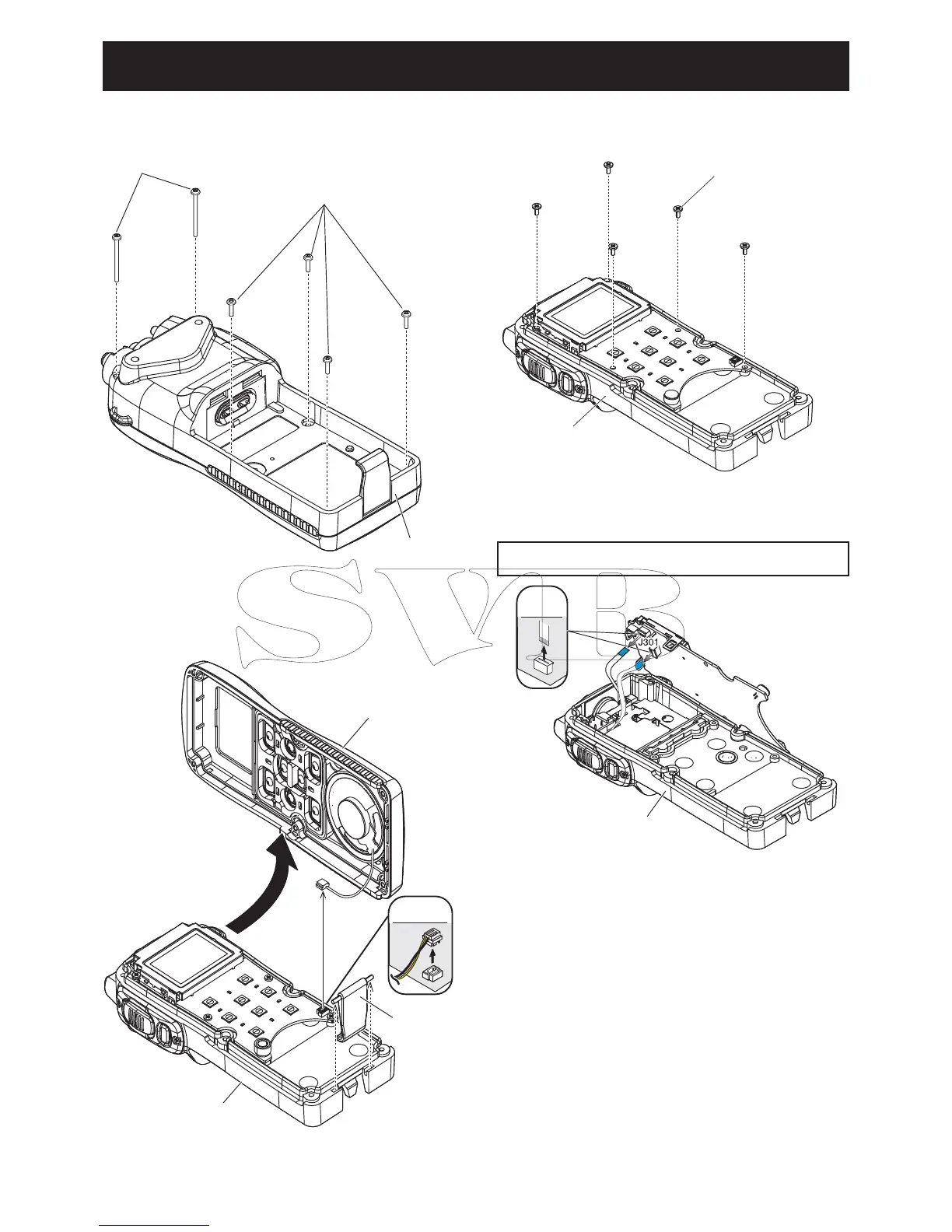

1. Removing the Front panel
1) Remove 6 screws from the rear panel.
2) Disconnect the speaker cable from the MAIN UNIT
and remove the front pannel form rear. (The lock
plate is simultaneously come off.)
J251
MAIN UNIT
REAR PANEL
Screw×4
Screw×2
J251
MAIN UNIT
MAIN UNIT
CHASSIS
Screw×5
J251
J251
MAIN UNIT
SPEAKER
CABLE
LOCK PLATE
FRONT PANEL
CHASSIS
J251
MAIN UNIT
MAIN UNIT
RF
UNIT
J300
FLAT
CABLE
CHASSIS
2. Removing the MAIN UNIT
1) Remove 5 screws from the MAIN UNIT.
2) Disconnect 2 fl at cables from the MAIN UNIT.
3) Remove the MAIN UNIT from the CHASSIS.
BE CAREFUL about the fl at cable and connector when
separating the MAIN UNIT from the CHASSIS.
