SECTION 3 DISASSEMBLY INSTRUCTION

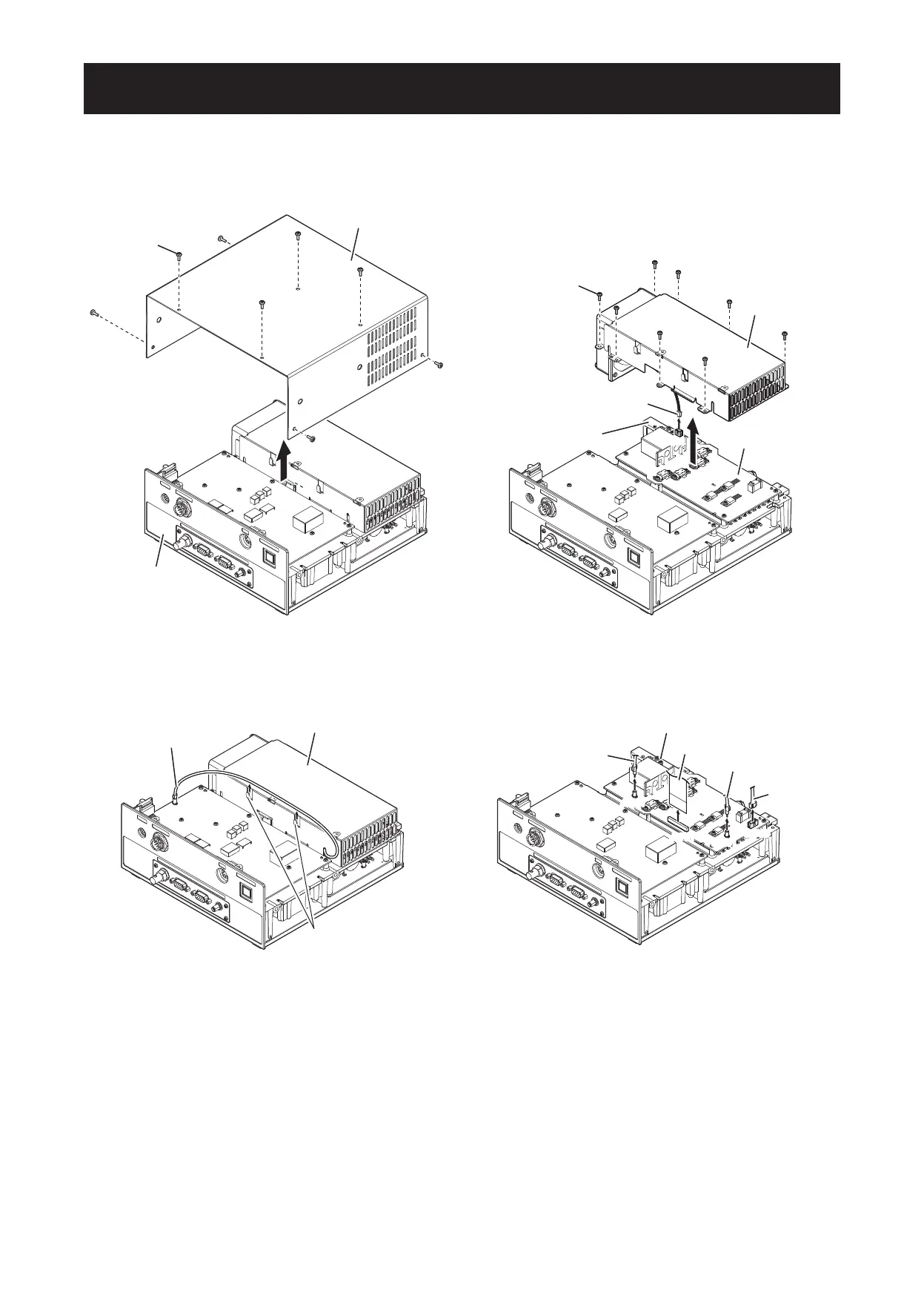

1. REMOVING THE PA UNIT
1) Remove the 8 screws from the top cover, and then
remove the top cover from the chassis.
Chassis
Top cover
Screws × 8
2) Remove the coaxial cable from the 2 cable hooks on the
PA cover.
PA cover
Coaxial cable
Cable hooks
3) Remove the 8 screws from the PA cover, and then
separate the PA cover from the chassis as shown in the
illustration below.
Disconnect the cooling fan cable from the PA UNIT, and
then remove the PA cover from the chassis.
J6501J6501
Chassis
Cooling fan cable
PA cover
Screws × 8
PA UNIT
4) Disconnect the tuner cable, flat cable, and 2 coaxial
cables from the PA UNIT.
J6703J6703
J6101
J6101
J6701
J6701
J6401
J6401
Tuner cable
Coaxial cable
Flat cable
PA UNIT
Coaxial cable
Continued on the next page…
