2-1

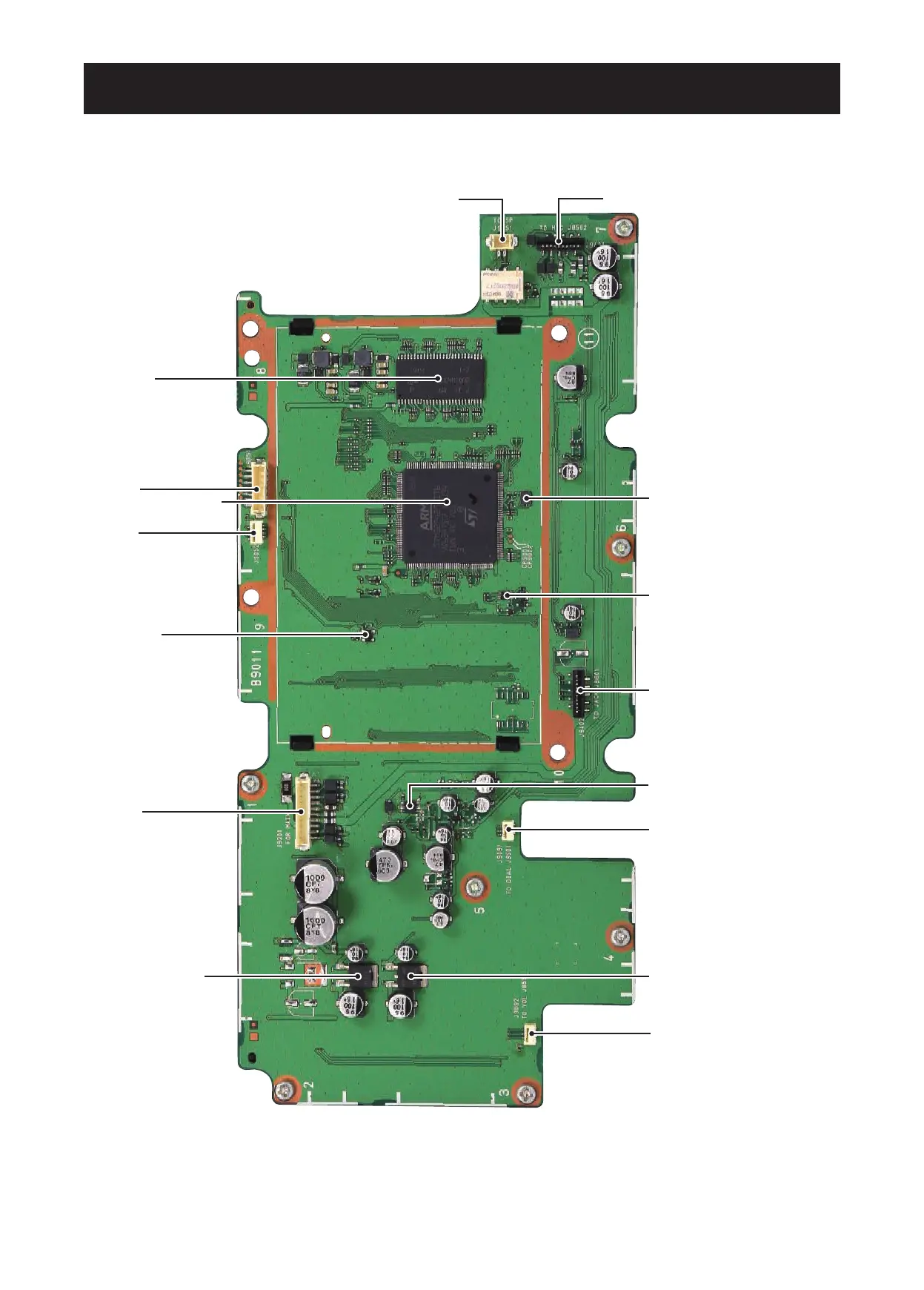

SECTION 2 INSIDE VIEWS
• LOGIC UNIT (Remote Controller)
RAM
(IC9121)
J9402
J9401
3.3 V REGULATOR
(IC9254)
J9092
FRONT CPU
(IC9001)
J9051
J9151
J9052
J9201
J9091
9.8304 MHz
CRYSTAL OSCILLATOR
(X9091)
MIC AMPLIFIER
(IC9301)
RESET IC
(IC9091)
CLONING DATA INTERFACE
(IC9402)
8 V REGULATOR
(IC9252)
