PANEL DESCRIPTION

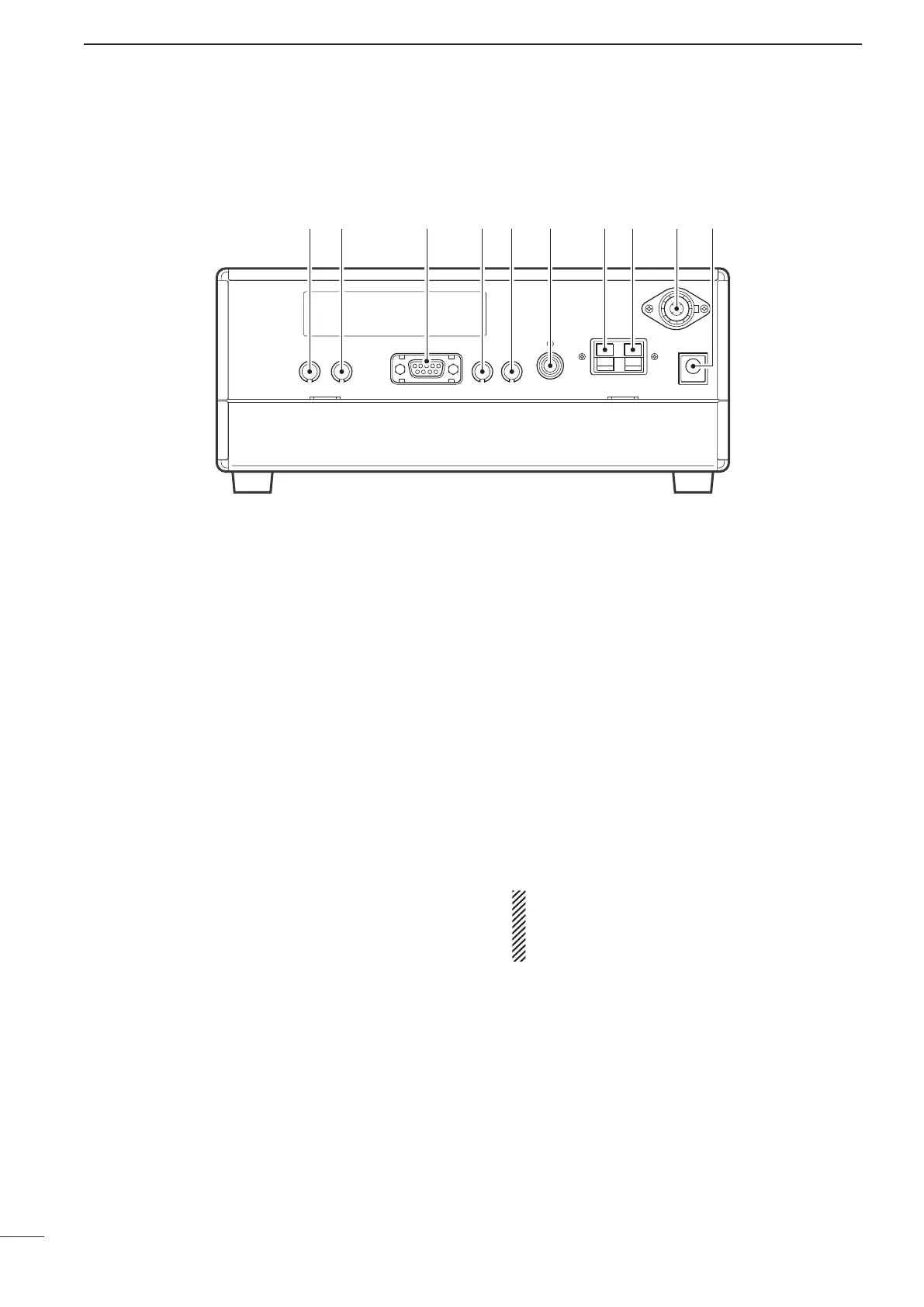

■ Rear panel
q RECORDER REMOTE JACK [REC REMOTE]
Controls the running of a tape recorder for
recording. Connects to the REMOTE jack on a
tape recorder.
• This function can be turned OFF in set mode. (p. 32)
w RECORDER JACK [REC]
Outputs receive audio signals. Connects to the
AUX or LINE IN jack on a tape recorder.
e RS-232C CONNECTOR [RS-232C]
Connects an RS-232C cable. An RS-232C cable
can be used to connect the receiver to a PC. In this
way commands can be sent to the receiver via the
PC.
r CI-V REMOTE CONTROL JACK [REMOTE]
Allows connection to an Icom CI-V system
transceiver or another receiver for the transceive
function. Also connects to a PC with several
receivers for command control via an optional
CT-17 CI-V LEVEL CONVERTER.
t EXTERNAL SPEAKER JACK [EXT SP]
Connects an 8
Ω external speaker, if desired.
• When an external speaker is connected, the internal
speaker does not function.
y MUTE CONTROL JACK [MUTE]
Mutes audio outputs and attenuates the receive
signal input when grounded. Used for CI-V
transceive operation with a transceiver.
u GROUND TERMINAL [GND] (p. 7)
Connects the black terminal to ground.
i ANTENNA 2 TERMINAL [ANT 2] (p. 9)
Connects the red terminal to a 500
Ω long wire
antenna.
o ANTENNA 1 CONNECTOR [ANT 1] (p. 9)
Connects a 50
Ω antenna with a PL-259 connector
and a 50 Ω coaxial cable.
!0 DC POWER JACK [DC 13.8V] (p. 8)
➥ Connects the supplied AC adapter for versions
with an AC adapter.
➥ Connects to a 13.8 V DC power source using
the supplied DC cable for versions without an
AC adapter.
• Current of 1.5 A or greater is required.
DO NOT use a cigarette lighter socket as a
power source when operating in a vehicle. The
plug may cause voltage drops and ignition noise
may be superimposed onto received audio.
