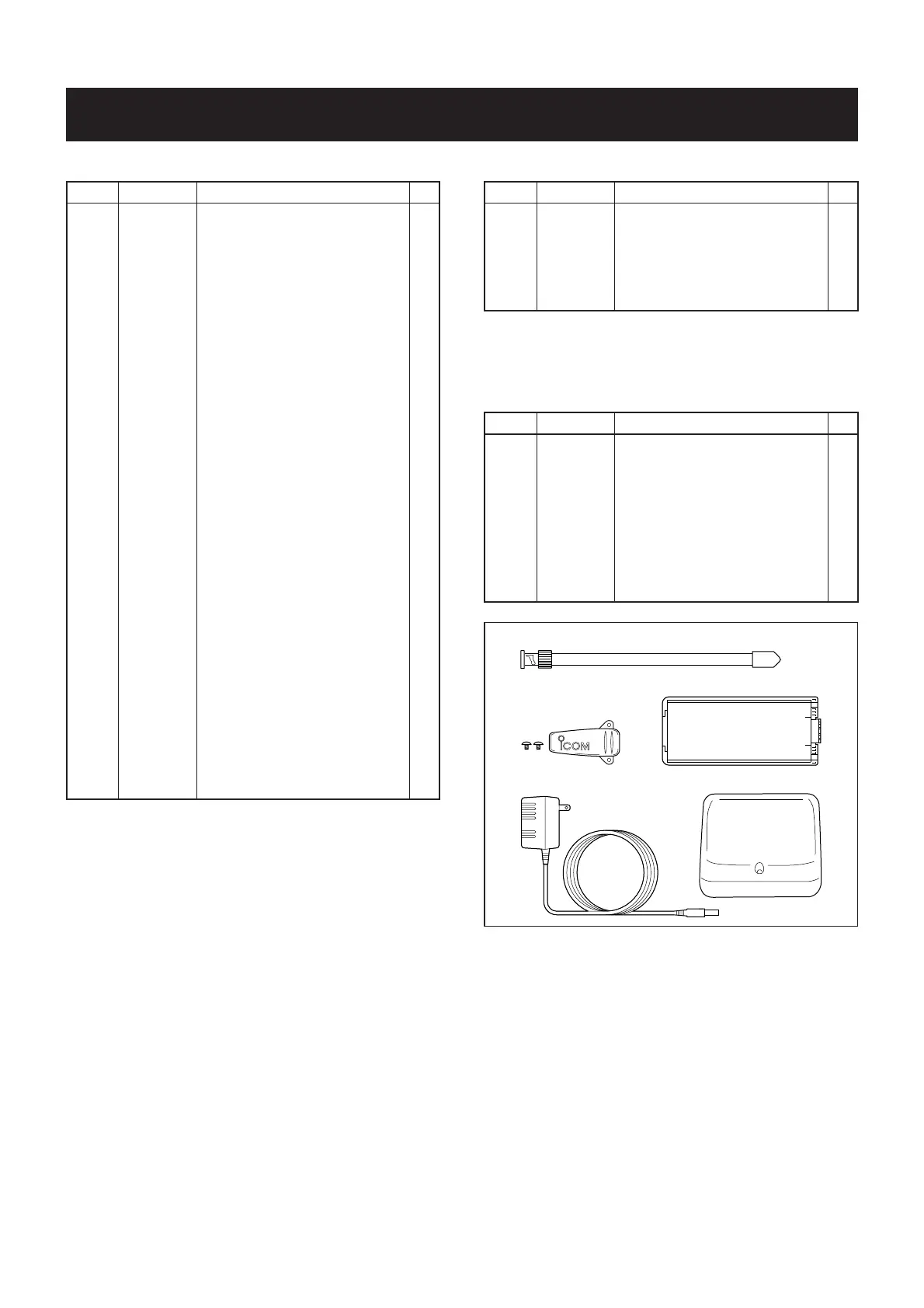

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
Screw abbreviations
B0, BT: Self-tapping PH: Pan head
NI-ZU: Nickel-Zinc ZK: Black
REF. NO. ORDER NO. DESCRIPTION QTY.
EP1
Optional product
Antenna FA-B2E
1
EP2
Optional product
Battery BP-208N [EUR-1], [EXP-1], [USA-1], [CSA-1]
1
Optional product
Battery BP-222N EXP [EUR-2], [EXP-2], [CSA-2]
1
Optional product
Battery BP-222N RBRC [USA-2] only
1
Optional product
Battery BP-209N EXP [CSA-3], [EUR-3], [EXP-4]
1
Optional product
Battery BP-209N RBRC [USA-3] only
1
EP3
Optional product
AC adopter BC-146
1
EP4
Optional product
AC adopter BC-147E [EUR-2], [EXP-2], [EUR-3], [EXP-4]
1
Optional product
AC adopter BC-147A [USA-2], [CSA-2], [USA-3]
1
MP1
Optional product
MB-103
1
EP3
EP2
MP1
EP4
EP1
* Design is depended on versions.
[MAIN UNIT]
[ACCESSORIES]
REF. NO. ORDER NO. DESCRIPTION QTY.
DS4 5030002800 LCD A01B001X 1
MP1 8510016470 2775 VCO case 1
MP2 8510016470 2775 VCO cover 1
MP3 8210021280 2826 reflector 1
MP4 8930064560 2826 LCD holder 1
MP6 8930058840 Shield sponge 1
[CHASSIS PARTS]
REF. NO. ORDER NO. DESCRIPTION QTY.
J1 6510022460 Connector BNC-R162 1
SP1 2510001280 Speaker SDRS-3650P-008A 1
W1 8900009640 Cable OPC-963 1
MP1 8210021290 2826 front panel 1
MP2 8930064470 2826 keyboard 1
MP3 8010019850 2826 chassis 1
MP4 8930064420 2826 D-cap 1
MP5 8930064440 2826 jack cap 1
MP6 8930064910 2826 S-jack seal 1
MP7 8930050870 2251 release button 1
MP9 8930064460 2826 PTT button 1
MP10 8210021300 2826 PTT panel 1
MP11 8930064450 2826 PTT rubber 1
MP12 8210021270 2826 rear panel 1
MP13 8210017091 2337 terminal holder-1 1
MP14 8310062510 2826 window plate 1
MP15 8930042350 1922 microphone sheet 1
MP16 8930051300 2251 microphone sponge 1
MP18 8610012170 Knob N-326 1
MP19 8810008640 Screw No.0-1 FH B0 2 × 4 NI-ZU (BT) 3
MP20 8930054881 2458 plus terminal-1 1
MP21 8930050840 2251 minus terminal 1
MP23 8830001340 1903 hex. Nut 1
MP24 8830001250 Nut ANT connector-101 1
MP25 8930036751 Spring (Y)-1 1
MP27 8810009510 Screw PH B0 2 × 4 NI-ZU (BT) 6
MP28 8810009560 Screw PH B0 2 × 6 ZK (BT) 4
MP29 8810000100 Screw PH M2 × 4 ZK 2
MP30 8810008990 Screw PH B0 2 × 10 ZK (BT) 2
MP31 8860001210 2251 antenna lug plate 1
MP32 8510016800 2826 shield cover 1
MP33 8510016790 2826 option plate 1
MP34 8930064880 2826 window sheet 1
MP35 8810005700 Screw No.0-1 PH M2 × 4 ZK 4
MP36 8930065490 Rubber sheet (BO) 1
MP37 8510016890 2826 U-shield cover 1
