ICON Cube - Front Panel 9

1
Line Ins
2

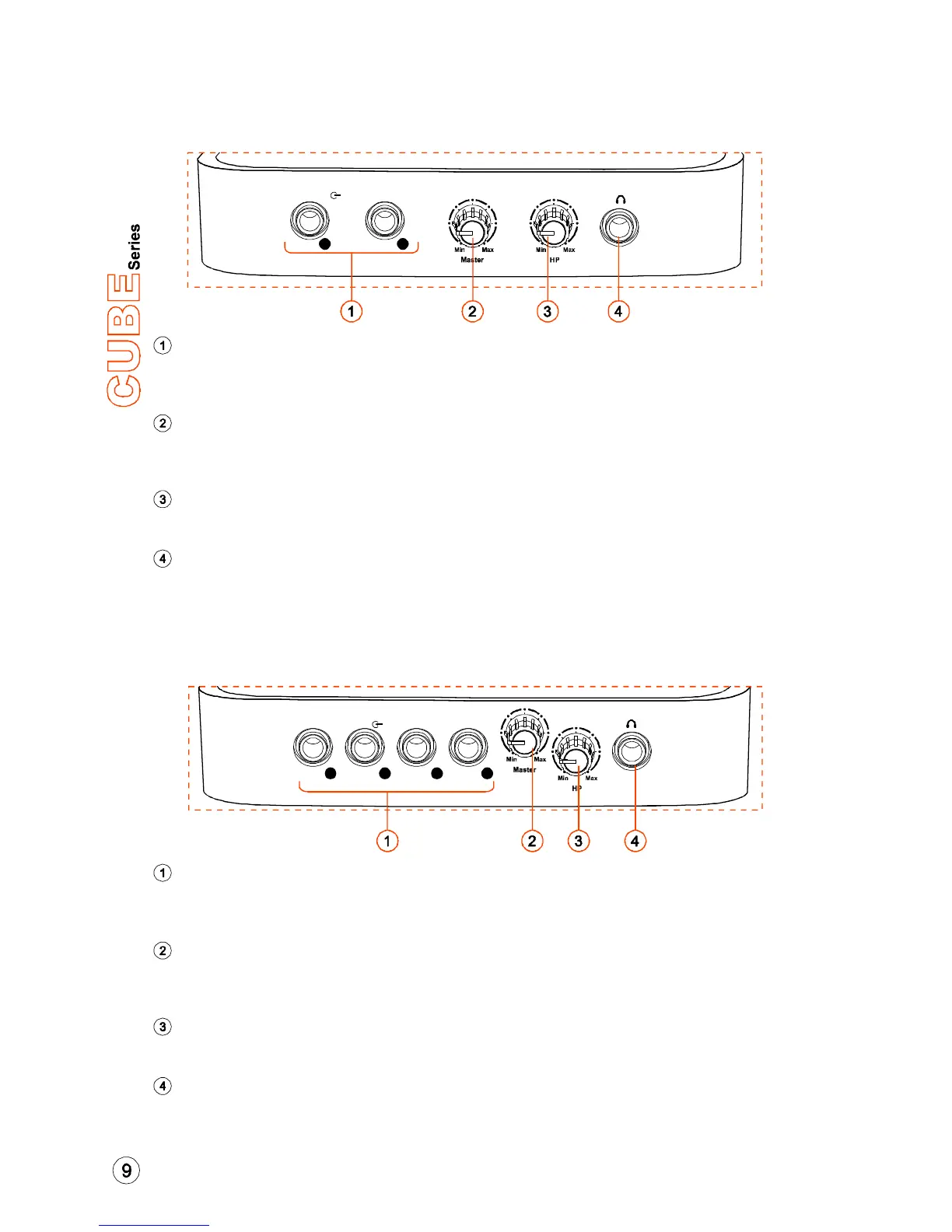

Front Panel - Cube
These are unbalanced analog inputs on standard 1/4" TS connectors
at - 10dB line level.
This potentiometer controls the master output level of the analog
outputs.
This potentiometer controls the output level of the headphone output.
This output jack accepts a standard 1/4" stereo TRS headphone
connector.
LINE INPUTS 1-2:
MASTER LEVEL CONTROL:
HEADPHONE LEVEL CONTROL:
HEADPHONE OUTPUT:
Front Panel - Cube Pro
These are unbalanced analog inputs on standard 1/4" TS connectors at
-10dB line level.
This potentiometer controls the master output level of the analog
outputs.
This potentiometer controls the output level of the headphone output.
This output jack accepts a standard 1/4" stereo TRS headphone
connector.
LINE INPUTS 1-4:
MASTER LEVEL CONTROL:
HEADPHONE LEVEL CONTROL:
HEADPHONE OUTPUT:
Line Ins
1 2 3 4
