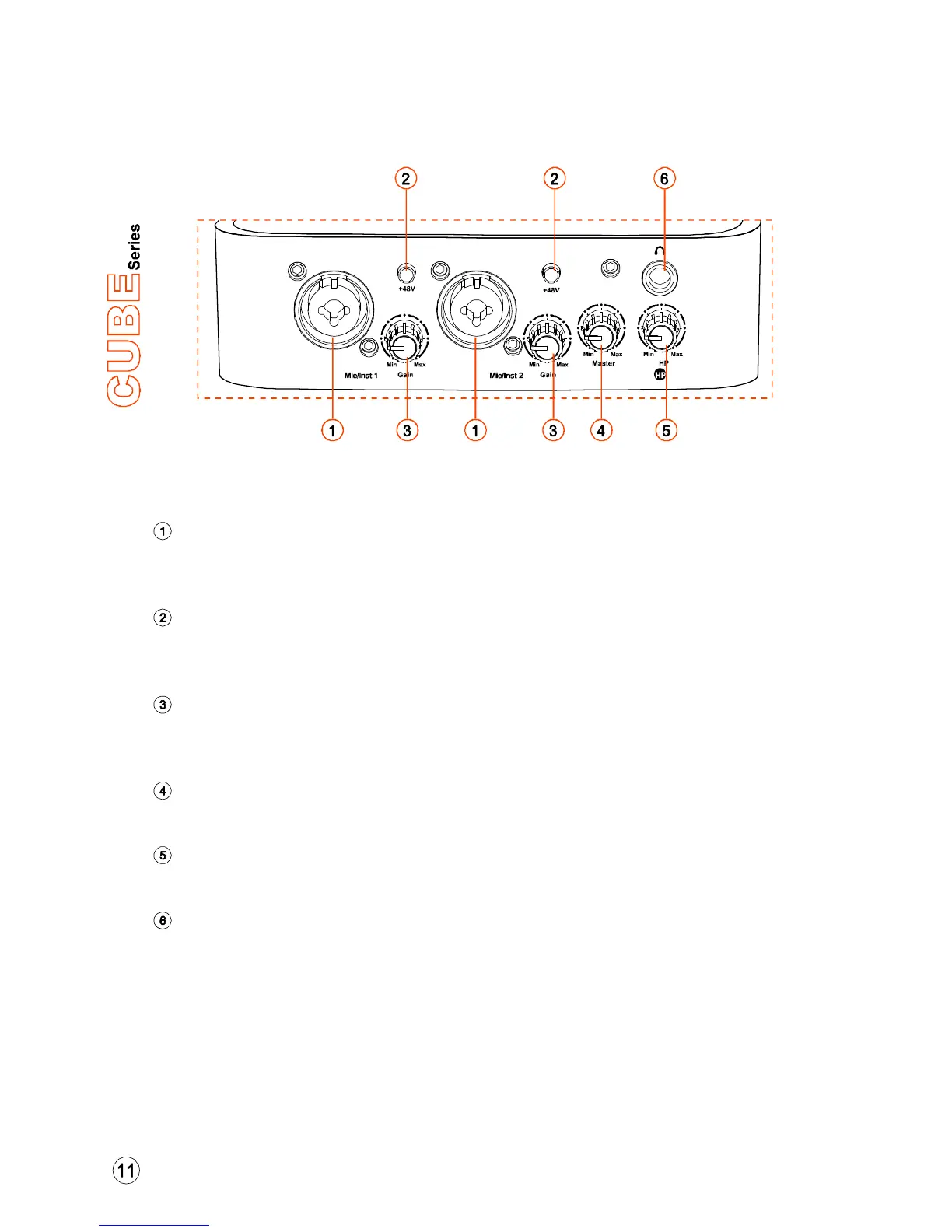

Front Panel - Cube 4Nano
“MIC/INST” INPUTS 1/2
48V PHANTOM POWER SWITCH
INPUT GAIN LEVEL CONTROLS 1/2
MASTER LEVEL CONTROL
HEADPHONE LEVEL CONTROL
HEADPHONE OUTPUT
Unbalanced instrument and mic level inputs. These hybrid connectors will
accept a standard 3-pin XLR plug or a 1/4” TS connector.
Press to supply +48V phantom power to the associated XLR input. This
phantom power circuit is suitable for most condenser microphones.
These potentiometers control the input level of their associated analog
Mic/Inst/Line input.
This potentiometer controls the master output level of the analog outputs.
This potentiometer controls the output level of the headphone output.
This output jack accepts a standard 1/4 stereo TRS headphone connector.″
