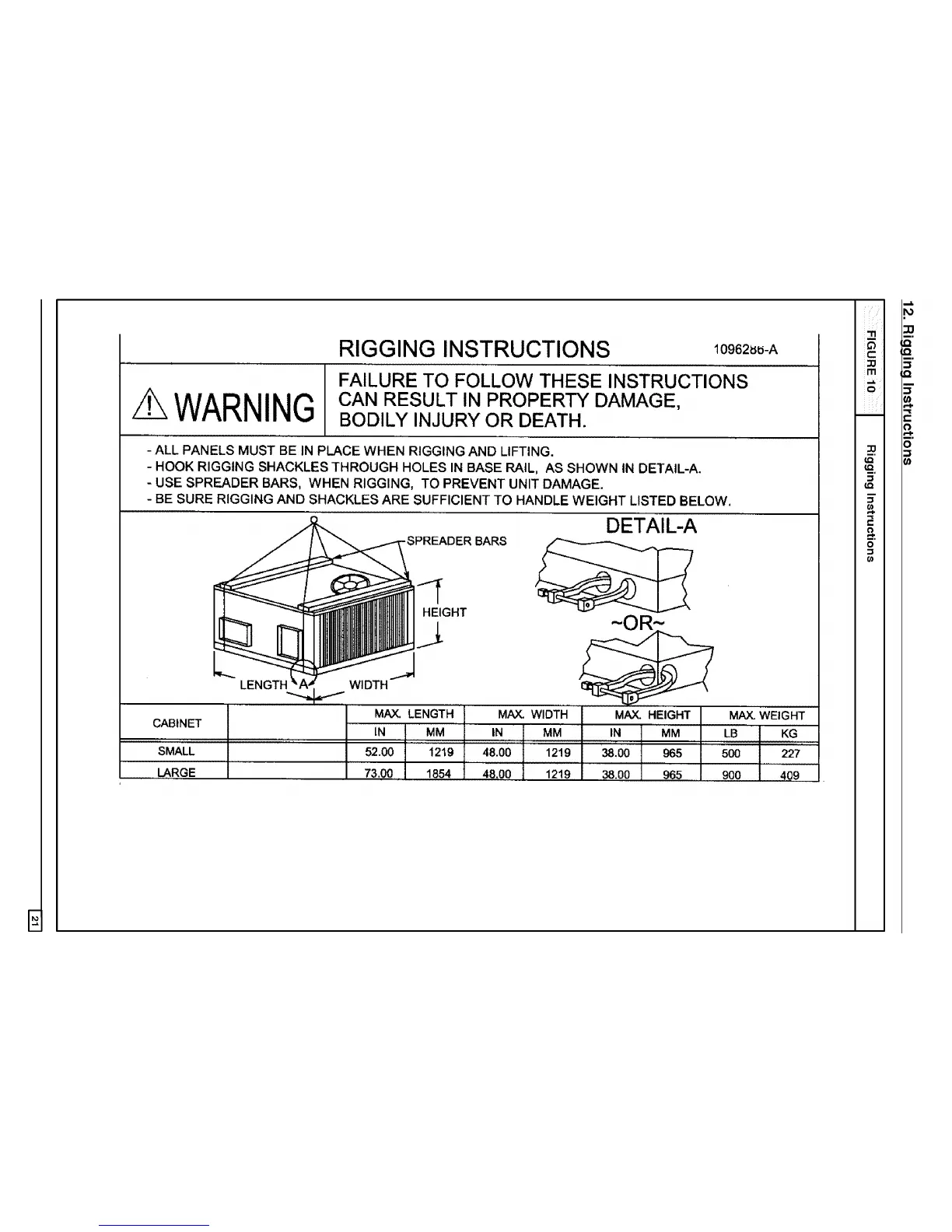

RIGGING INSTRUCTIONS 10962_,,_-A
FAILURE TO FOLLOW THESE INSTRUCTIONS
CAN RESULT IN PROPERTY DAMAGE,
BODILY INJURY OR DEATH.
- ALL PANELS MUST BE IN PLACE WHEN RIGGING AND LIFTING.
- HOOK RIGGING SHACKLES THROUGH HOLES IN BASE RAIL, AS SHOWN IN DETAIL-A.
- USE SPREADER BARS, WHEN RIGGING, TO PREVENT UNIT DAMAGE.
- BE SURE RIGGING AND SHACKLES ARE SUFFICIENT TO HANDLE WEIGHT LISTED BELOW.
____ H'_EIGHT
r..ilillimiili .
LENGTH _,_ WIDTH
MAX. LENGTH
i
IN MM
,,,,,,,,,
.,_,,,
52.00 1219
73.00. 1854
BARS
MAX. WIDTH'
IN MM
48.00 1219
48.00 1219
DETAIL-A
-OR-
MAX, HEIGHT
IN MM
38.00 965
38.00 965
CABINET
SMALL
LARGE
MAX. WEIGHT
LB KG
50O
900 409
C:
rn
0
i
tQ
i.
i
f-
o
m,
o
:3
:D
t_
