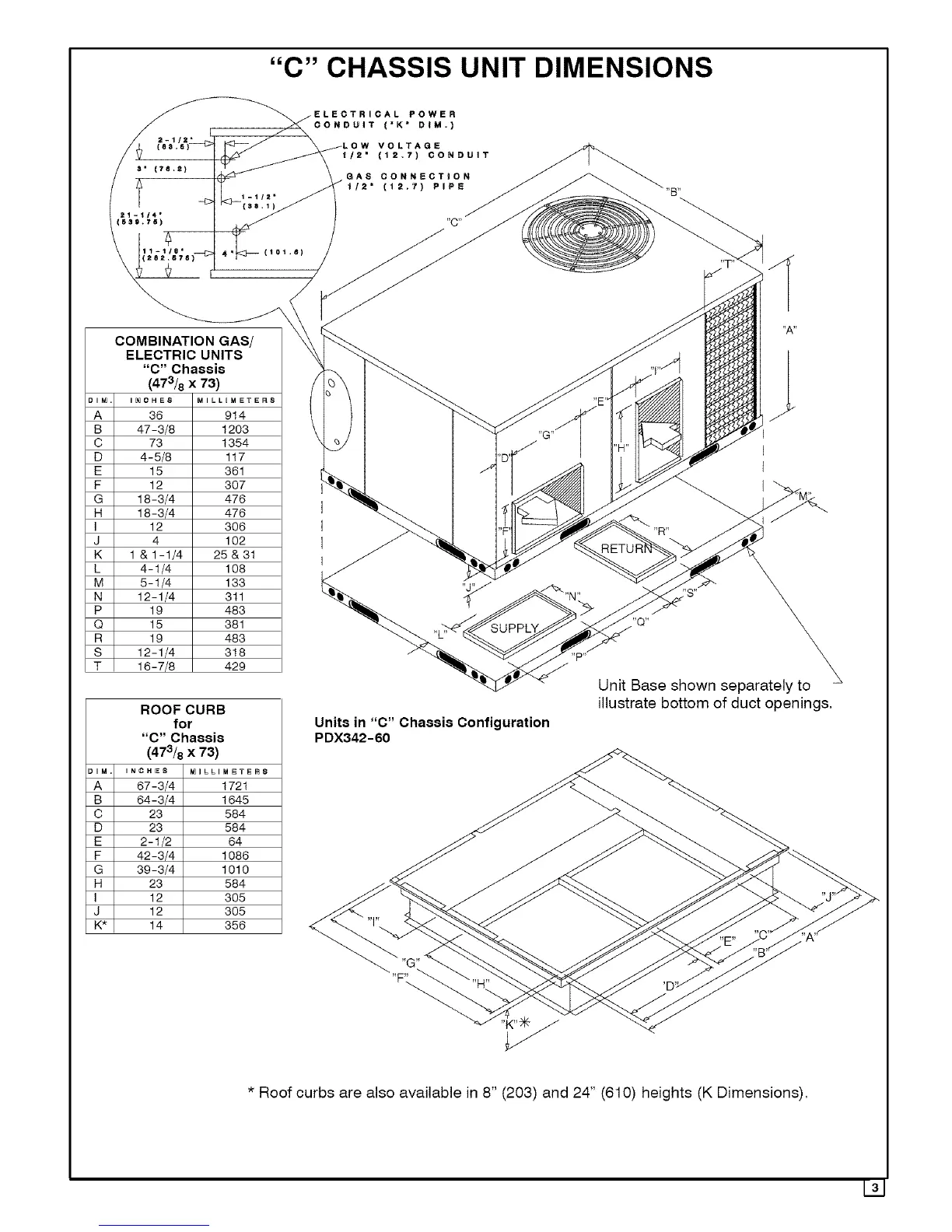

"C" CHASSIS UNIT DIMENSIONS
1/2"
COMBINATION GAS/
ELECTRIC UNITS
"C" Chassis
(473/8 x 73)
DIM INCHES MILLOMETERS
A 36 914
B 47-3/8 1203
C 73 1354
D 4-5/8 117
E 15 361
F 12 307
G 18-3/4 476
H 18-3/4 476
I 12 306
J 4 102
K 1 &1-1/4 25&31
L 4-1/4 108
M 5-1/4 133
N 12-1/4 311
P 19 483
Q 15 381
R 19 483
S 12-1/4 318
T 16-7/8 429
ROOF CURB
for
"C" Chassis
(473/8 x 73)
_IM INCHES MgLLIM_T_RS
A 67-3/4 1721
B 64-3/4 1645
C 23 584
D 23 584
E 2-1/2 64
F 42-3/4 1086
G 39-3/4 1010
H 23 584
I 12 305
J 12 305
K* 14 356
CAL POWER
CONDUIT ('K" DIM.)
VOLTAGE
_/2" (12.7) CONDUIT
GAS CONNECTION
1/2" (12,7) PIPE
,,p,,
Units in "C" Chassis Configuration
PDX342-60
Unit Base shown separately to
illustrate bottom of duct openings,
* Roof curbs are also available in 8" (203) and 24" (610) heights (K Dimensions),
