HOW TO WIRE 3-WAY (OR 2-WAY) VALVE ACTUATOR

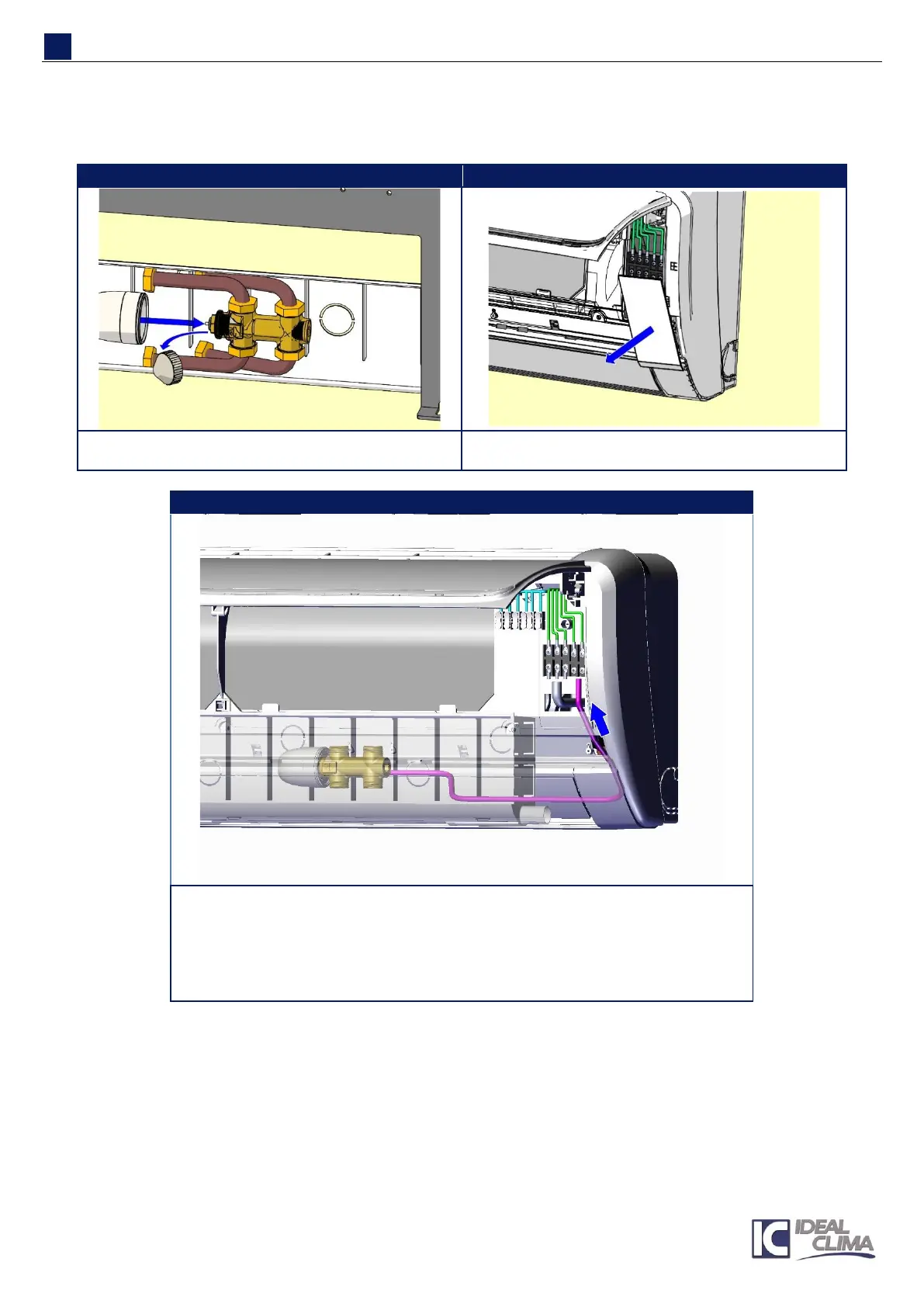

Insert, from the bottom, the electric cable along the same path followed
by the power cord.
Connect live (brown) and neutral (blue) to the terminals of the electrical
box marked by A and B. The auxiliary dry contact, inside actuator (black
wires and grey), allows to send the signal to the boiler / chiller. The contact
is closed when the valve is open,
