INSTALLATION
Ideal Logic + Combi - Installation and Servicing
7 UNPACKING
The boiler is supplied fully assembled in Pack A. A telescopic or non-telescopic ue assembly for rear or side ue outlet in Pack B
is suppled as a separate order.
Unpack and check the contents.

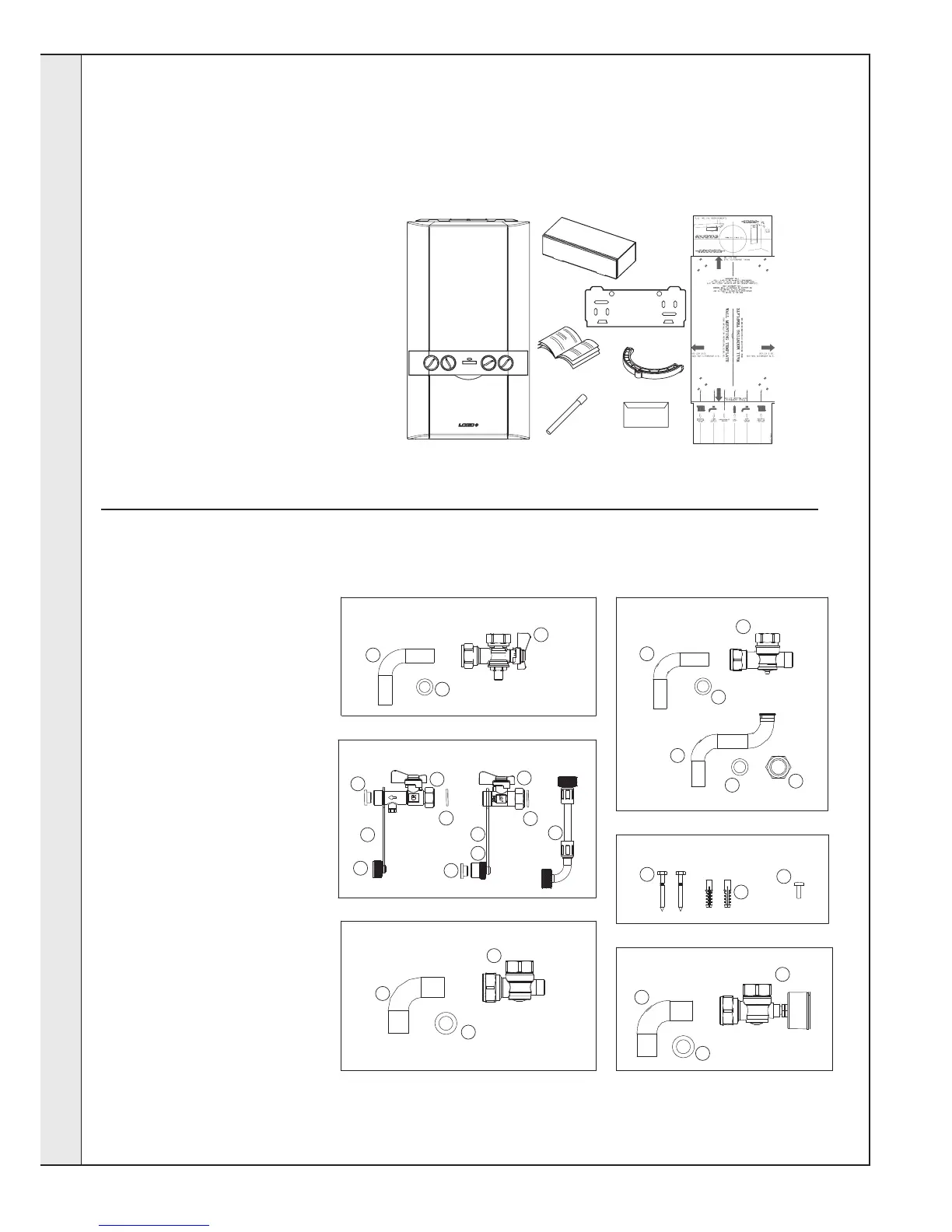

Pack A Contents
A Boiler
B Hardware Pack Box
C Wall Mounting Plate
D These Installation Instructions
E Wall Mounting Template
(located on internal protective packaging)
F Turret Clamp
G Safety Valve Drain Pipe
H Boiler Guarantee & Registration Pack
C
A
D
F
G
B
E
H
Boiler Guarantee
HARDWARE PACK CONTENTS
Gas Valve Pack
1. Pipe - Gas Inlet
2. Washer - Gas (blue)
3. Gas Cock
Filling Loop Pack
1. 3/8" Top Hat Washer (x2)
2. Plastic Chain (x2)
3. 3/8" Blanking Cap (x1)
4. Valve - Dbl Check Filling Loop (x1)
5. 3/8" Fibre Washer (x2)
6. 3/8" Blanking Cap Extended (x1)
7. Valve Filling Loop (x1)
8. Filling Loop with 3/8" Nuts (x1)
Return Valve Pack
1. Pipe CH Return
2. Washer CH
3. Valve Return
DHW Pack
1. Pipe DHW Outlet
2. Valve - Return DHW
3. Washer DHW (x2)
4. Pipe DHW Inlet
5. Nut 1/2"
Accessory Pack
1. Screw (x2)
2. Wallplug (x2)
3. Turret Clamp Screw (x1)
Flow Valve Pack
1. Pipe CH Flow
2. Washer CH
3. Valve Flow (with gauge)
Gas Valve Pack DHW Pack
Accessory Pack
Flow Valve Pack
Return Valve Pack
Filling Loop
1
1
1
1
1
5
2
3
3
3
4
2
2
2
3
2
3
3
1
4
5
5
2
1
2
6
8
7
3
continued . . . . .
INSTALLATION

IDEAL LOGIC + Combi 24 Specifications

General

Model	LOGIC + Combi 24
Category	Boiler
Boiler Type	Combi
Fuel Type	Natural Gas
Output	24 kW
Efficiency	94%
Dimensions	700 x 395 x 278 mm
Warranty	7 years
Max Working Pressure	3 bar
Central Heating Flow Temperature Range	30 - 80 °C
