Fault Finding
Fault Finding Fault Finding Fault Finding Fault Finding Fault Finding
Ideal Logic + Combi - Installation and Servicing

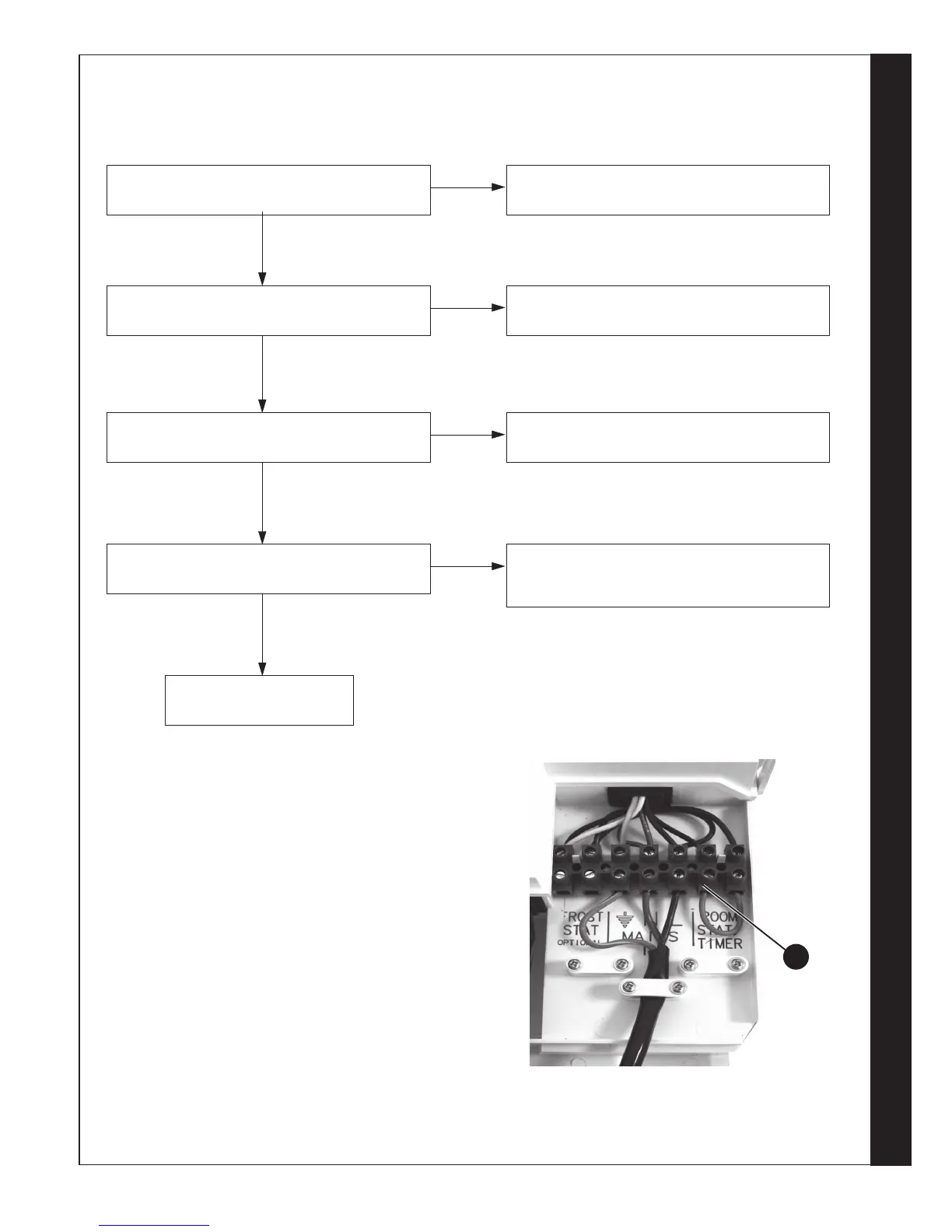

84 NO CH OPERATION BUT DHW WORKS OK
Is the mode knob in the Winter position?
YES
NO
Move the mode knob to the Winter position
Are the Timer and the Room Thermostat switched
on?
YES
NO
Switch the Timer and Room Thermostat On
Are the Radiator Valves Open?
YES
NO
Open the Radiator Valves
Is there 230Vac at (A)?
YES
NO
There is no Voltage from the Timer/Room Stat. This
is not boiler fault. Ensure Voltage is supplied to
boiler by rectifying external wiring.
Replace the Divertor Valve
A

IDEAL LOGIC + Combi 24 Specifications

General

Model	LOGIC + Combi 24
Category	Boiler
Boiler Type	Combi
Fuel Type	Natural Gas
Output	24 kW
Efficiency	94%
Dimensions	700 x 395 x 278 mm
Warranty	7 years
Max Working Pressure	3 bar
Central Heating Flow Temperature Range	30 - 80 °C
