IDEAL TILT-A WAY HYJG 1 User Manual

24
IDEAL MANUFACTURING INC.
1
REQ NO
Photo Eye 24-VDC
DESCRIPTION
PEO454 (set)
2
1
REF NO.
PART NO.
PEO455
Hood ( not shown)
TILT-A-WAY HYJG 1
REFLECTIVE TYPE PHOTO EYE
2
HYJG-216

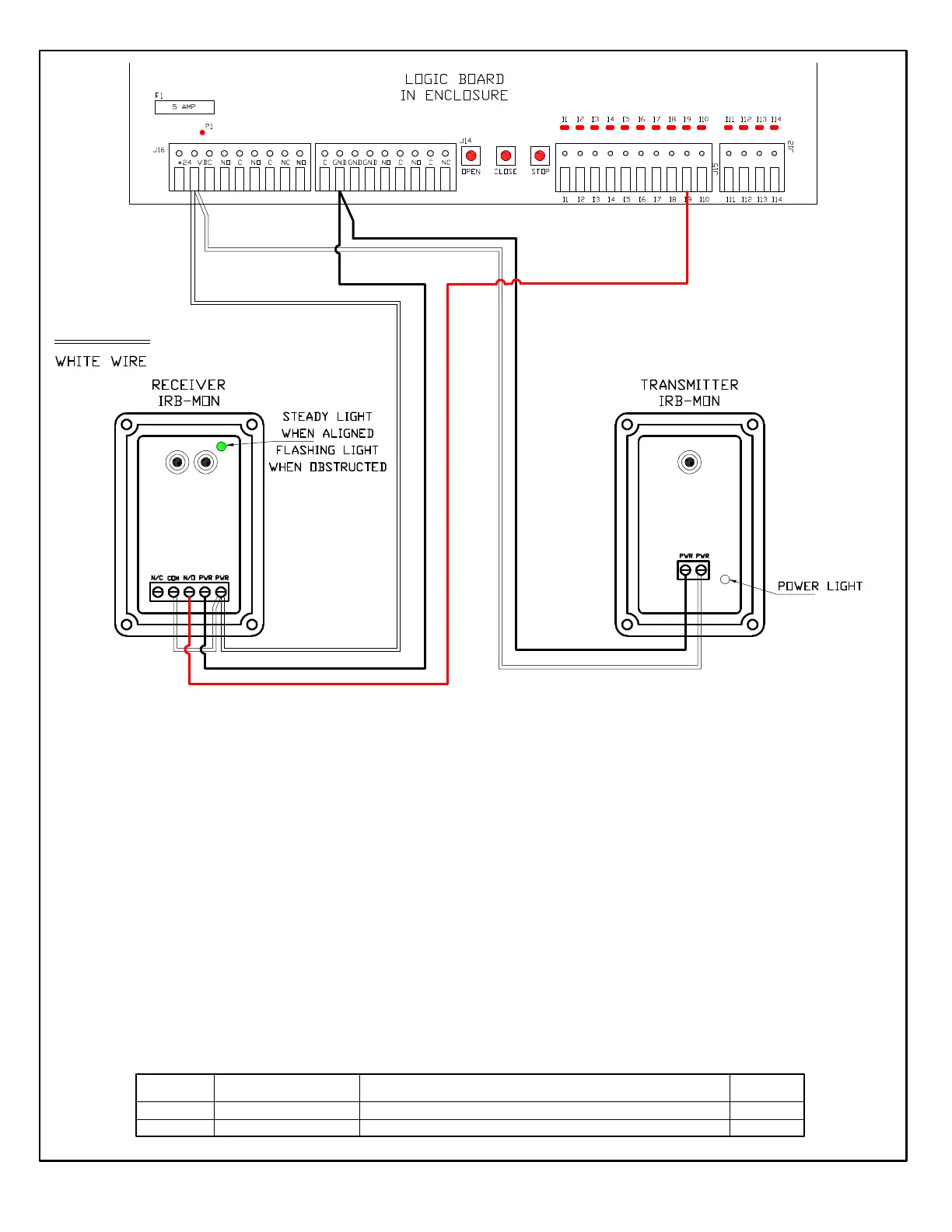

THE RECEIVER N/O CONTACT IS CONNECTED TO TERMINAL I9 ON THE LOGIC BOARD.
FOR THE PHOTO EYE TO ACT AS A SAFETY AUXILIARY #1 INPUT FUNCTION ASSIGNMENT WILL BE SET TO
"REVERSE OPEN LOOP"
PRESS AND HOLD BUTTON SW2 ON THE INTERFACE BOARD UNTIL DISPLAY CHANGES THEN RELEASE THE BUTTON
PRESS BUTTON SW4 AND RELEASE UNTIL THE DISPLAY SHOWS
"TIMING AND OPTIONS"
PRESS AND RELEASE BUTTON SW1 TO ENTER THE MENU THE DISPLAY WILL CHANGE TO
"TIMINGS AND OPTIONS"
"BASIC SETTINGS"
CONTINUE TO PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY SHOWS
"TIMINGS AND OPTIONS"
"AUXILIARY I / O"
PRESS AND RELEASE BUTTON SW1 TO ENTER THE SUBMENU THE DISPLAY WILL SHOW
"AUXILIARY # 1 INPUT FUNCTION ASSIGNMENT"
PRESS AND RELEASE BUTTON SW1 TO ENTER
PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY SHOWS
"REVERSE OPEN LOOP"
PRESS AND RELEASE BUTTON SW1 TO SAVE
PRESS AND RELEASE BUTTON SW2 UNTIL YOU EXIT ALL MENUS
THE GATE WILL STOP AND REVERSE WHEN CLOSING TO FULL OPEN AND SET THE AUTO CLOSE TIMER
