IDEAL TILT-A WAY HYJG 1 User Manual

12 VOLT DC
HYJG 1
TILT-A-WAY
Pole Mount Base
Light Module - Green - Steady 12 VDC
IDEAL MANUFACTURING INC.
PART NO.
2
PEO368
4
3
PEO366
REF.
NO.
1
Light Module - Red - Steady 12 VDC
25
DESCRIPTION
Light Module - Amber - Flashing 12 VDC
HYJG-217
1
1
REQ.
NO.
PEO369
Single Tone Sound Module (not shown) (Optional) 12 VDC
Incandescent Lamp (not shown) (replacement) 12 VDC
PEO370
1
PEO367
PEO360
WHITE WIRE
TILT-A-WAY HYJG

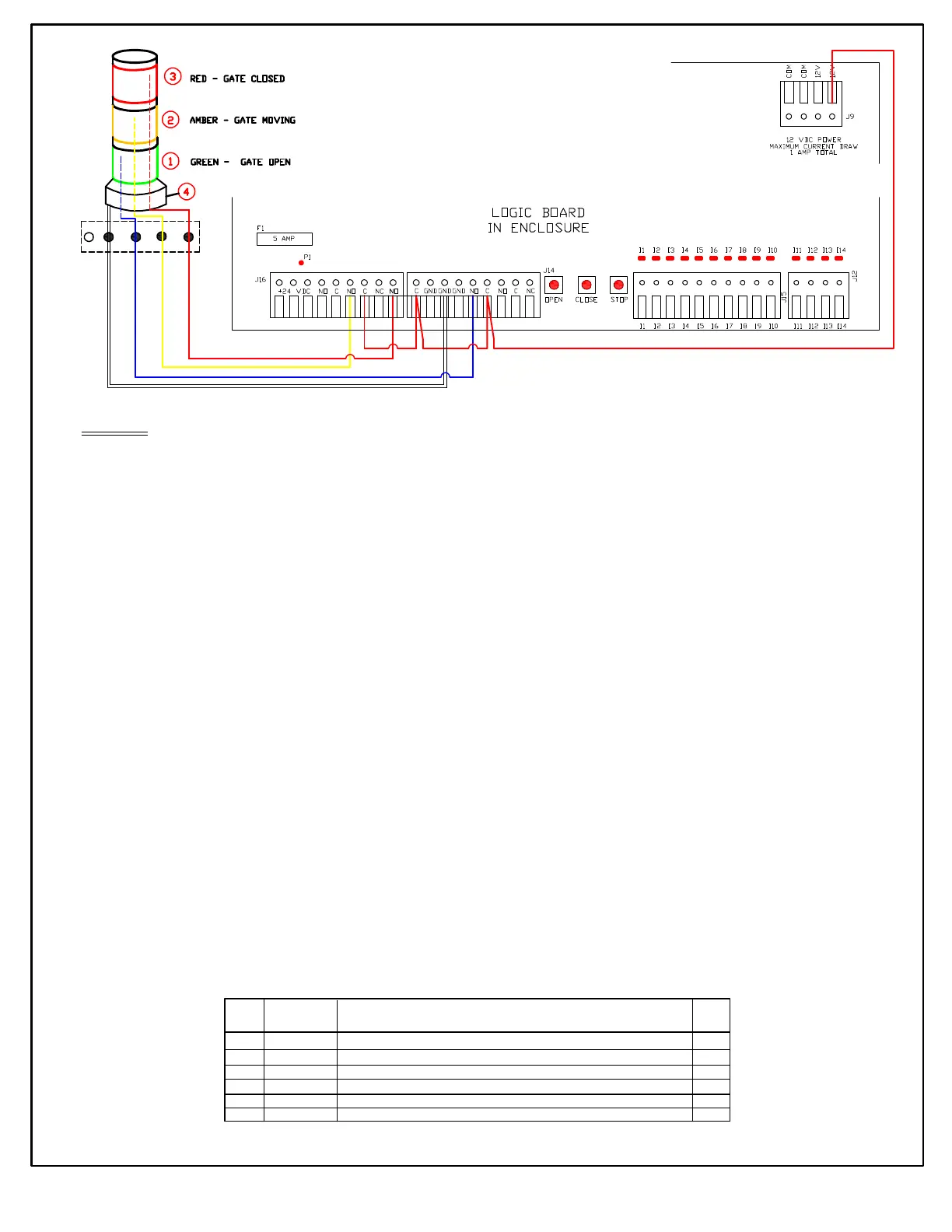

24 VOLT DC SAFETY WARNING LIGHTS ARE CONNECTED TO THE NORMALLY OPEN CONTACTS
RED LIGHT "GATE CLOSED" IS CONNECTED TO AUXILIARY OUTPUT # 1
AMBER LIGHT "GATE MOVING" IS CONNECTED TO PREWARN OUTPUT
GREEN LIGHT "GATE OPEN" IS CONNECTED TO AUXILIARY OUTPUT # 2
THE OUTPUT FUNCTIONS FOR AUXILIARY OUTPUT # 1 AND # 2 NEED TO BE SET AS FOLLOWED
PRESS AND HOLD BUTTON SW2 ON THE INTERFACE BOARD UNTIL THE DISPLAY CHANGES
RELEASE THE SW2 BUTTON AND THE DISPLAY WILL SHOW
MAIN MENU
UP / DOWN - VIEW MENUS
SELECT - VIEW / EDIT
RESET - EXIT
PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY SHOWS
TIMING AND OPTIONS
PRESS AND RELEASE BUTTON SW1 TO ENTER THE MENU
PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY SHOWS
AUXILIARY I / O
PRESS AND RELEASE BUTTON SW1 TO ENTER THE SUBMENU
PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY SHOWS
AUXILIARY OUTPUT # 1 FUNCTION
PRESS AND RELEASE BUTTON SW1 TO ENTER THE SUBMENU
PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY SHOWS
HOLD AUX RELAY ON CLOSE LIMIT SWITCH
PRESS AND RELEASE BUTTON SW1 TO SAVE SELECTION
PRESS AND RELEASE BUTTON SW2 TO EXIT SUBMENU
PRESS AND RELEASE BUTTON SW4 UNTIL DISPLAY SHOWS
AUXILIARY OUTPUT # 2 FUNCTION
PRESS AND RELEASE BUTTON SW1 TO ENTER THE SUBMENU
PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY SHOWS
HOLD AUX RELAY ON OPEN LIMIT SWITCH
PRESS AND RELEASE BUTTON SW1 TO SAVE SELECTION
PRESS AND RELEASE BUTTON SW2 UNTIL YOU HAVE EXITED ALL MENUS
6-15-2015
SAFETY WARNING LIGHT
