IDEAL TILT-A WAY HYJG 1 User Manual

IDEAL MANUFACTURING INC.
52
HYJG-230
TILT-A-WAY HYJG 1

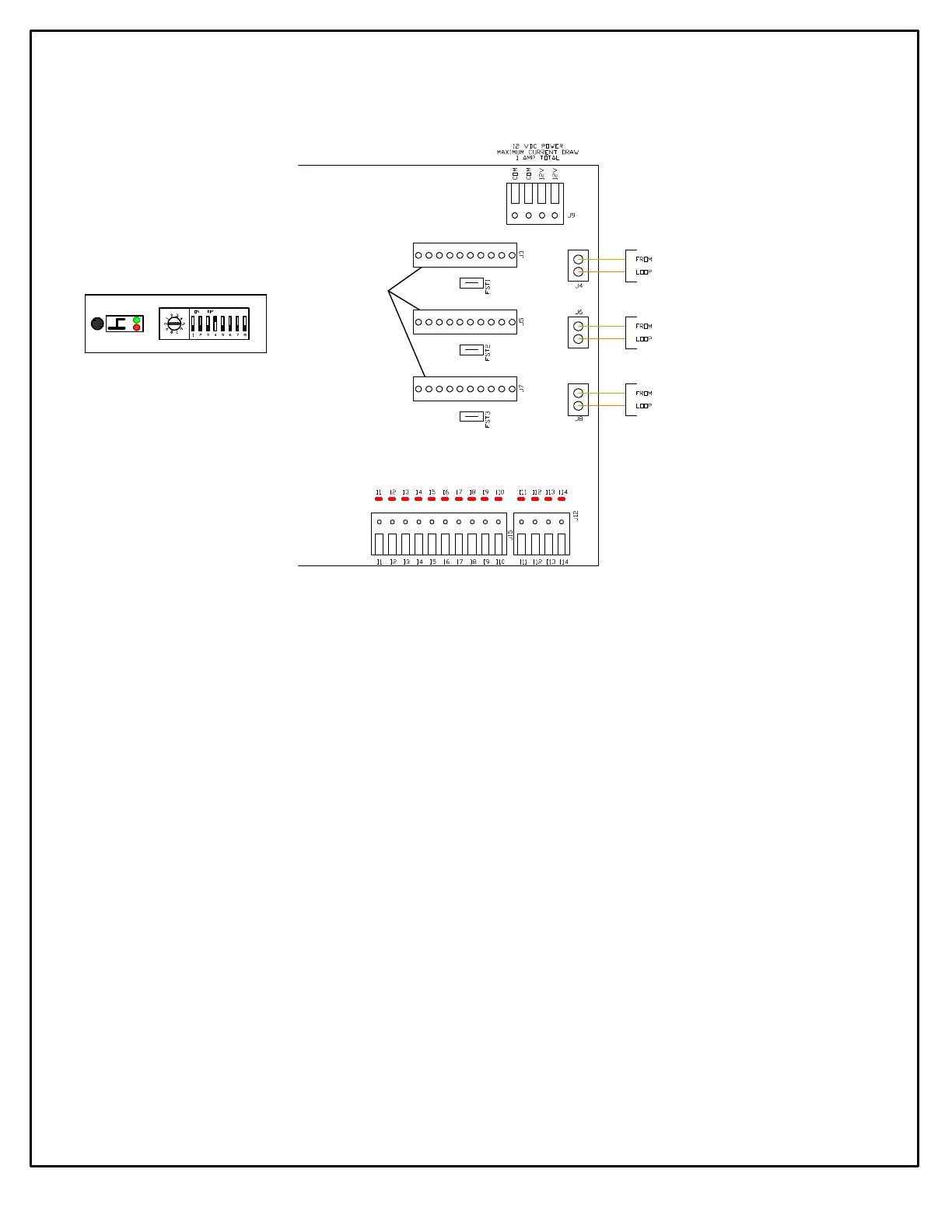

LOOP DETECTOR SOCKET DIAGRAM
3/24/2016
LOGIC BOARD
TILT-A-WAY HYJG
THERE ARE THREE LOOP SLOTS J3, J5, AND J7 THAT CAN BE PROGRAMMED FOR SEVERAL DIFFERENT FUNCTIONS
LOOP SLOT DISABLED / SAFETY LOOP / FREE EXIT LOOP / SHADOW LOOP / ARMING LOOP
TO ACCESS THESE FUNCTIONS PRESS AND HOLD BUTTON SW2 ON THE INTERFACE BOARD FOR ABOUT 4 SECONDS
UNTIL THE DISPLAY CHANGES TO SHOW
MAIN MENU
UP / DOWN - VIEW MENUS
SELECT - VIEW / EDIT
RESET - EXIT
PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY CHANGES TO
TIMING AND OPTIONS
PRESS AND RELEASE BUTTON SW1 TO ENTER THIS MENU
PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY SHOWS
LOOP AND REMOTE ASSIGNMENT
PRESS AND RELEASE BUTTON SW1 TO ENTER SUBMENU
THE DISPLAY WILL SHOW
LOOP FUNCTIONALITY ASSIGNMENT J3 SLOT
USE BUTTON SW4 TO SCROLL THRU THE SUBMENU UNTIL THE SLOT THAT YOU WANT TO ACCESS IS SHOW
PRESS AND RELEASE BUTTON SW1 TO ENTER
USE BUTTON SW4 TO SCROLL THRU THE FUNCTION ASSIGNMENTS UNTIL THE DESIRE FUNCTION IS SHOW
PRESS AND RELEASE BUTTON SW1 TO SAVE
USE BUTTON SW4 TO CHANGE TO THE NEXT LOOP SLOT TO BE PROGRAMMED AND REPEAT
TO ASSIGN FUNCTIONS TO ALL SLOTS USED
WHEN ALL SLOTS HAVE BEEN PROGRAMMED PRESS AND RELEASE BUTTON SW2 TO EXIT SUBMENU
REPEAT UNTIL YOU HAVE EXITED ALL MENUS
SAFETY LOOP WILL STOP AND REVERSE A CLOSING GATE, AND HOLD AN OPEN GATE OPEN UNTIL CLEARED
FREE EXIT WILL OPEN A CLOSED GATE AND STOP AND REVERSE A CLOSING GATE AND HOLD IT OPEN UNTIL CLEARED
SHADOW LOOP WILL HOLD OPEN A FULLY OPENED GATE UNTIL CLEARED
ARMING LOOP WILL LATCH AN AUXILIARY OUTPUT RELAY IF THE AUXILIARY OUTPUT RELAY FUNCTION
HOLD AUX RELAY ON ARMING LOOP ASSERTION HAS BEEN SELECTED IN THE AUXILIARY I / O SUBMENU IN
TIMING AND OPTIONS MENU
PLUG IN DETECTOR
AS PICTURED
BE SURE POWER IS OFF
BEFORE PLUGGING IN
LOOP SLOTS
