IDEAL TILT-A WAY HYJG 1 User Manual

HYJG-227
35
IDEAL MANUFACTURING INC.
1
REQ NO
DESCRIPTION
2
3
1
REF NO.
PART NO.
PEO606A
PEO678
Vehicle Indiacator Light ( supplied by customer)
Socket, Relay
Relay

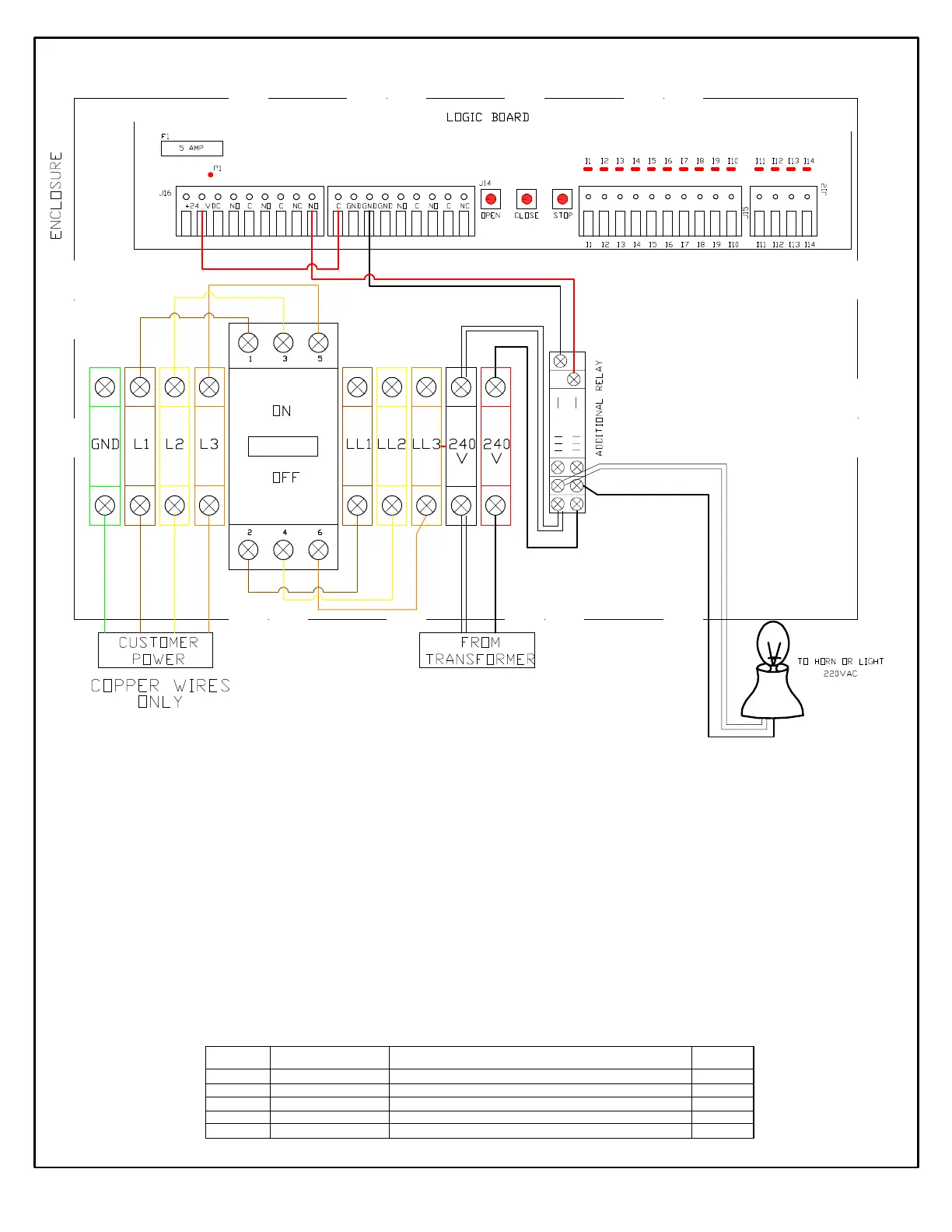

TILT-A-WAY HYJG 480 VAC THREE PHASE
GATE OPEN HORN AND LIGHT INDICATOR
1
1
TILT-A-WAY HYJG
THE ADDITIONAL RELAY IS CONNECTED TO THE NORMALLY OPEN CONTACTS OF AUXILIARY OUTPUT # 1
THE OUTPUT FUNCTIONS FOR AUXILIARY OUTPUT # 1 WILL NEED TO BE SET AS FOLLOWED
PRESS AND HOLD BUTTON SW2 ON THE INTERFACE BOARD UNTIL THE DISPLAY CHANGES
RELEASE THE SW2 BUTTON AND THE DISPLAY WILL SHOW
MAIN MENU
UP / DOWN - VIEW MENUS
SELECT - VIEW / EDIT
RESET - EXIT
PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY SHOWS
TIMING AND OPTIONS
PRESS AND RELEASE BUTTON SW1 TO ENTER THE MENU
PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY SHOWS
AUXILIARY I / O
PRESS AND RELEASE BUTTON SW1 TO ENTER THE SUBMENU
PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY SHOWS
AUXILIARY OUTPUT # 1 FUNCTION
PRESS AND RELEASE BUTTON SW1 TO ENTER THE SUBMENU
PRESS AND RELEASE BUTTON SW4 UNTIL THE DISPLAY SHOWS
HOLD AUX RELAY ON CLOSE LIMIT SWITCH
PRESS AND RELEASE BUTTON SW1 TO SAVE SELECTION
PRESS AND RELEASE BUTTON SW2 UNTIL YOU HAVE EXITED ALL MENUS
6-16-2015
