IDEAL TILT-A WAY HYJG 1

1 1
2 2
3 3
4 4
A A B B C C D D
SHEET 1 OF 1
DRAWN CHECKED QA MFG APPROVED T Henry
12/7/2015 3/24/2016
DWG NO HYJG-243

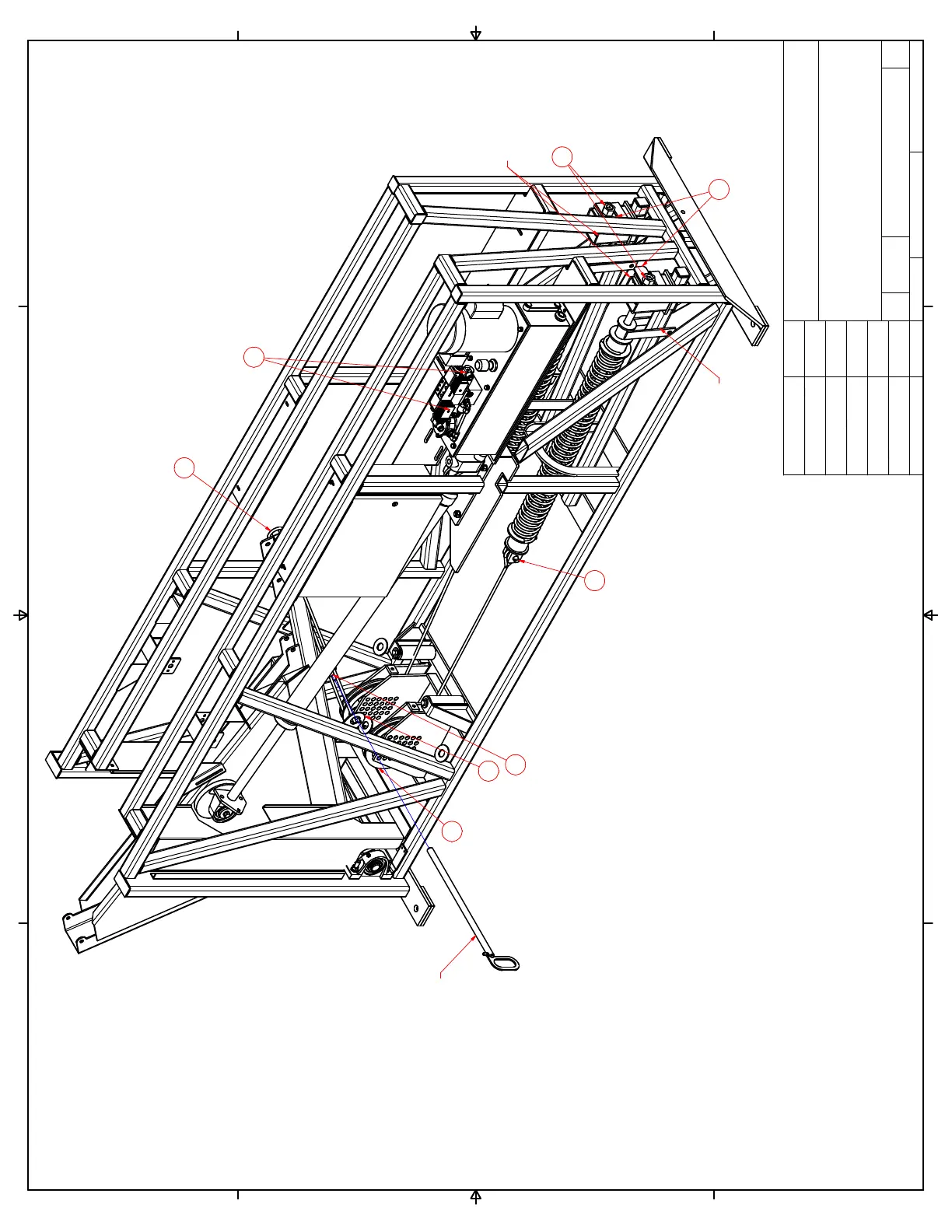

TITLE HYJG 1 SPRING REPLACEMENT
SIZE
C
SCALE
Ideal Mfg., Inc.
REV
2011 Harnish Blvd.
Billings MT 59101
Tel. (406) 656-4360
1
2
3
4
6
5
7
8
SAFETY ROD
PAINT MARK
SAFETY SWITCH
SPRING, CABLE, AND SHEAVE
REPLACEMENT INSTRUCTIONS
BARRIER NOT SHOWN
SOME FRAME TUBE REMOVED
FOR CLARITY
