IDEAL Vogue S15

14
INSTALLATION
vogue system boiler - Installation and Servicing

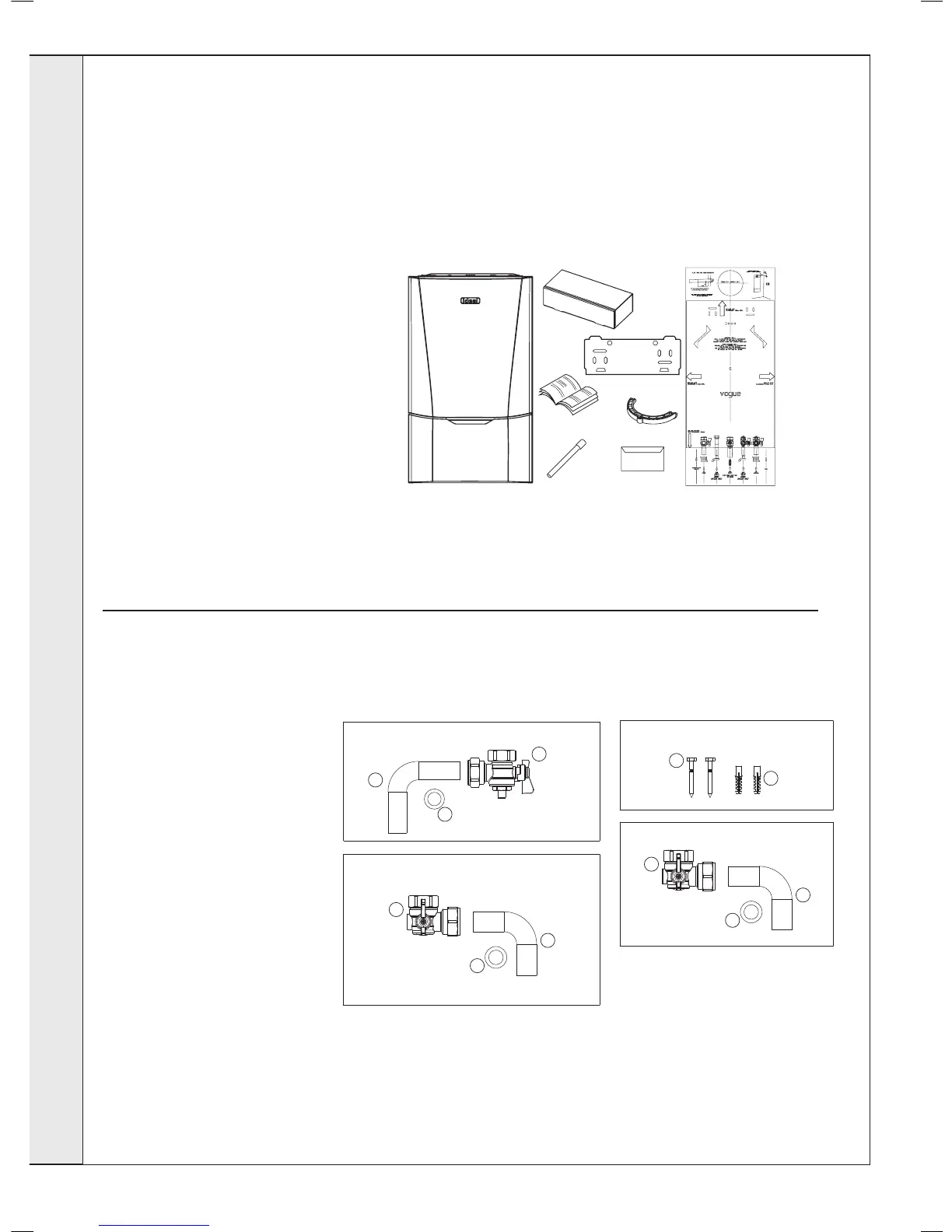

6 UNPACKING
The boiler is supplied fully assembled in Pack A. A telescopic or non-telescopic ue assembly for rear or side ue outlet, in Pack
B is supplied as a separate order.
Unpack and check the contents.
Pack A Contents
A Boiler
B Hardware Pack Box
C Wall Mounting Plate
D These Installation Instructions
E Wall Mounting Template
(located on internal protective packaging)
F Turret Clamp
G Pressure Relief Valve Drain Pipe
H Boiler Guarantee & Registration Pack
C
A
D
F
G
B
E
H
Boiler Guarantee
HARDWARE PACK CONTENTS
Gas Valve Pack
1. Pipe - Gas Inlet
2. Washer - Gas (blue)
3. Gas Cock
Return Valve Pack
1. Pipe CH Return
2. Washer CH
3. Valve Return
Accessory Pack
1. Screw (x2)
2. Wallplug (x2)
Flow Valve Pack
1. Pipe CH Flow
2. Washer CH
3. Valve Flow (with gauge)
Gas Valve Pack
Accessory Pack
Flow Valve Pack
Return Valve Pack
1
1
1
3
2
2
2
3
1
3
2
continued . . . . .
