IDEAL Vogue S15

15
INSTALLATION
vogue system boiler - Installation and Servicing

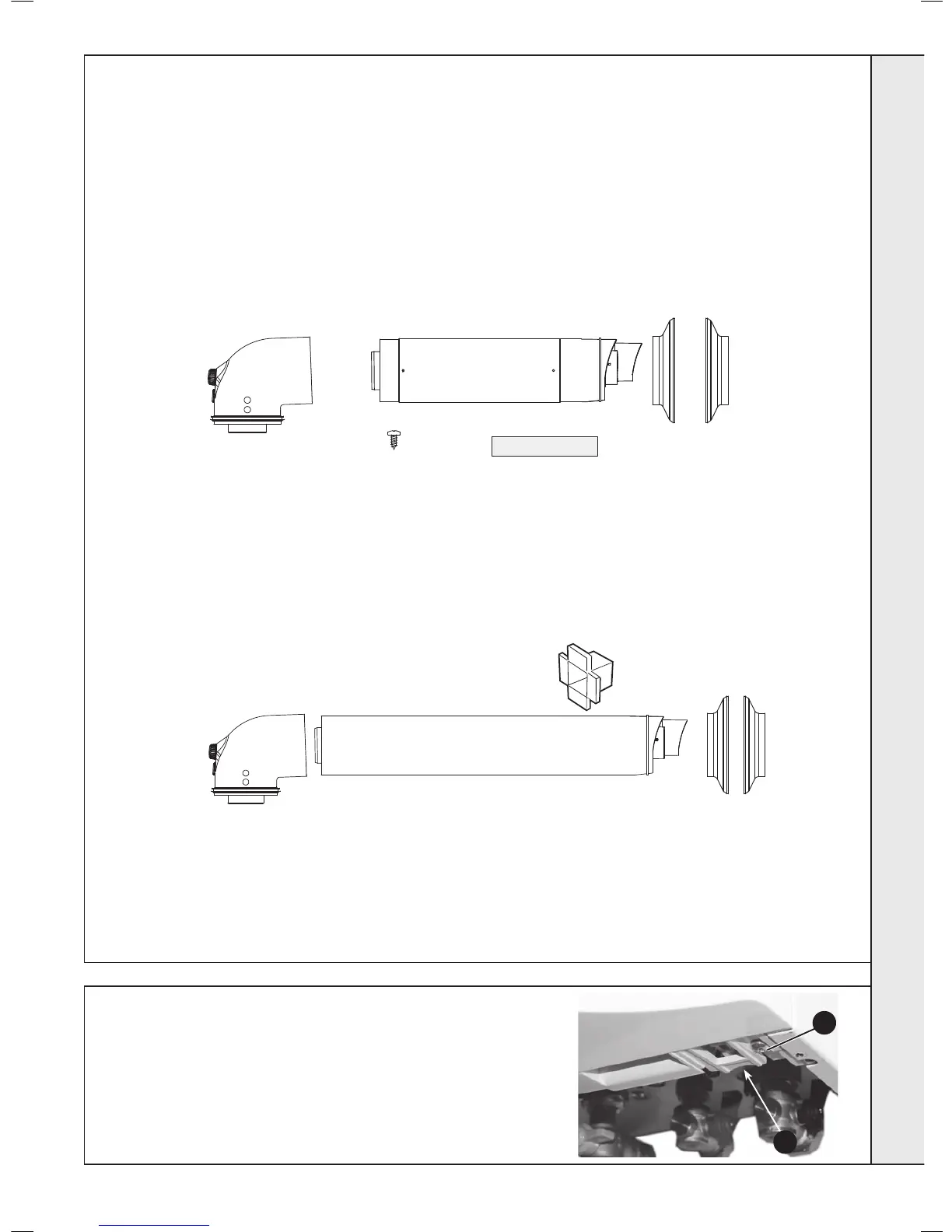

Pack B Contents Telescopic
A Telescopic Flue Terminal
B Flue Turret
C Rubber Terminal Wall Seal
D Screw
E Sealing Tape
F Wall Seal (White)
D
C
A
E
F
B
Pack B Contents Non-Telescopic
A Flue Terminal
B Flue Turret
C Rubber Terminal Wall Seal
D Cutting Aid
E Wall Seal (White)
A
D
B
CE
7 UNPACKING CONT’D
8 FRONT PANEL REMOVAL
1. Loosen the 2 screws retaining the front panel at the
bottom.
2. Release catches at rear of door by pulling
downwards.
3. Pull the underside front panel forward then lift
upwards to remove.
1
2
INSTALLATION
