5. Installation

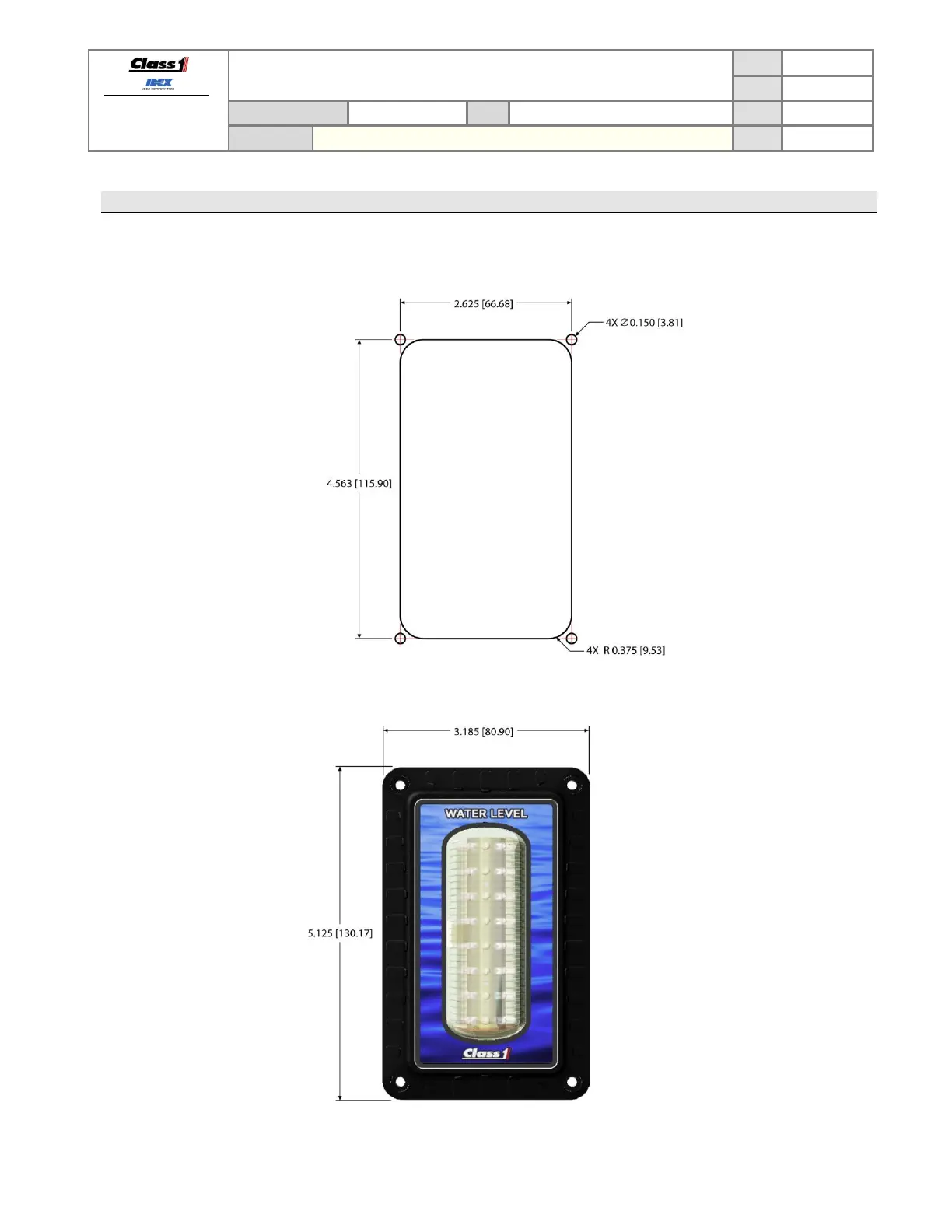

5.1. Cutout dimensions
The display requires a cutout as shown. The display is water tight and may be mounted in any location on the
operator’s panel.
Unit of scale: inches [millimeters]
5.2. Outer bezel dimensions
Unit of scale: inches [millimeters]
