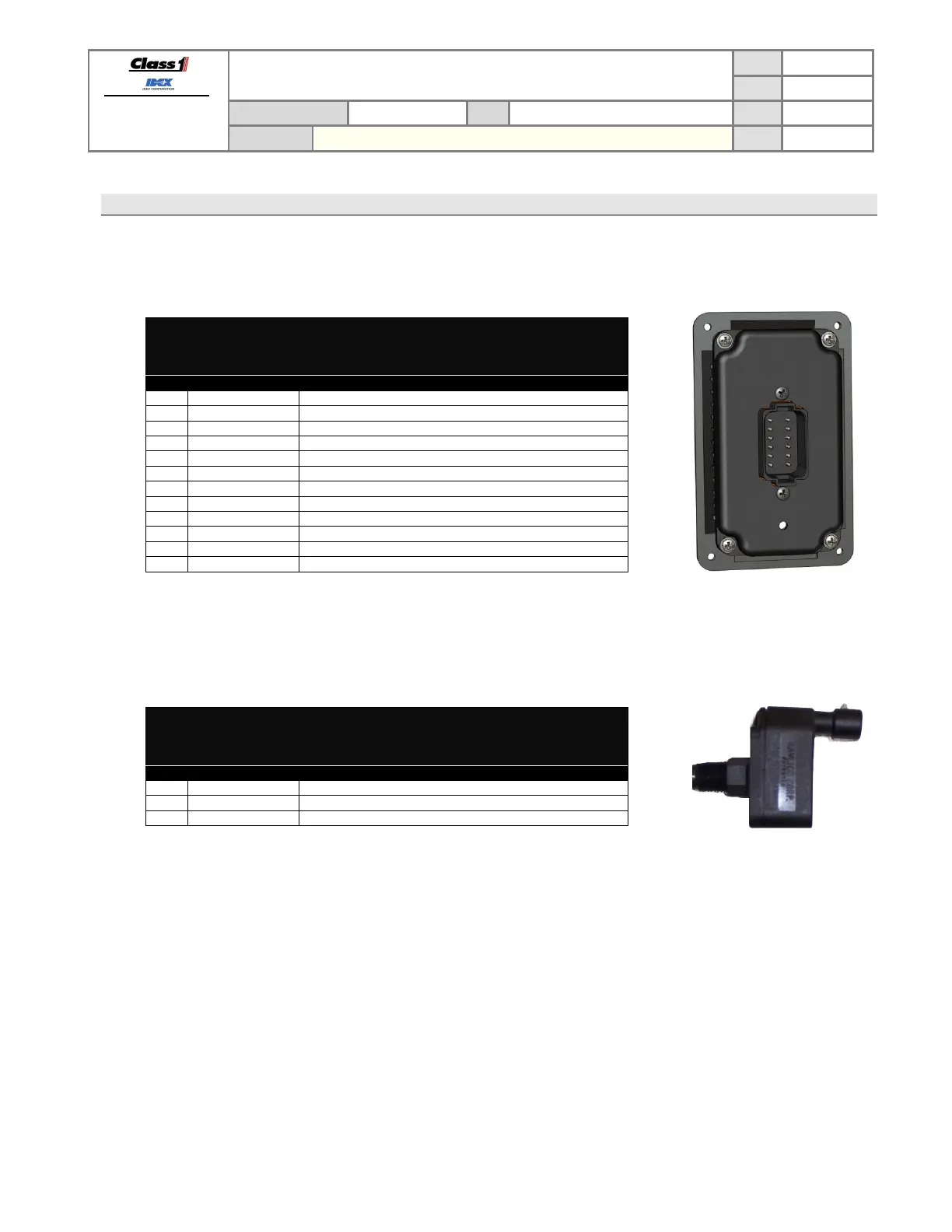

6. Wiring
6.1. ITL40 connector
The ITL40 has one connector and the following definitions apply:
Mating connector: Deutsch DT06-12SB BLACK
Mating sockets: Deutsch 0462-201-16141
Wedge lock: W12S Recommended wire gage: 16-18 AWG
PIN
CIRCUIT
DESCRIPTION
1
SUPPLY (+)
(INPUT) – battery voltage (+9VDC…+32VDC)
2
CAN HIGH
(DATA) – SAE J1939 CAN 2.0B, 250Kbits/s
3
CAN SHIELD
(DATA) – SAE J1939 CAN 2.0B, 250Kbits /s
4
DIM DISPLAY
(INPUT) – Dim display input (positive polarity)
5
Sensor REF
(OUTPUT) – pressure sensor supply (+5VDC)
6
Sensor SIGNAL
(INPUT) – pressure sensor signal (+0.5VDC to +4.5VDC)
7
Sensor GND
(OUTPUT) – pressure sensor ground
8
AUX Output
(OUTPUT) – ground .250 Amps (Auto Fill Version only)
9
1-WIRE SIG
(DATA) – Class 1proprietary communication
10
GROUND
(OUTPUT) – common ground
11
CAN LOW
(DATA) – SAE J1939 CAN 2.0B, 250Kbits /s
12
SUPPLY (-)
(INPUT) – battery ground
6.2. Pressure sensor connector
The pressure sensor has one connector and the following definitions apply:
Mating connector: Packard Metri-Pack 150 series, 12047909
Mating sockets: Packard Metri-Pack 150 series, 12103881
Recommended wire gage: 18-20 AWG
PIN
CIRCUIT
DESCRIPTION
A
SUPPLY (+)
(INPUT) – pressure sensor supply (+5VDC)
B
SUPPLY (-)
(INPUT) – pressure sensor ground
C
Signal
(OUTPUT) – pressure sensor signal (+0.5VDC to +4.5VDC)
