6.3. Communication wiring examples
The ITL40 display can be set up to use the 1-wire or CAN communication methods. The simplest system would be
comprised of a single ITL40 MASTER display.

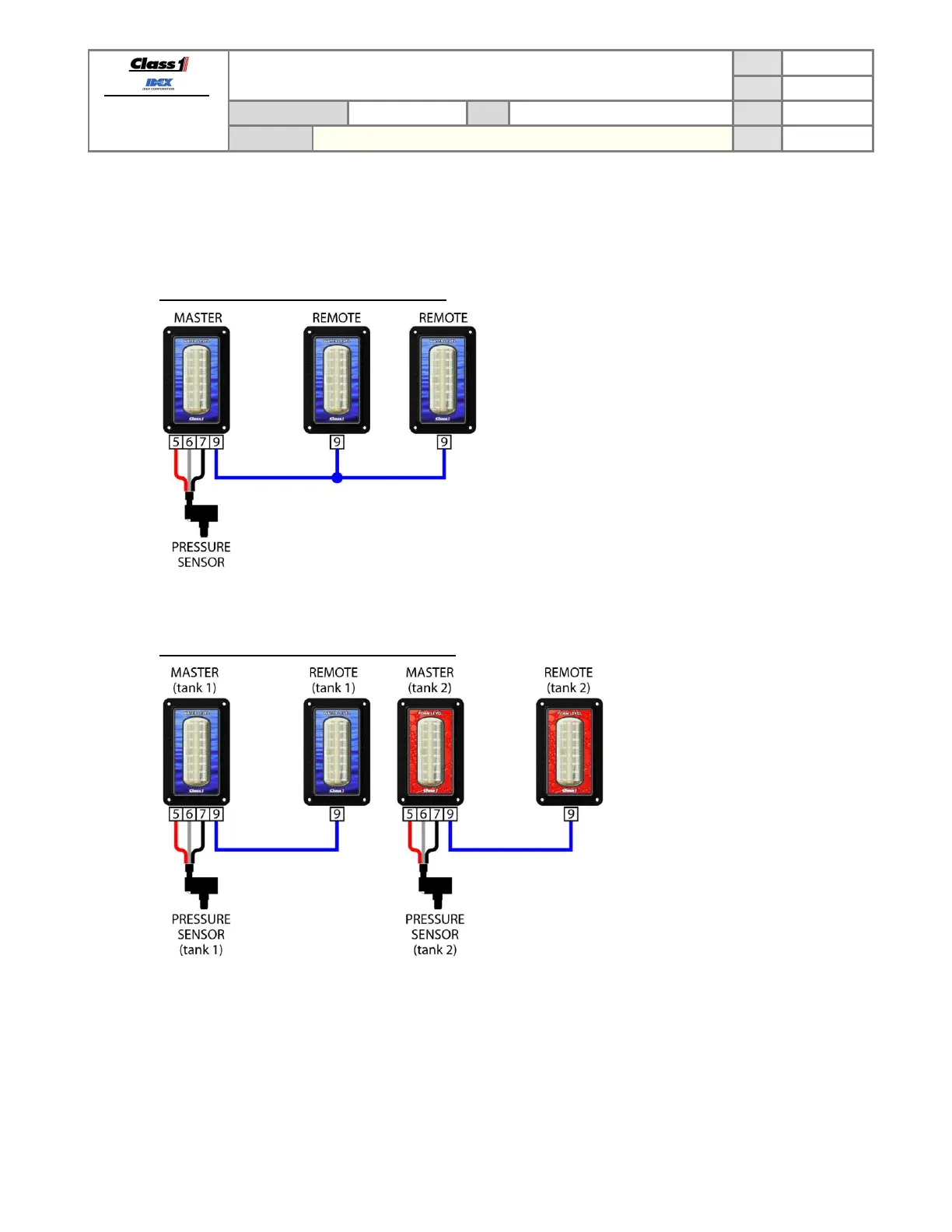

6.3.1. 1-wire method, 1 MASTER and 2 REMOTES
System configured with 1-wire communication method. Make certain that the ground for each display is tied to a
common point or the REMOTE displays will not receive communication data from the MASTER display.
6.3.2. 1-wire method, 2 MASTERS and 2 REMOTES
System configured with 1-wire communication method. Make certain that the two MASTER 1-wire data lines are
not connected and that the ground for each display is tied to a common point or the REMOTE displays will not
receive communication data from their associated MASTER display.
