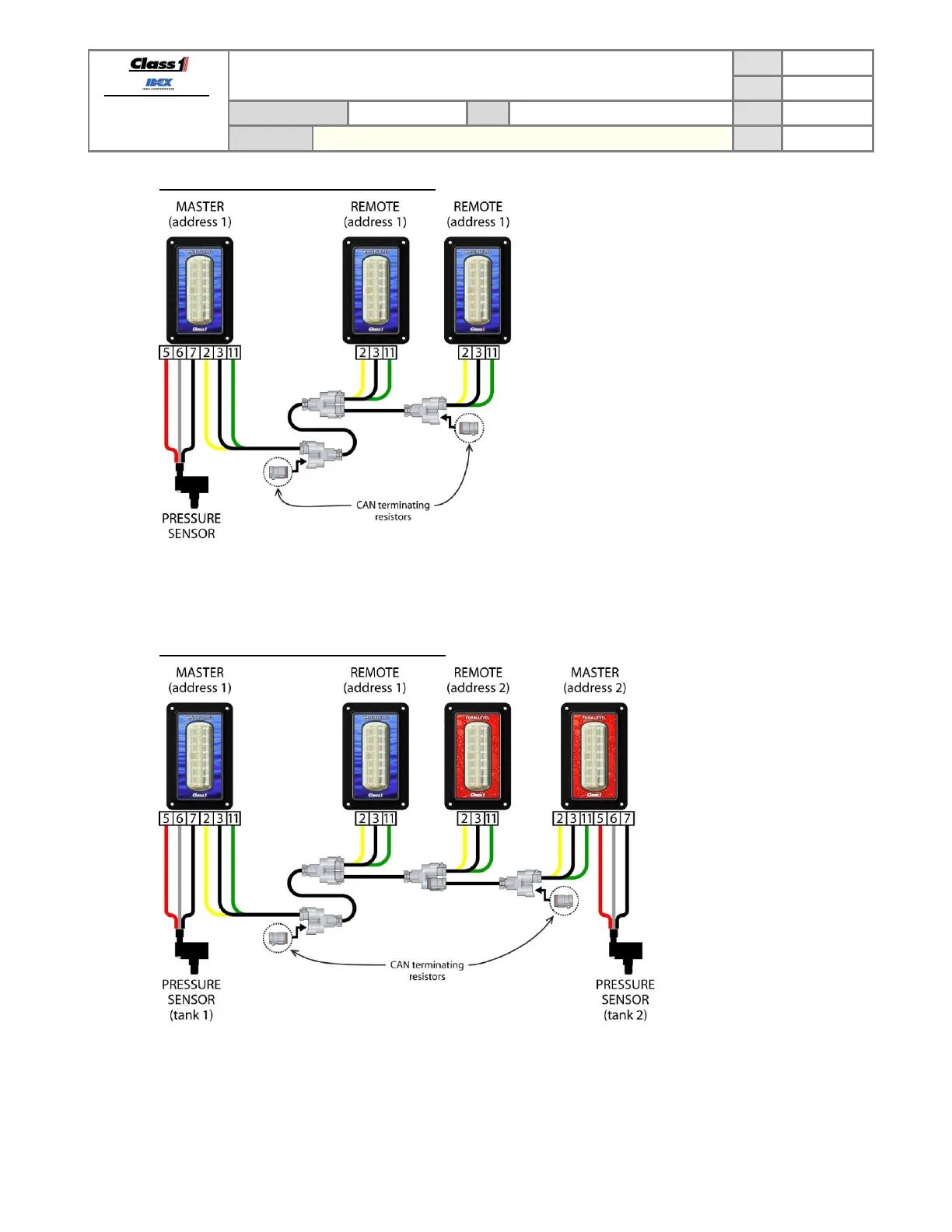

6.3.3. CAN method, 1 MASTER and 2 REMOTES
System configured with CAN communication method. This example shows one MASTER display (configured with
address 1) communicating with 2 REMOTE displays (configured with address 1).
Two CAN terminating resistors (p/n DT06-3S-P006) are required in the system (one at each end of the CAN bus).
6.3.4. CAN method, 2 MASTERS and 2 REMOTES
System configured with CAN communication method. This example shows two MASTER displays (configured
with address 1 and address 2) communicating with 2 REMOTE displays (configured with address 1 and address 2).
REMOTE display address 1 only follows the indications of MASTER display address 1, and REMOTE display
address 2 only follows the indications of MASTER display address 2.
Two CAN terminating resistors (p/n DT06-3S-P006) are required in the system (one at each end of the CAN bus).
