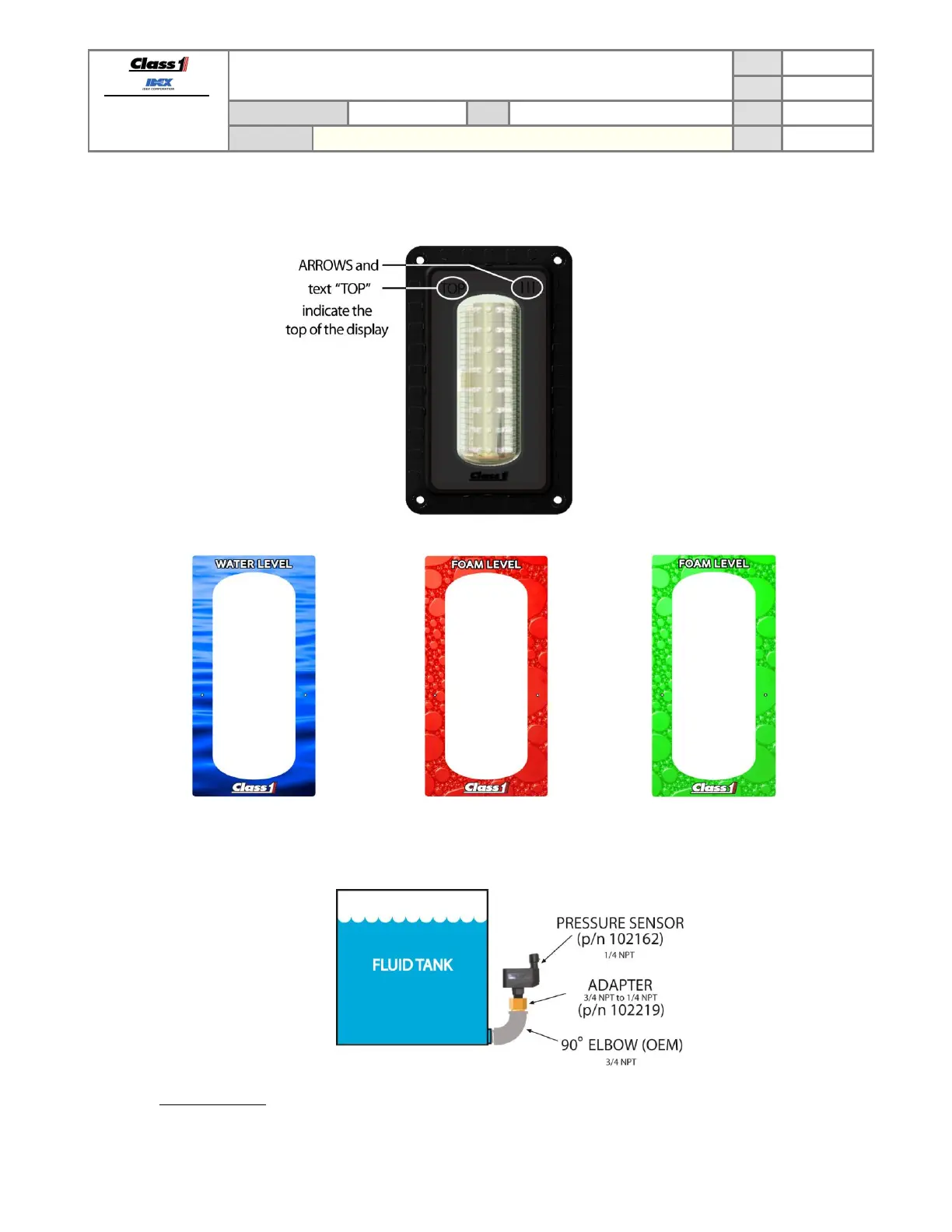

5.3. Label orientation
Before mounting the display and adhering the label insure that the display is situated correctly (TOP is UP). Refer to
the drawing for orientation.
p/n 117691
p/n 117692
p/n 117693
5.4. Pressure sensor
The pressure sensor (p/n 102162) is threaded for ¼” NPT and must be mounted vertically as depicted to insure an
accurate reading.
5.4.1. Approved fluids
The pressure sensor has been tested and approved for water and Class A and B foams.
