CardioPet* App for Android Mobile Device 25

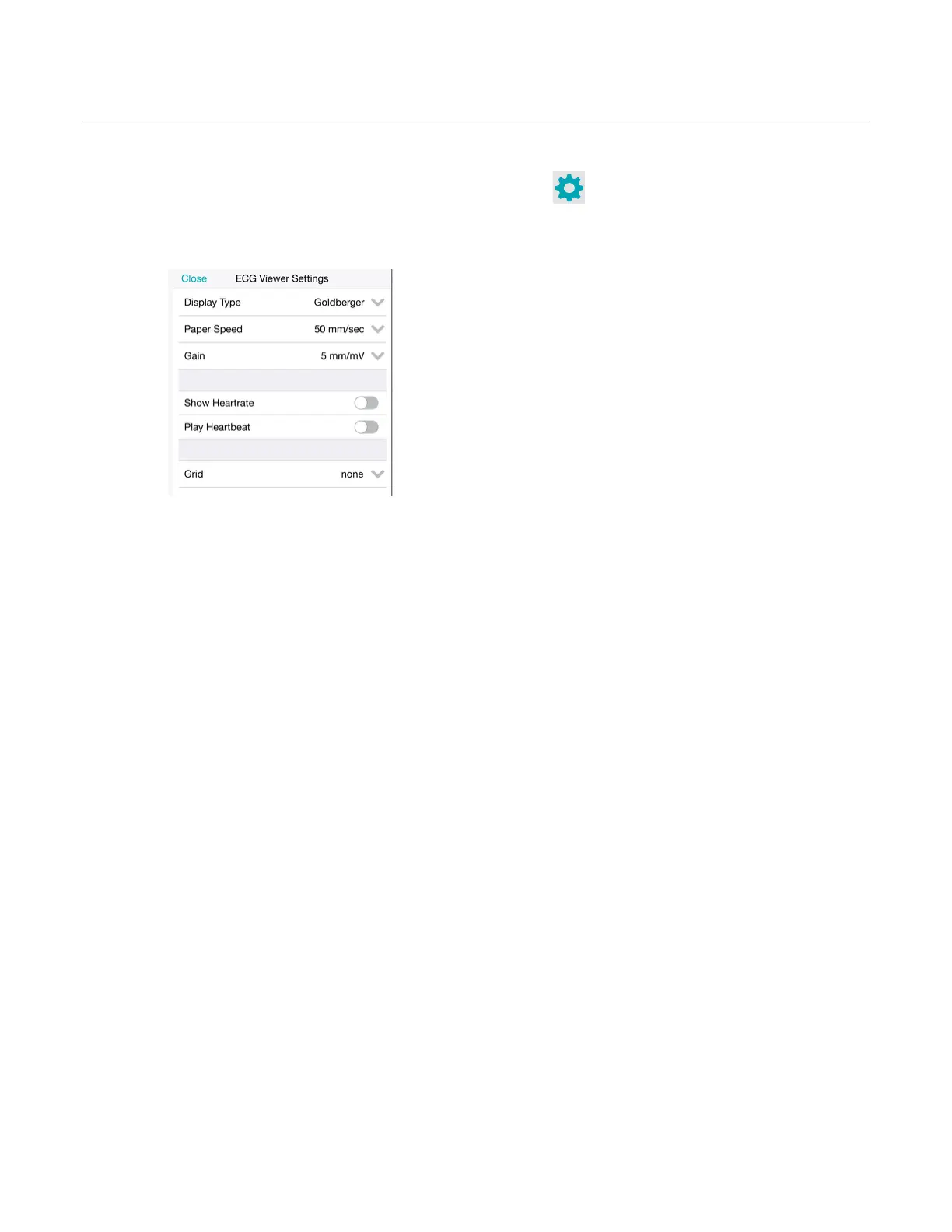

Entering ECG viewer settings
1. To access the ECG Viewer Settings screen, tap Settings at the bottom left side of the CardioPet
app.
These settings apply to how the ECG is viewed on the Android’s screen and do not impact the saved
ECG file.
2. Set the following items to your viewing preferences:
• Display Type: Select from Single Lead, Einthoven (3 leads), or Goldberger (6 leads)
• Paper Speed: Scroll to see all speed options and select the desired setting (50mm/sec is
recommended).
• Gain: Select from 2.5 mm/mV, 5 mm/mV, or 10 mm/mV (recommended).
• Show Heartrate: When this feature is turned on, the CardioPet app shows a calculation of the
patient's heart rate in the top left corner of the app.
• Play Heartbeat: When this feature is turned on, the CardioPet app makes an audible beep to the
rhythm of the heart rate.
• Grid: Choose between fine, medium, coarse, or no gridlines behind the ECG tracing in the app.
3. Tap Close at the top left side of the screen.
