Components Normally Included in an Order
• Mounting tray for rack installation
• +24 VDC power supply
• One high speed Ethernet LAN cable
• An antenna ranging in size from 0.96m, 1.2m, 1.8m, or 2.4m for Ku-Band; and 1.8m,
2.4m, and 3.8m for C-Band
•An IFL cable
• An appropriate feed assembly for the antenna (OMT)
• A Block Up Converter (BUC); 1W, 2W or 4W for Ku-Band and 2W or 5W for C-Band
• Optional Ku-Band Power Booster: 8W or 16W
• Optional C-Band Power Booster: 10W or 20W
• Low Noise Block converter (LNB)
4.3.1 Additional Components Normally Required
• An iDirect Specified L-Band cable — Consists of a RG-6 or RG-11 dual-coax cable and
connectors (to connect the IDU and ODU), plus type F connectors and sealant tape. (See
Chapter 4, "Installation" on page 15.)
• Non-Pen (Non-Penetrating) Roof Mount
• Ballast (anchor weight)

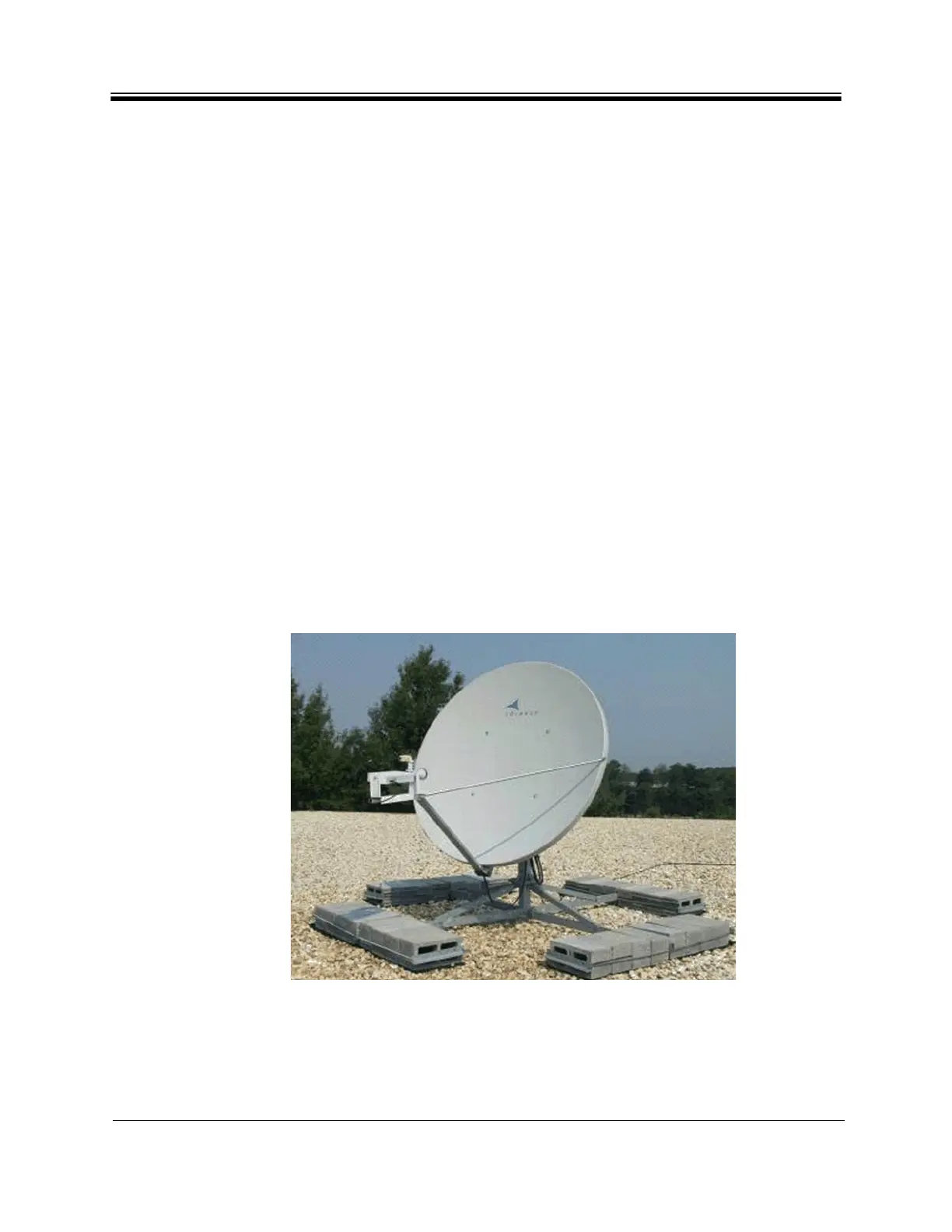

A typical antenna with BUC and LNB is shown in Figure 4.
Figure 4. Typical Antenna with BUC and LNB
Note: For instructions on installing your antenna, refer to its manufacturer's
Installation Guide.
