2 - TECHNICAL INFORMATION KID 70
2 - Pag. 16 / 16

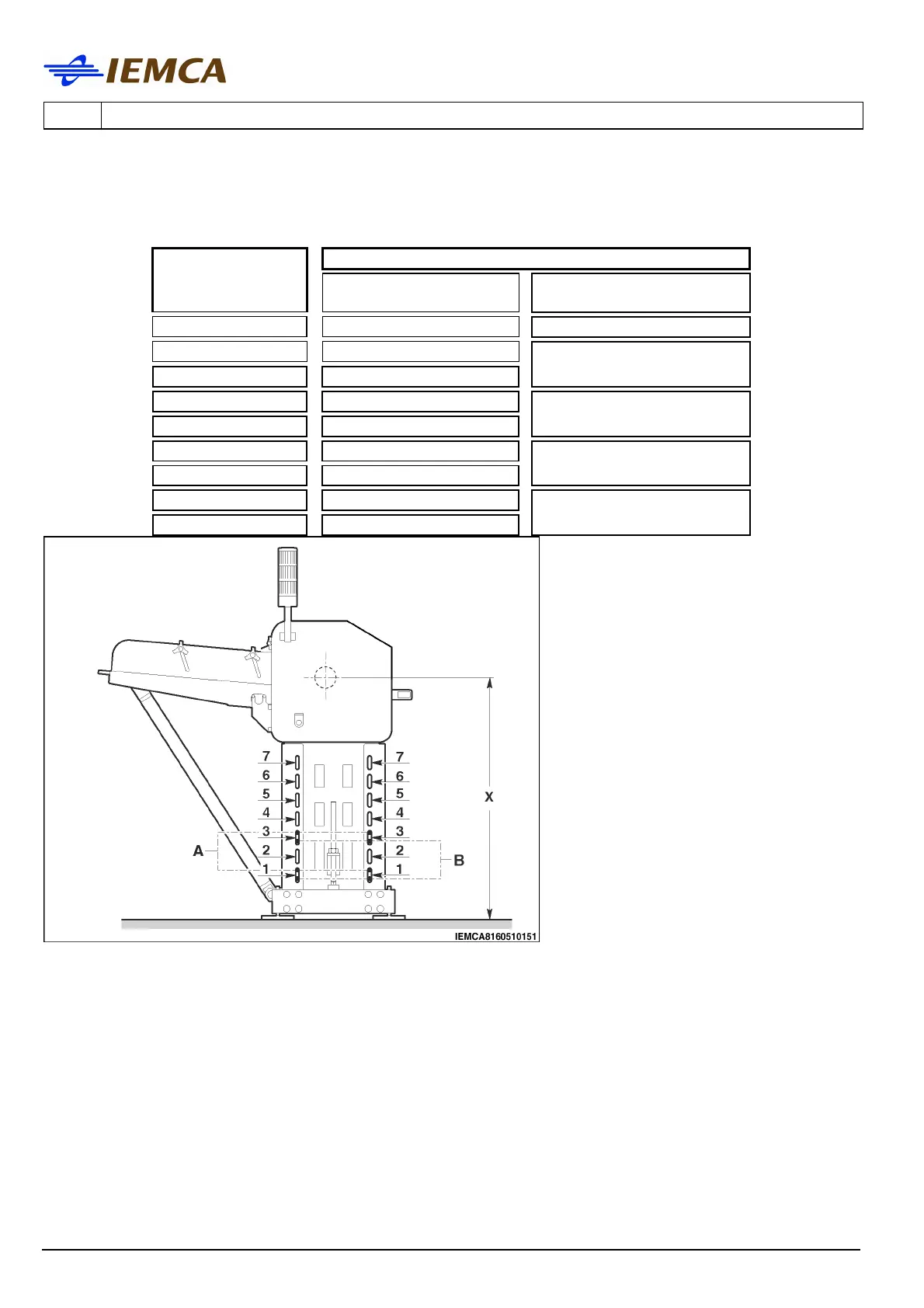

Loading axis height table
Screw positionX - Loading axis
height
Threaded holes on the
base
Slots on the supports
930÷967 B 1 - 3
968÷999 A
1000÷1037 B
2 - 4
1038÷1069 A
1070÷1107 B
3 - 5
1108÷1139 A
1145÷1177 B
4 - 6
1178÷1209 A
1210÷1247 B
5 - 7
