4 - HANDLING AND INSTALLATION KID 70
GB
4 - Pag. 5 / 21

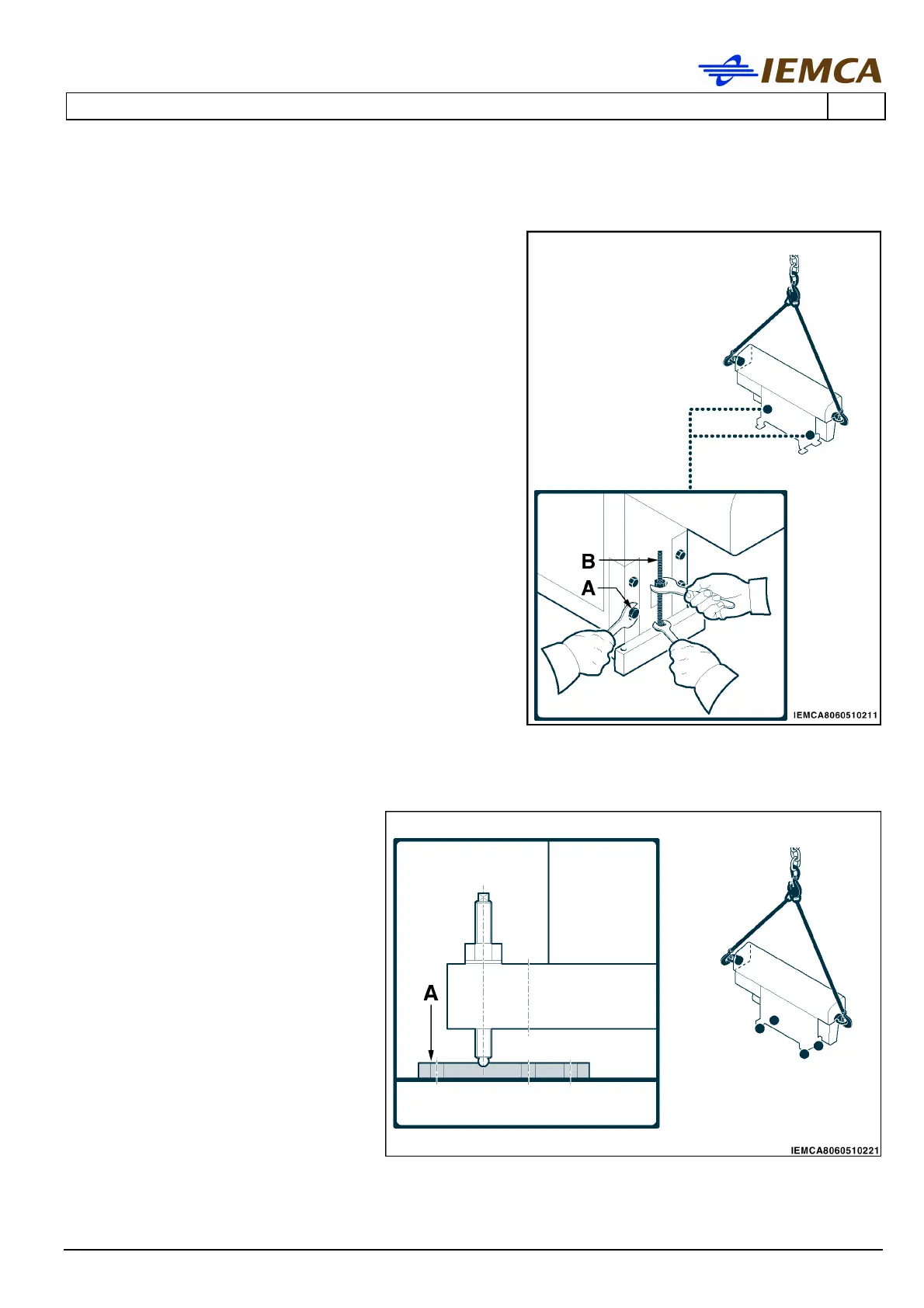

4.6.1 Loading axis height variation
The bar feeder is generally supplied with the loading
axis height aligned to that of lathe spindle. If you
need to change it, proceed as follows:
• Prepare the bar feeder to be lifted (sect. 4.4.).
• Stretch the ropes.
• Loosen, on both sides, the screws (B) and
remove the screws (A).
• Bring the bar feeder to the loading axis height
(see section 2.6. "Loading axis height" table).
• Refit the screws (A) and temporarily adjust the
screws (B).
4.6.2 Assembling the backing plates
• Lift the bar feeder (section 4.4.).
• Place the plates (A) at the same
level of feet, with the longer
part inwards (see figure).
• Lower again the bar feeder to
the ground.
Note: fastening is made in the end.
