4 - HANDLING AND INSTALLATION KID 70
4 - Pag. 6 / 21

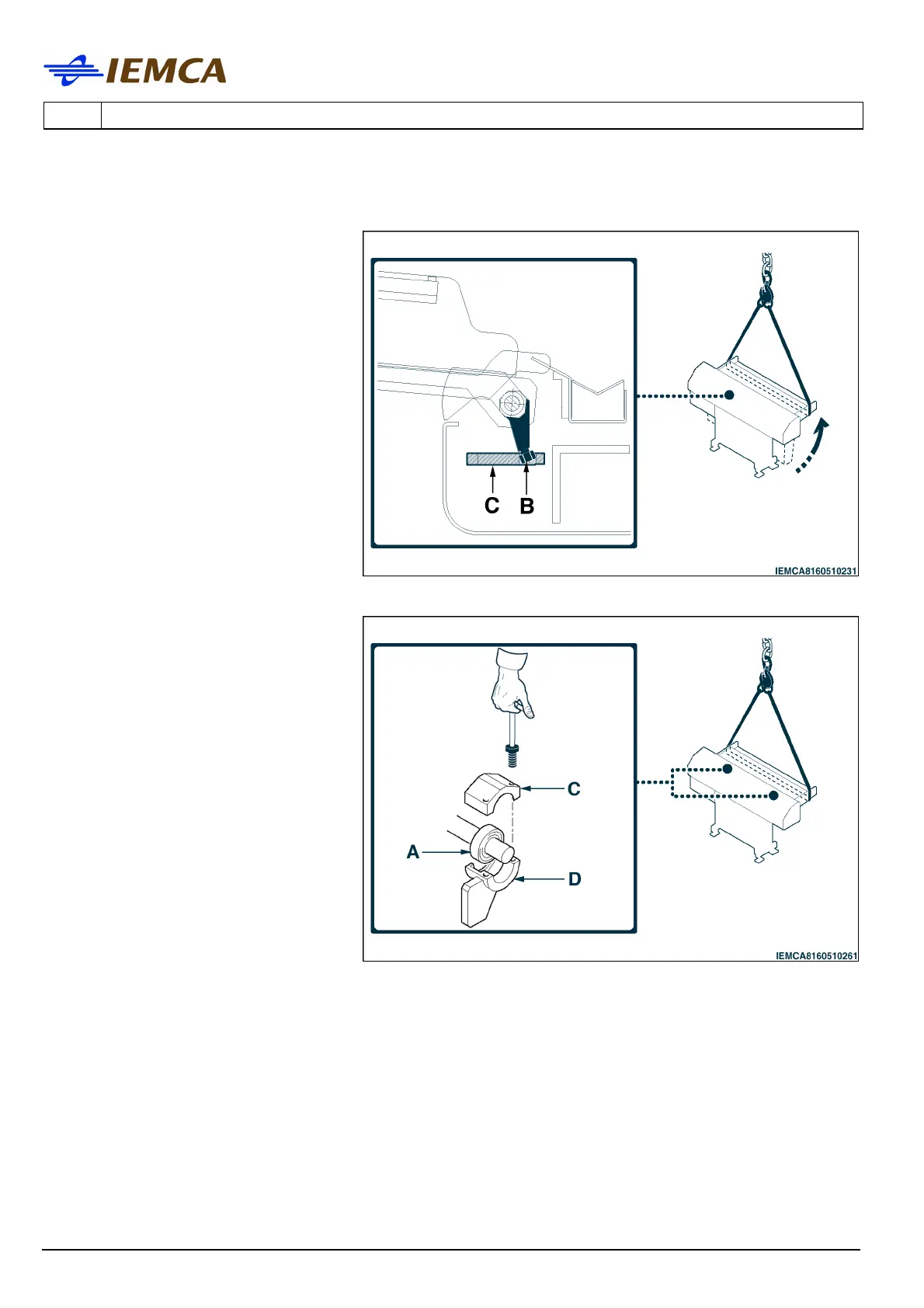

4.6.3 Magazine positioning
For the positioning proceed as
follows.
• Lift the magazine with the help
of a lifting device. Check that
during the lifting, the pin (B) is
correctly inserted into the cam
seat (C).
• Connect the bar magazine to the
bar feder body making sure the
bearings (A) fit in their slots (D).
• Fix the support (C) on the
bearing slots (D) by means of
two screws.
