4 - HANDLING AND INSTALLATION KID 70
GB
4 - Pag. 17 / 21

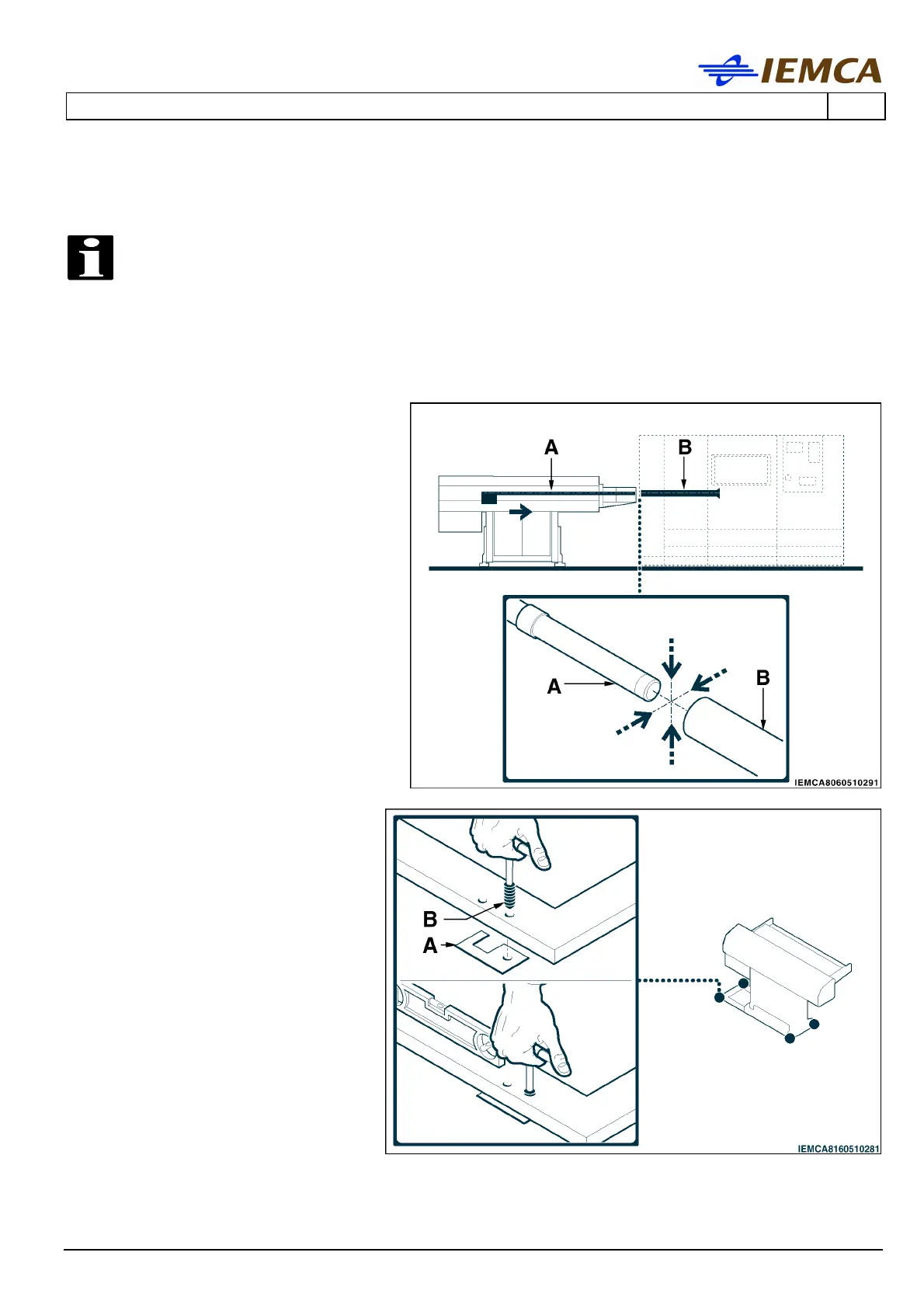

4.8.3 Alignment and levelling
INFORMATION:
not only alignment and levelling are fundamental for the correct running of the
bar feeder and for the WARRANTY VALIDITY, but also they must be carried out
only by a SKILLED STAFF WITH PRECISE TECHNICAL COMPETENCE.
For these operations proceed as
follows.
- Position the bar feeder near the
lathe (see figure).
- Put the four plates (A) under the
end points of the frame (see
figure).
- Tighten the socket head screws.
(B)
- Open the upper guard and
manually shift the bar pusher (C)
until you bring its end close to
the spindle head (D).
