4 - HANDLING AND INSTALLATION KID 70
4 - Pag. 18 / 21

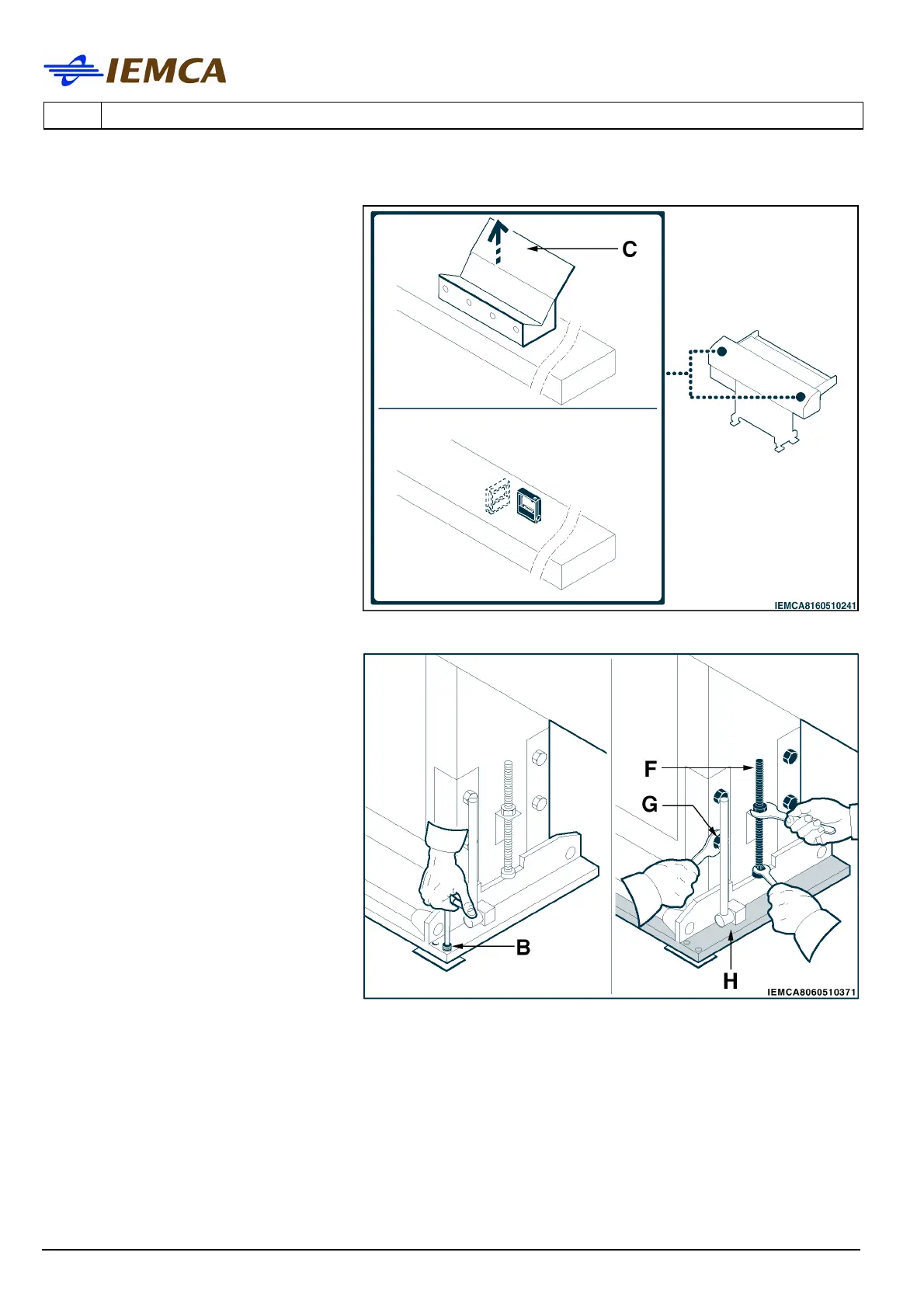

- Remove two sections (C) from
the guide channel in order to use
the beam plane to check the
levelling
- Verify the alignment of both bar
feeder axes and levelling.
- Adjust the loading axis vertically
through screws (B).
This adjustment can also be
carried out by means of the
screws (F), after loosening the
screws (G).
- Hit both sides of the frame (H)
with a mallet for the adjustment
of the loading axis horizontally.
