5 - ADJUSTMENTS AND SETTING-UP KID 70
GB
5 - Pag. 3 / 6

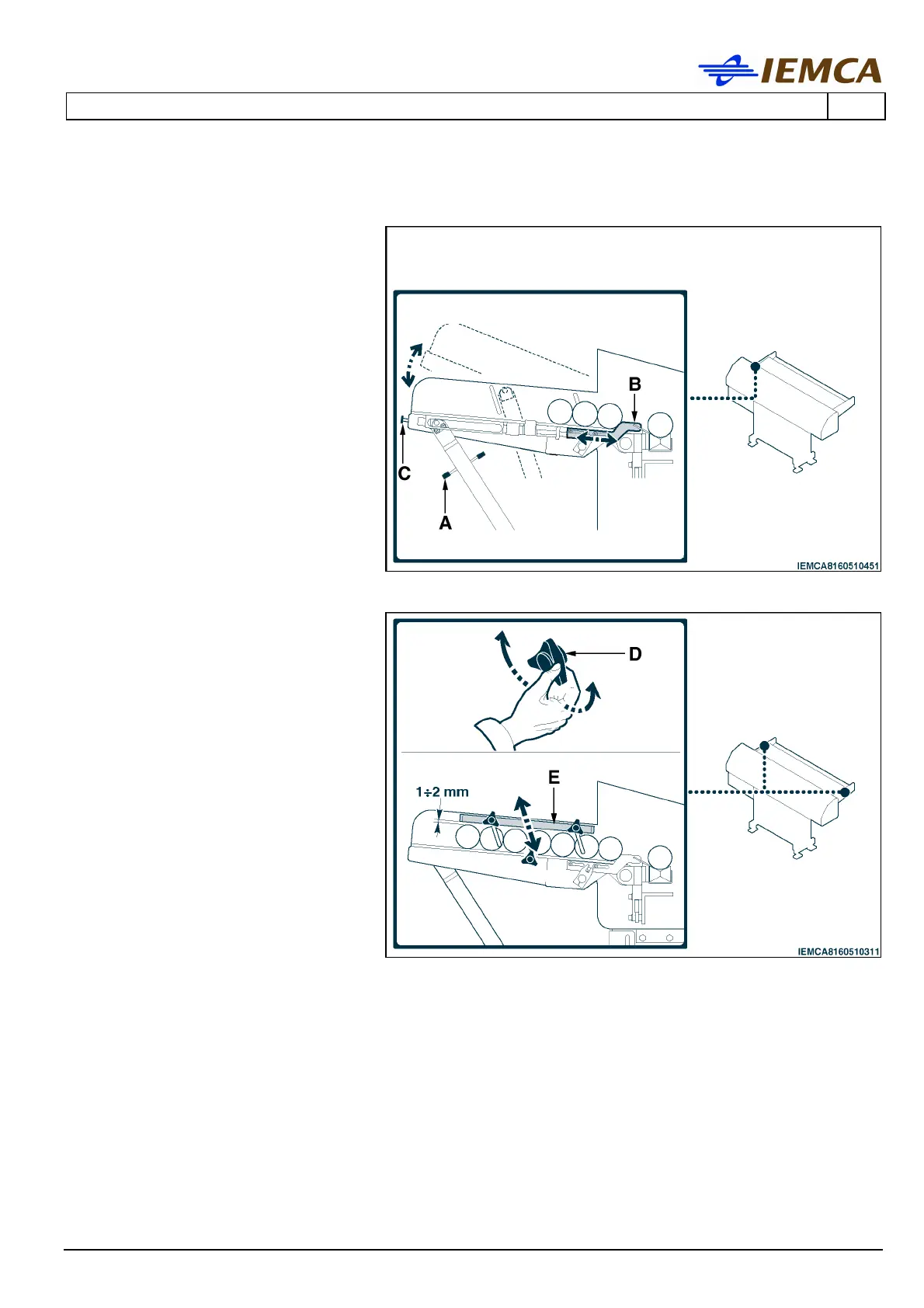

The adjustment must be carried out
according to the diameter of the bar
to be loaded.
For the adjustment proceed as
follows:
- Turn lever (A) to adjust bar
magazine inclination according
to the type of the bars to be
machined.
- Turn knob (C)to adjust the bar
stop device (B).
- Loosen the knobs (D), adjust the
frame (E) at about 1- 2 mm from
the bars (see figure) and tighten
the knobs.
