GB
5 - ADJUSTMENTS AND SETTING-UP KID 70
5 - Pag. 4 / 6

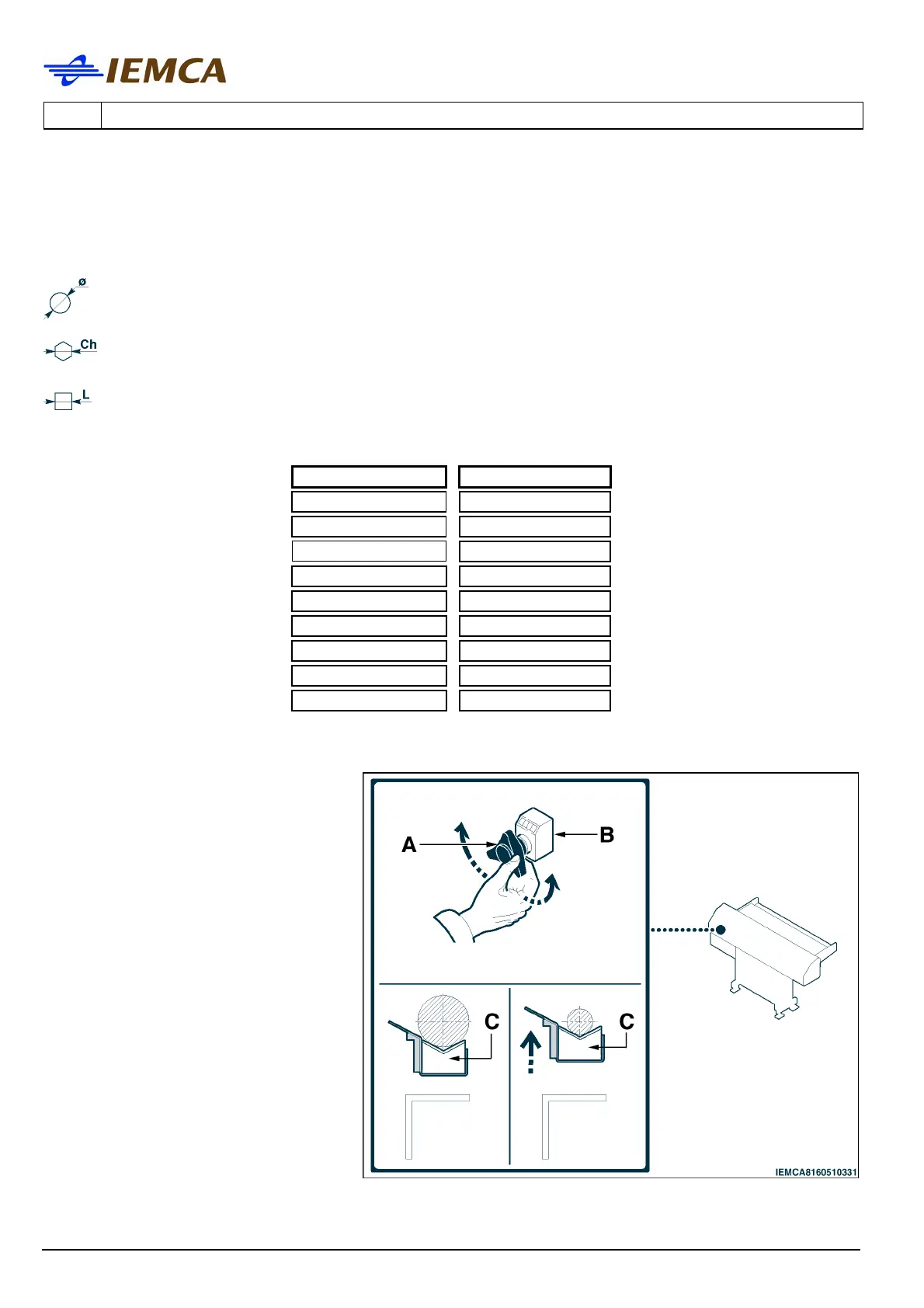

5.3 LOADING AXIS ADJUSTMENT
Carry out guide channel height adjustment according to the section of the bars to be machined.
Please carry out guide channel height adjustment following these instructions.
Round bars: set the bar diameter measurement on the millimetre-counter.
Hexagonal bars: set the measurement of the wrench on the millimetre-counter.
Square bars: set the measurement (X) obtained from the following table, on the
millimetre-counter:
L =
mm
X
5 5
8 8
10 10
12 12
15 15
18 18
20 20
22 22
25÷55 40
The adjustment has to be carried
out according to the diameter of the
barstock.
For the adjustment proceed as
follows:
- Rotate the knob (A) until
displaying the diameter of the
barstock, on the millimetre
counter (B).
- Check that with the lifted guide
(C), the bar is aligned with the
loading axis.
