5 - ADJUSTMENTS AND SETTING-UP KID 70
GB
5 - Pag. 5 / 6

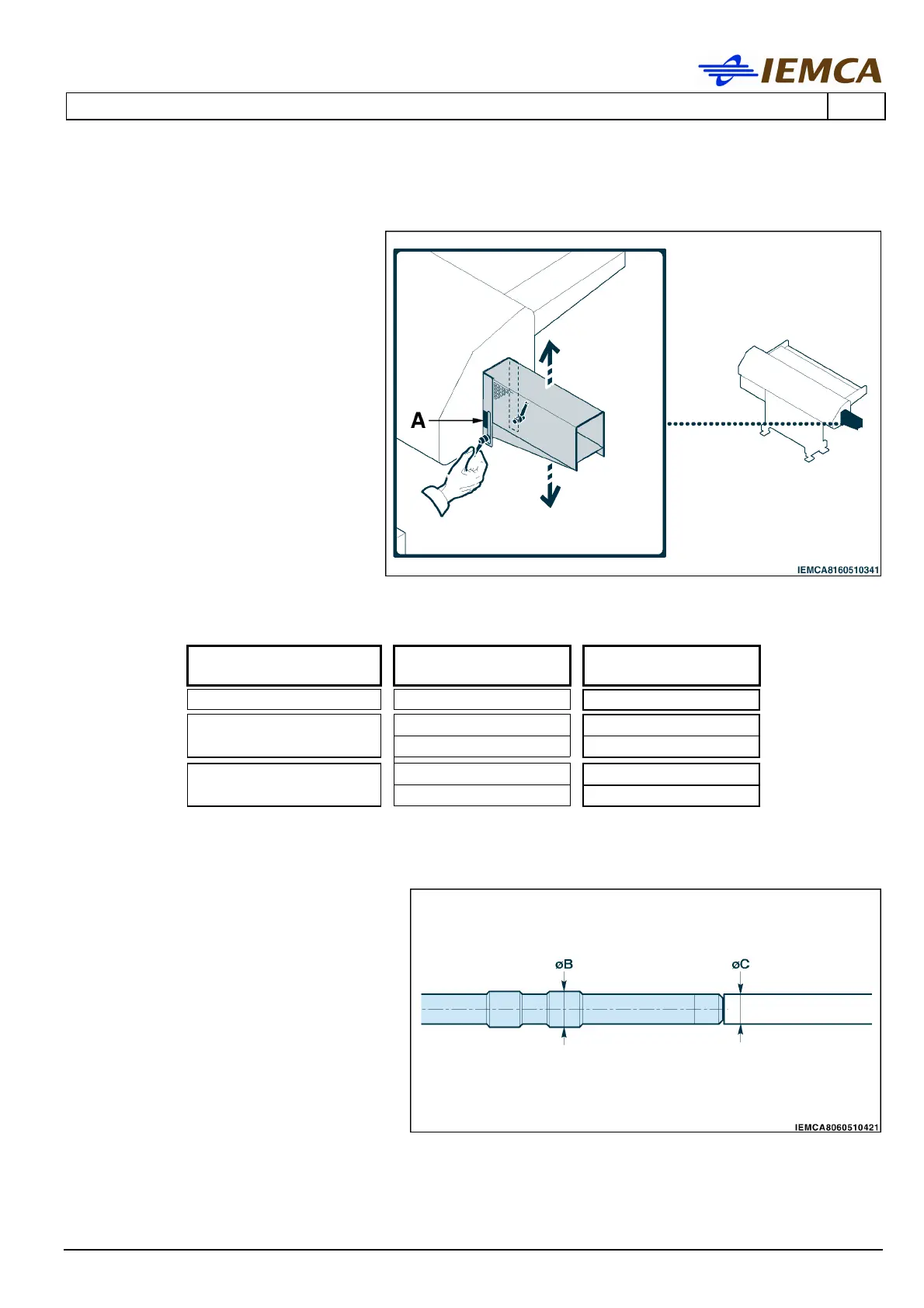

5.4 BAR FEEDER-LATHE GUIDE ADJUSTMENT
The adjustment must be carried out
according to the diameter of the
bar pusher and barstock
bearings.
- Adjust the guide height,
displayed on the graduated rod
(A), in order to respect the
values reported in the table.
Bar feeder-lathe guide height table
ø B - Bar pusher
bearing diameter (mm)
ø C - Barstock
diameter (mm)
Barstock guide
channel height
12 5÷12 12
10÷15 1515
16÷19 16÷19 (*)
16÷21 2121
22÷80 22÷80 (*)
(*) The height must be equal to the barstock diameter (ø C).
