5 - ADJUSTMENTS AND SETTING-UP KID 70
5 - Pag. 6 / 6
5.5 FEED BELT ADJUSTMENT
For the adjustment proceed as
follows:

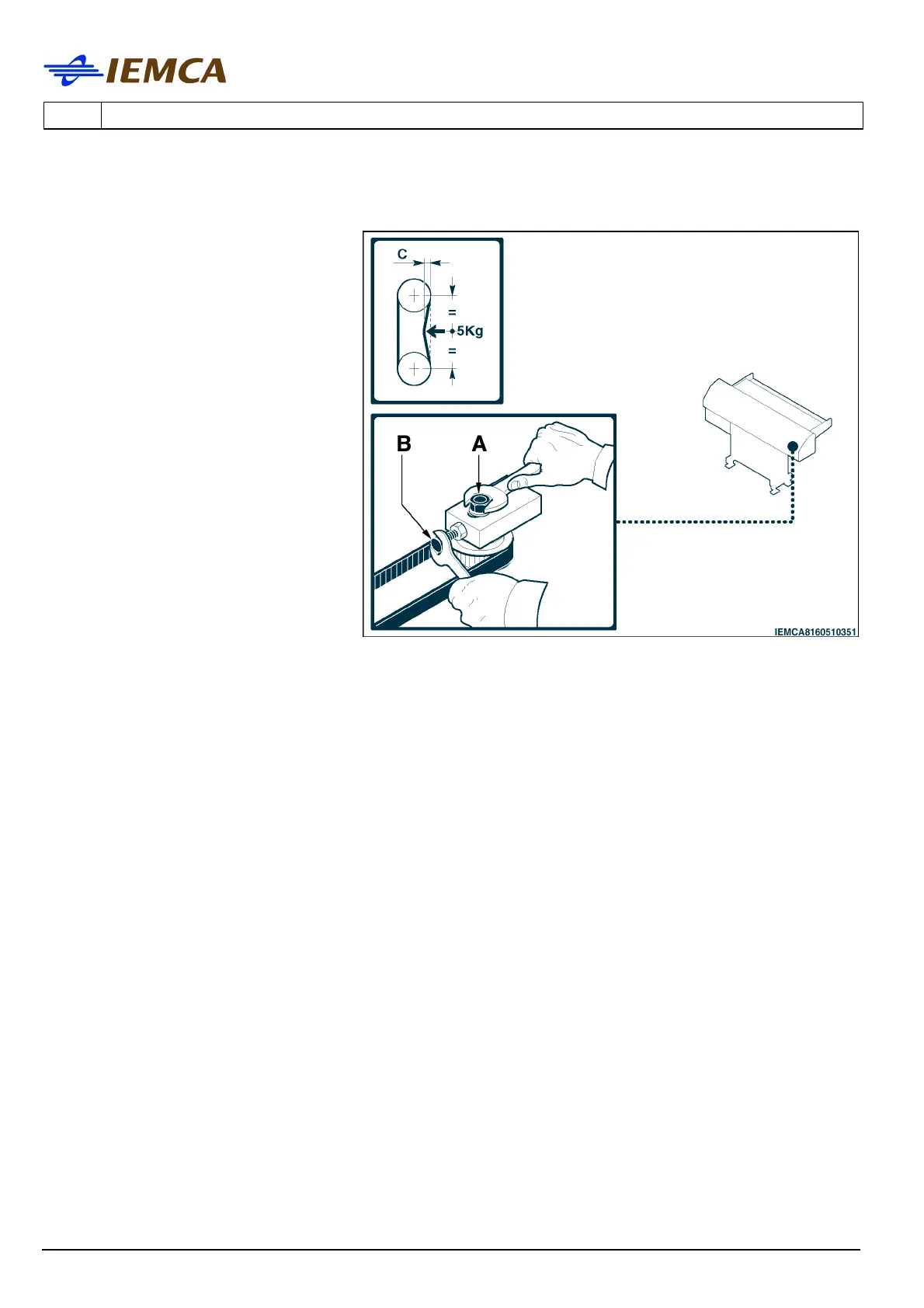

- Open the upper carter. To check
the belt tension, adopt the
method indicated in the figure.
The resutling value (C) must be
10 to 15 mm.
- Loosen the nut (A).
- Adjust the belt tension through
the screw (B) and lock nut.
- Tighten the lock nut (A). Check
the tightening of the screw (B)
and of the lock nut and close the
carter again.
