IFM PI2797 - Operating and Display Elements

13
UK

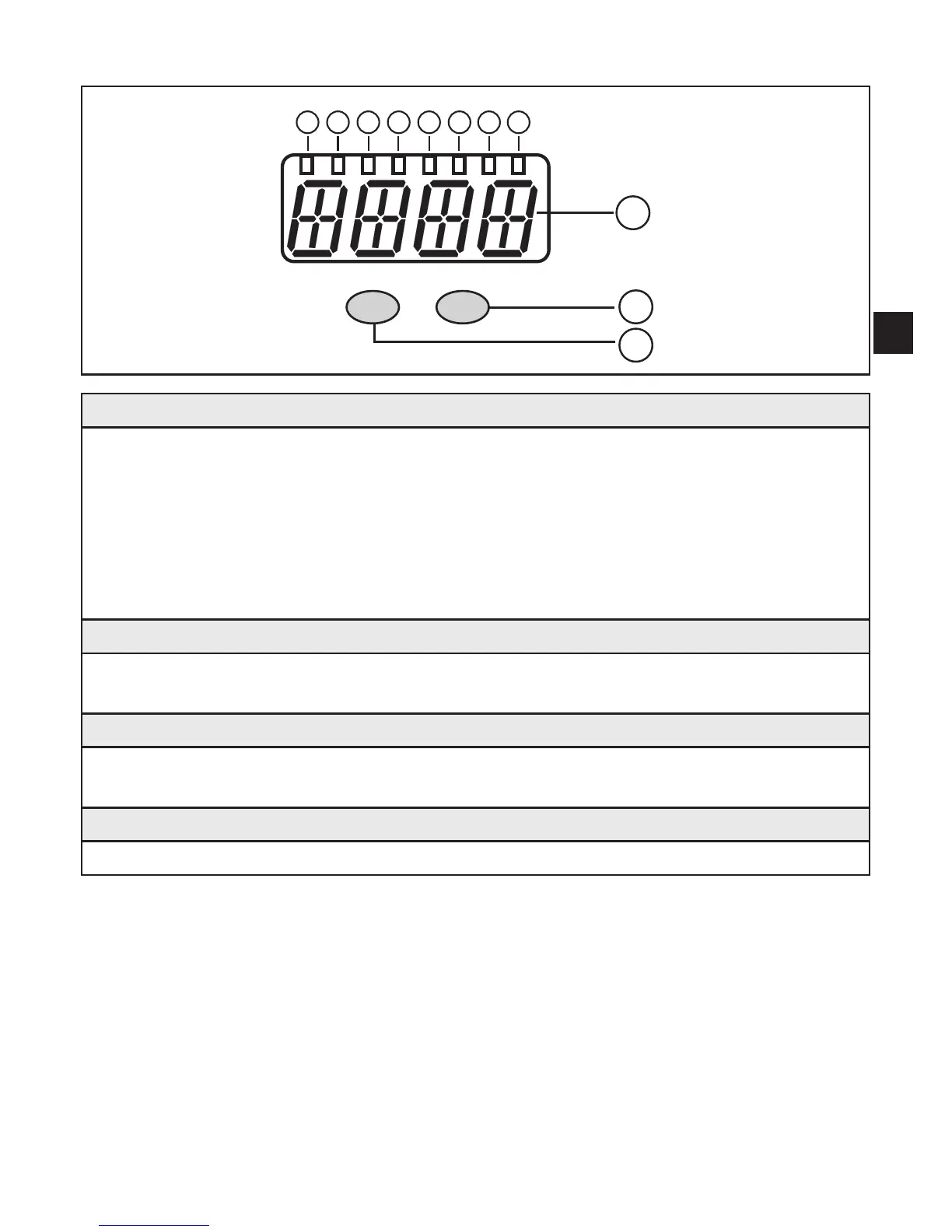

7 Operating and display elements
10
9
11
Mode/Enter Set
1 2 3 4 5 6
7
8
1 to 8: Indicator LEDs
- LED 1 to LED 5 = system pressure in the specified unit of measurement�
- LED 6 = System pressure in % of the set scaling of the analogue output if [OU2] is
configured as analogue output�
System pressure in % of the final value of the measuring range if [OU2] is configured as
switching output�
- LED 7 = switching status OUT2 (lights if output 2 is switched)�
- LED 8 = switching status OUT1 (lights if output 1 is switched)
9: Alphanumeric display, 4 digits
- Display of the current system pressure�
- Indication of the parameters and parameter values�
10: Set pushbutton
- Setting of the parameter values (scrolling by holding pressed; incrementally by pressing
once)�
11: Mode/Enter button
- Selection of the parameters and acknowledgement of the parameter values�
