9 Parameter setting
During parameter setting the unit remains in the operating mode� It continues its
monitoring function with the existing parameters until the parameter setting has
been completed�
Exceptions:changestotheparametersCOF(→9.4.1),CP1andCP2(→9.4.7)takeeffect
immediately�
9.1 General parameter setting

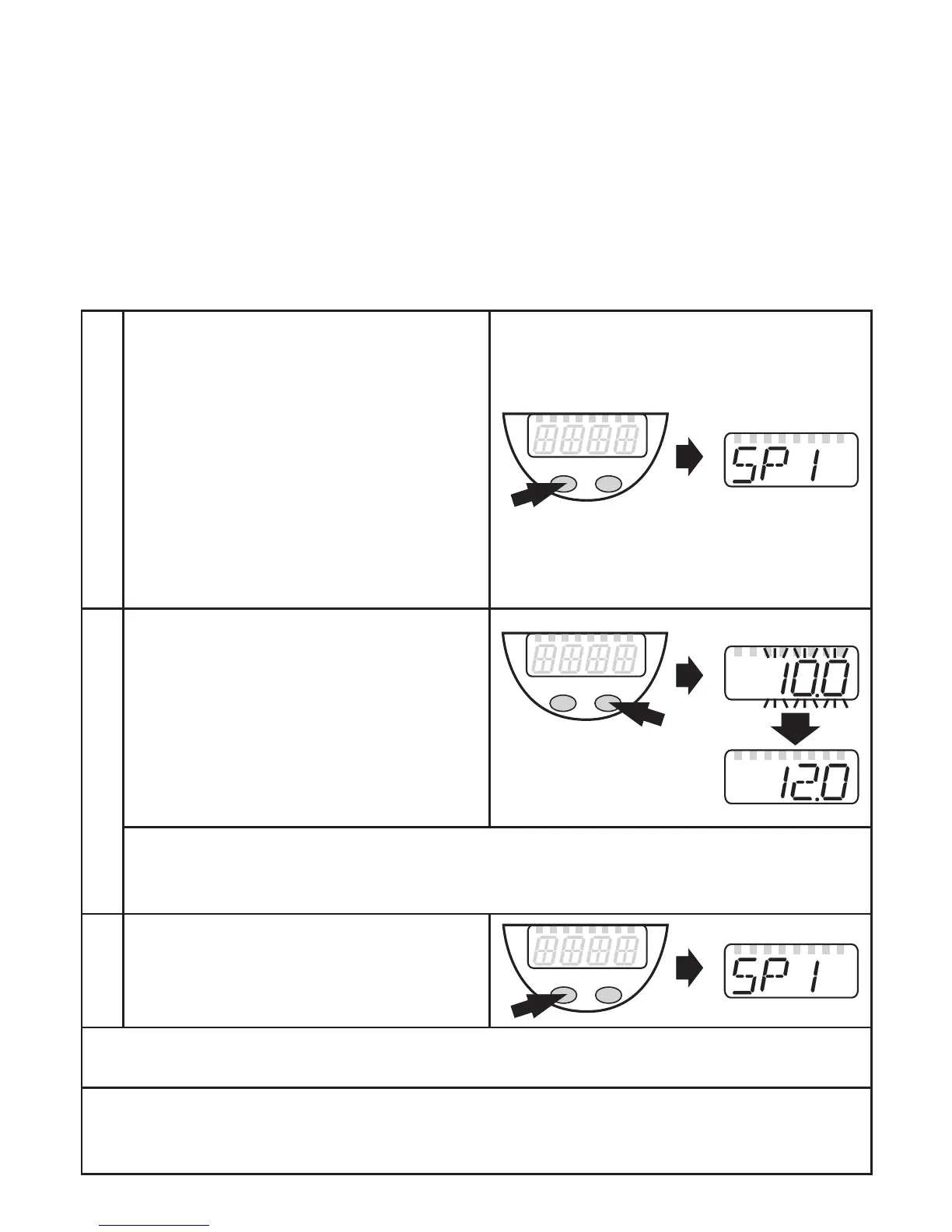

3 steps must be taken for each parameter setting:
1
Select parameter
► Press [Mode/Enter] until the
requested parameter is displayed�
If the main menu is protected by an
access code, [Cod0] flashes in the
display�
► Press [Set] and keep it pressed until
the valid code no� is displayed�
► Press [Mode/Enter] briefly�
On delivery by ifm electronic: no access
restriction�
 
2
Set parameter value
► Press [Set] and keep it pressed�
> Current setting value of the
parameter flashes for 5 s�
> After 5 s: setting value is changed:
incrementally by pressing the button
once or continuously by keeping the
button pressed�
 
Numerical values are incremented continuously� For reducing the value: let the
display move to the maximum setting value� Then the cycle starts again at the
minimum setting value�
3
Acknowledge parameter value
► Press [Mode/Enter] briefly
> The parameter is displayed again�
The new setting value is stored�
 
Set other parameters
► Start again with step 1�
Finish parameter setting
► Press [Mode/Enter] several times until the current measured value is displayed or wait for 15 s�
> The unit returns to the operating mode�
