SU2020 SU8020 SU2021 SU8021 SU2621 SU8621 Ultrasonic flow meter
16
OUT1
OUT2
CFG
TOTL
DIS
DIAG
SIM
d.InF
rES
BACK
EF
SEL1
ou1
BACK
FOU1
OUT1
OU ON OFF
Hno Hnc Fno FncImP
FRQ dOU
TEMP OFFFLOW
Fdir Sig.Q
rP1
SP1 FH1
FL1
ImPS
ImPR
FSP1
FEP1
FrP1
Main menu

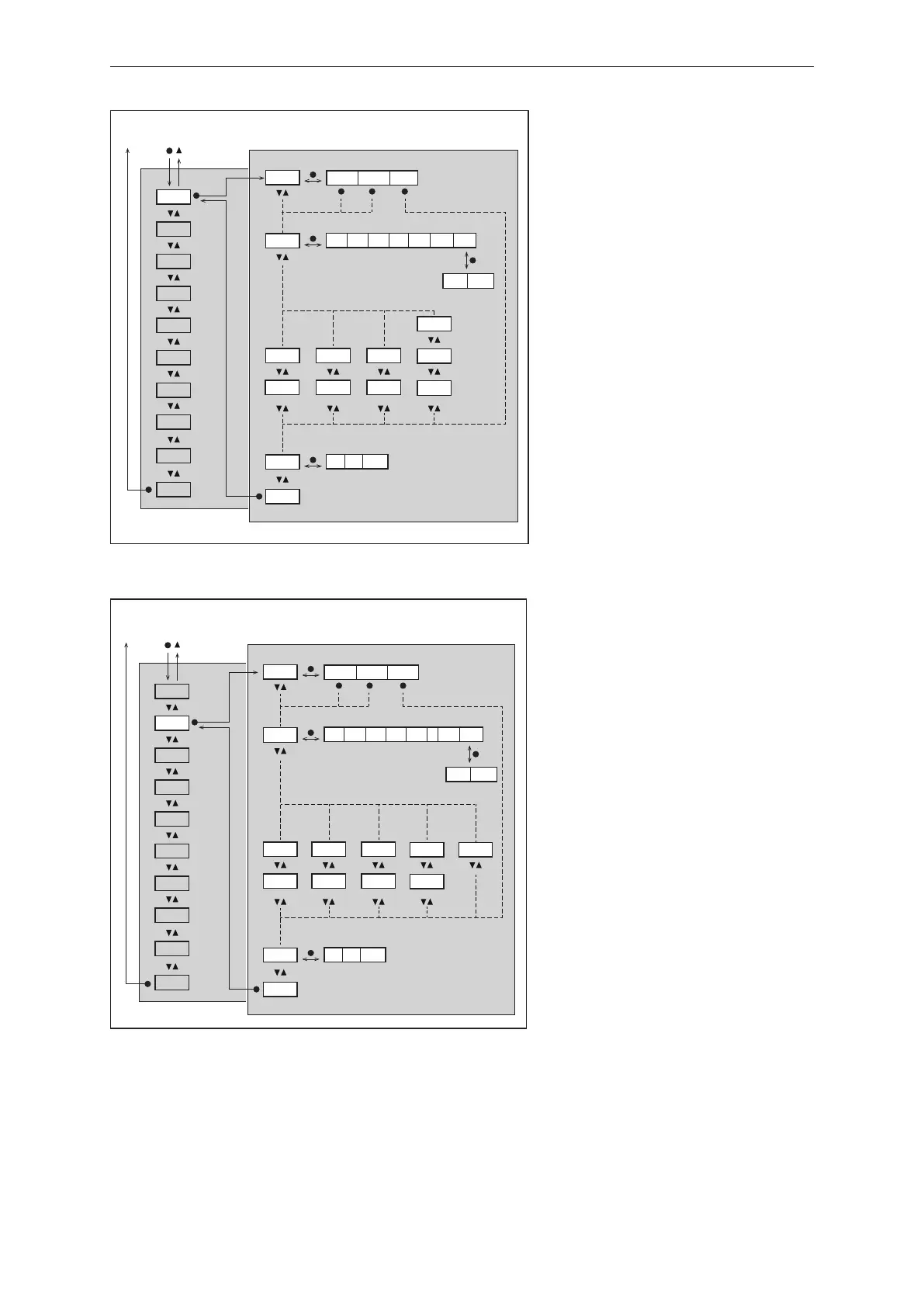

Fig.9: output 1 configuration menu [OUT1]
OUT1
OUT2
CFG
TOTL
DIS
DIAG
SIM
d.InF
rES
BACK
EF
SEL2
ou2
BACK
FOU2
OUT2
OU ON OFF
Hno Hnc Fno FncImP In.D dOUI
TEMP OFFFLOW
rP2
SP2
AEP2
ASP2 FH2
FL2
ImPS DIn2
ImPR
Fdir Sig.Q
Main menu
Fig.10: output 2 configuration menu [OUT2]
