IFM SU2020 - Operation; Process Value Display

SU2020 SU8020 SU2021 SU8021 SU2621 SU8621 Ultrasonic flow meter
52
11 Operation
After power on and expiry of the power-on delay time, the unit is in the normal operating mode. It
carries out its measurement and evaluation functions and generates output signals according to the
set parameters.
11.1 Process value display
It is possible to switch between different process value indications during operation:
u Press [▲] or [▼].
w The display changes between the user-defined display layout, the totaliser screen and the standard
layout [diS.L] = L4, see figure.
w After 30 seconds, the unit returns to the user-defined display layout.
Running...
L
99.00
Totalisator
L
20.00
Wert vor Reset
---
Zeit seit Reset
2
Running...
17.6
°C
20.3
l/min
L
99.00
Totalisator
Niedrig
Qualtität Signal
3
20.3
l/
min
Running...
1

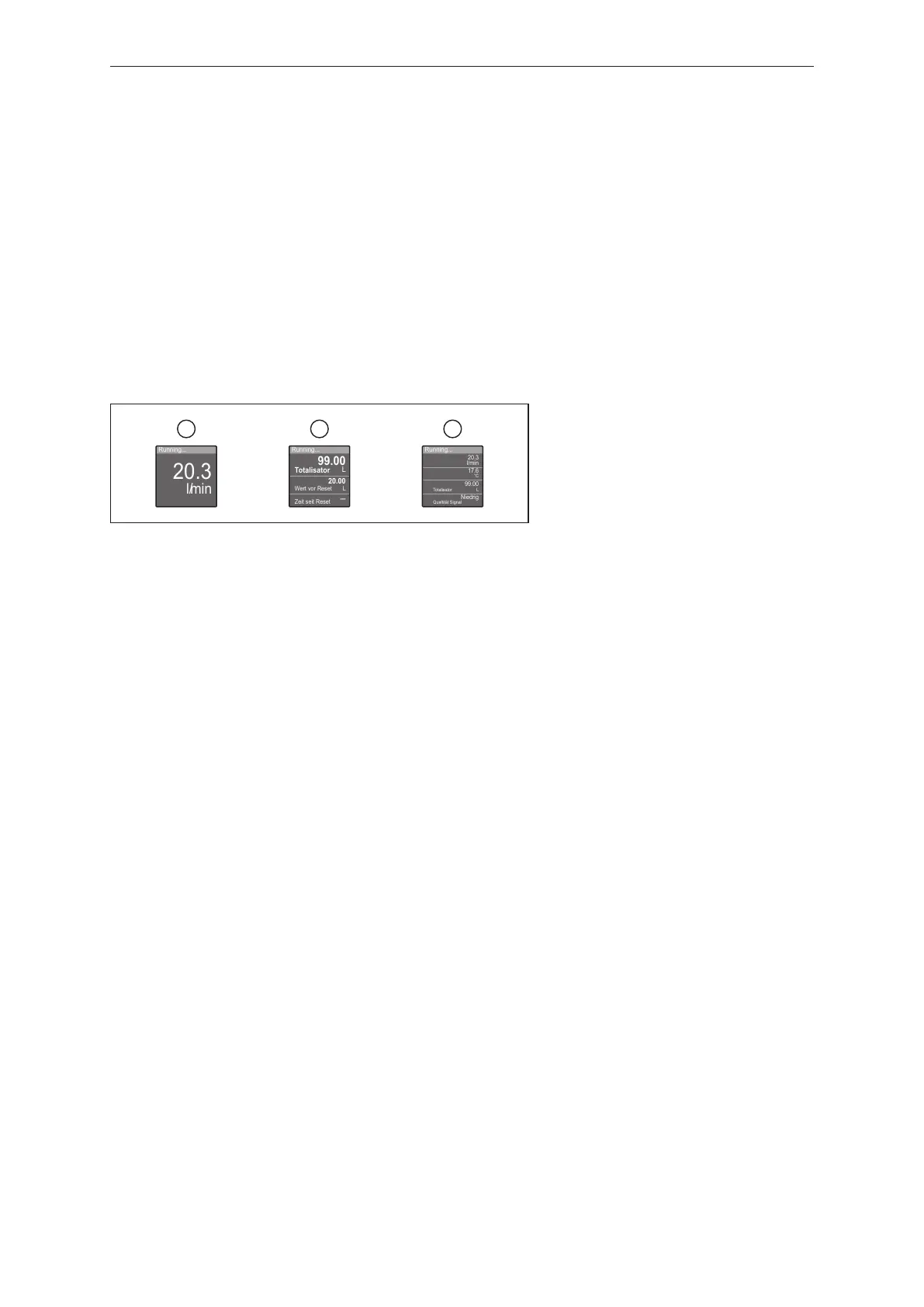

Fig.28: switching between the process value displays
1: Display layout, as set under [diS.L].
See also: Display layout (Ò/44). In this example [diS.L] = L1.
2: Totaliser indication
3: Display layout [diS.L] = L4:
flow, temperature, totaliser Vol.1, signal quality
