SU2020 SU8020 SU2021 SU8021 SU2621 SU8621 Ultrasonic flow meter
20
OUT1
OUT2
CFG
TOTL
DIS
DIAG
SIM
BACK
EF
d.InF
rES
APPL
Back
BtB
- - -
- - -
Main menu

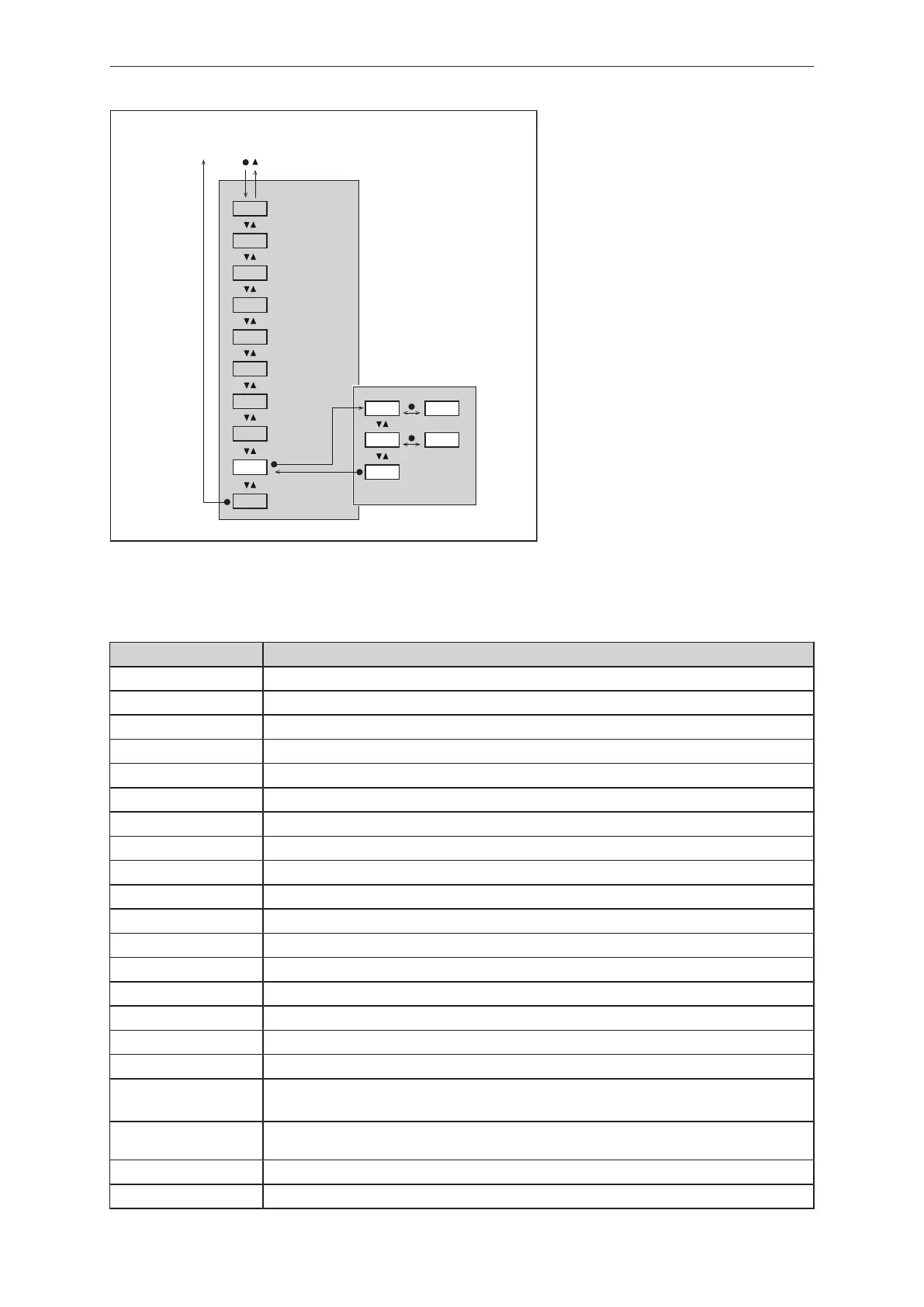

Fig.17: reset menu [rES]
8.2 Available parameters
Parameter Explanation
AEPx Analogue end point for OUTx = process value at which the output signal is 20 mA.
ASPx Analogue start point for OUTx = process value at which the output signal is 4 mA.
cFH.F Upper limit value for colour change (flow)
cFH.T Upper limit value for colour change (temperature)
cFL.F Lower limit value for colour change (flow)
cFL.T Lower limit value for colour change (temperature)
CGA Calibration factor in % for adapting the measured value curve to the application
coL.F Font colour for flow
col.T Font colour for temperature
col.V Font colour for totaliser indication
dAP.F Damping time in seconds for flow measurement
dOU Switching signal for diagnostic messages
DIn2 Totaliser reset via external signal
diS.B Brightness of the display
diS.L Display layout
diS.R Orientation of the display
diS.U Update rate of the display
Fdir • Flow direction setting (in menu CFG)
• Switching signal for flow direction (in menu OUTx)
FEPx Frequency end point for OUTx = Upper measured value at which the frequency signal set under
FrPx is output.
FHx Upper limit for switching signal OUTx with window function
FLx Lower limit for switching signal OUTx with window function
