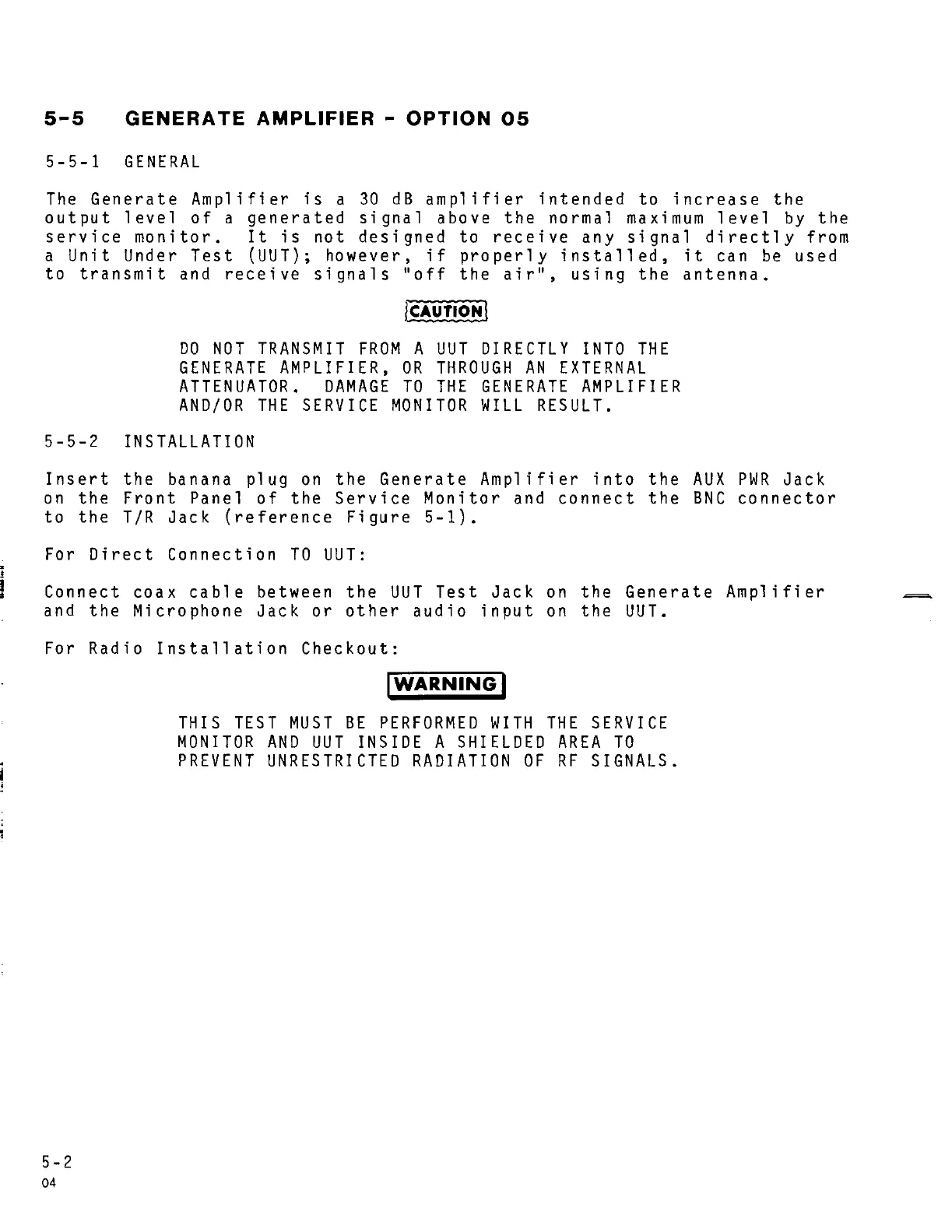

5-5

GENERATE

AMPLIFIER

-

OPTION

05

5-5-1

GENERAL

The

Generate

Amplifier

is

a

30

dB

amplifier

intended

to

increase

the

output

level

of

a

generated

signal

above

the

normal

maximum

level

by

the

service

monitor.

It

is

not

designed

to

receive

any

signal

directly

from

a

Unit

Under

Test

(UUT);

however,

if

properly

installed,

it

can

be

used

to

transmit

and

receive

signals

''off

the

air'',

using

the

antenna.

/CAUTION\

DO

NOT

TRANSMIT

FROM

A

UUT

DIRECTLY

INTO

THE

GENERATE

AMPLIFIER,

OR

THROUGH

AN

EXTERNAL

ATTENUATOR.

DAMAGE

TO

THE

GENERATE

AMPLIFIER

AND/OR

THE

SERVICE

MONITOR

WILL

RESULT.

5-5-2

INSTALLATION

Insert

the

banana

plug

on

the

Generate

Amplifier

into

the

AUX

PWR

Jack

on

the

Front

Panel

of

the

Service

Monitor

and

connect

the

BNC

connector

to

the

T/R

Jack

(reference

Figure

5-l).

For

Direct

Connection

TO

UUT:

Connect

coax

cable

between

the

UUT

Test

Jack

on

the

Generate

Amplifier

and

the

Microphone

Jack

or

other

audio

input

on

the

UUT.

For Radio

Installation

Checkout:

5-2

04

I

WARNING!

THIS

TEST

MUST

BE

PERFORMED

WITH

THE

SERVICE

MONITOR

AND

UUT

INSIDE

A

SHIELDED

AREA

TO

PREVENT

UNRESTRICTED

RADIATION

OF

RF

SIGNALS.
