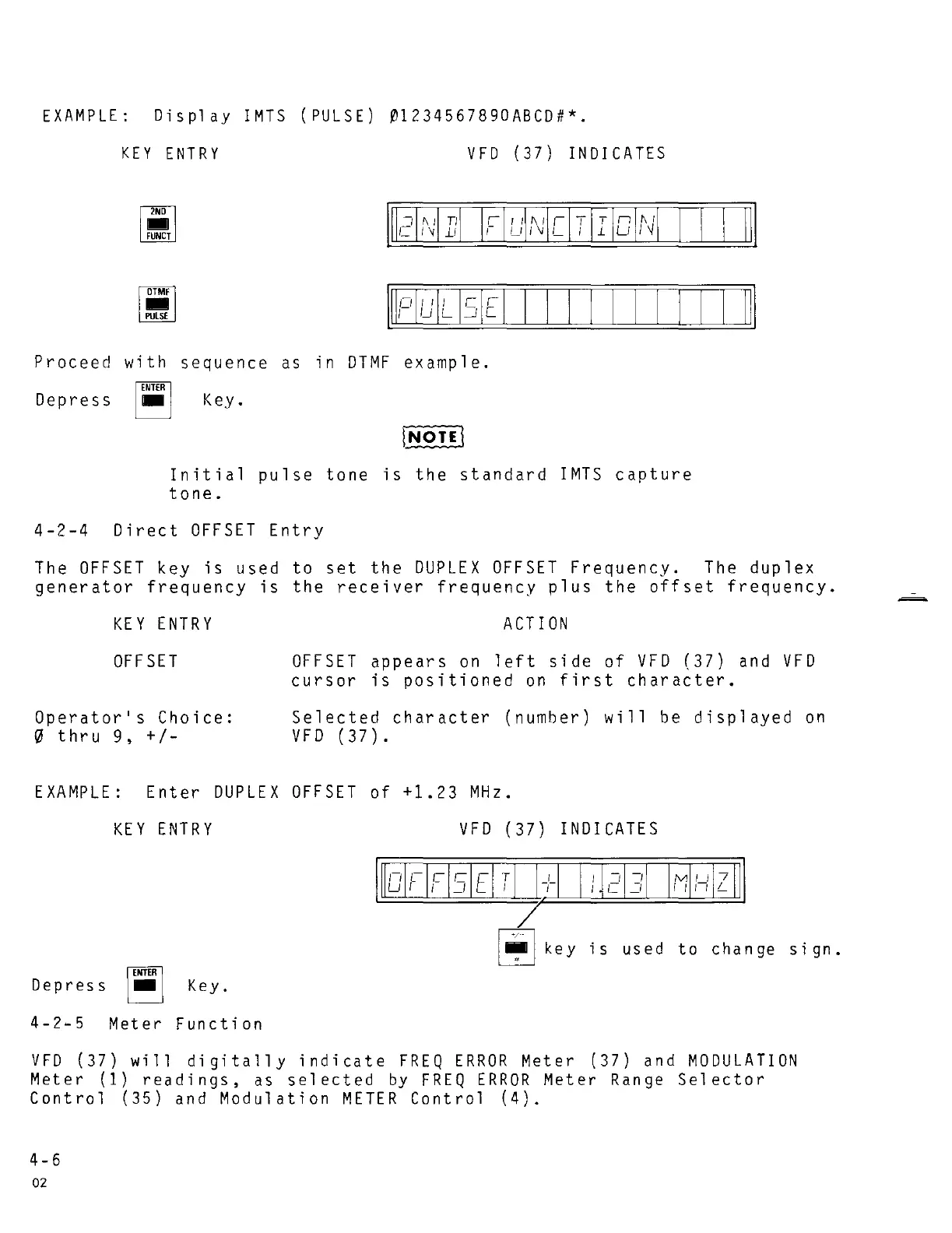

IFR FM/AM-1200A

EXAMPLE: Display IMTS (PULSE) £)123456789DABCD#*.
KEY ENTRY VFD (37) INDICATES
2ND
-
FUNCT
[!] \lie lulL lslrl I I I I I I I I I I II\
Proceed with sequence as in DTMF example.
Depress
I E-NTER I
Key.
Initial pulse tone is the standard IMTS capture
tone.
4-2-4 Direct OFFSET Entry
The OFFSET key is used to set the DUPLEX OFFSET Frequency. The duplex
generator frequency is the receiver frequency plus the offset frequency.
KEY ENTRY
OFFSET
Operator's Choice:
0 thru 9, +/-
ACTION
OFFSET appears on left side of VFD (37) and VFD
cursor is positioned on first character.
Selected character (number) will be displayed on
VFD (37).
EXAMPLE: Enter DUPLEX OFFSET of +1.23 MHz.
KEY ENTRY VFD (37) INDICATES
l.i!ilkey is used to change sign.
Depress
I E-NTER I
Key.
4-2~5 Meter Function
VFD (37) will digitally indicate FREQ ERROR Meter (37) and MODULATION
Meter (1) readings, as selected by FREQ ERROR Meter Range Selector
Control (35) and Modulation METER Control (4).
4-6
02
~
