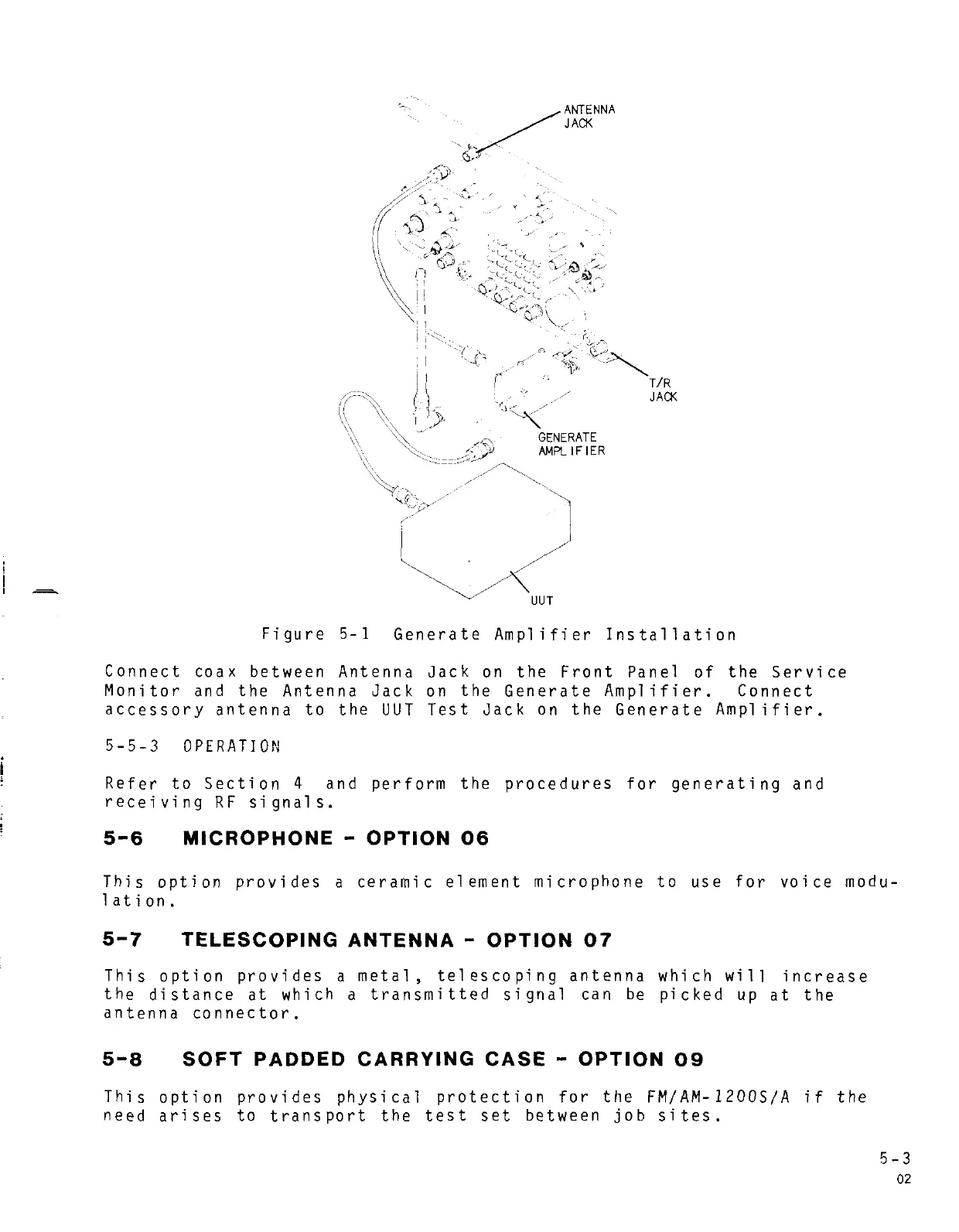

Generate Amp 1 i f i e r I n s t a 1 1 at i on
Connect coax between Antenna Jack on the Front Panel of the Service
Monitor and the Antenna Jack on the Generate Amplifier. Connect
accessory antenna to the UUT Test Jack on the Generate Amplifier.
5-5-3 OPERATION
Refer to Section 4 and perform the procedures for generating and
receiving RF signals.
5-6 MICROPHONE - OPTION 06
This option provides a ceramic element microphone to use for voice modu-
lation.
5-7 TELESCOPING ANTENNA - OPTION 07
This option provides a metal, telescoping antenna which will increase
the distance at which a transmitted signal can be pi eked up at the
antenna connector.
5-8 SOFT PADDED CARRYING CASE - OPTION 09
This option provides physical protection for the FM/AM-12005/A if the
need arises to transport the test set between job sites.
