IFR FM/AM-1200A

STEP
7.
5-18
07
PROCEDURE
Output levels at the DUPLEX Output Connector (14)
with the Tracking Generator installed are:
Track High: -3 dBm ±5 dB
Track Med: -15 dBm ±7 dB
Track Low:
-40 dBm +5/-10 dB
select the desired output level.

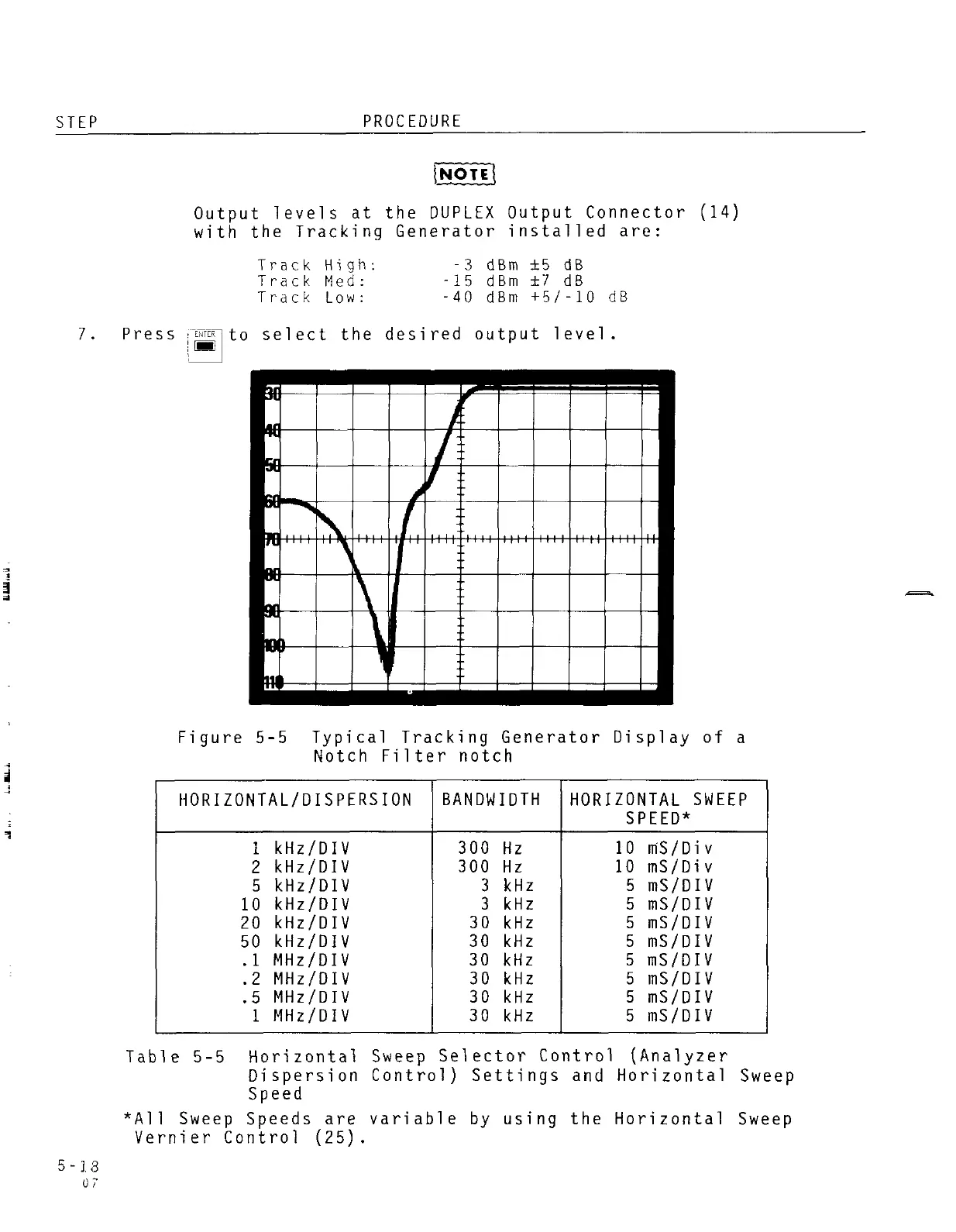

Figure 5-5
Typical Tracking Generator Display of a
Notch
Filter notch
HORIZONTAL/DISPERSION BANDWIDTH HORIZONTAL SWEEP
SPEED*
1
kHz/DIV 300
Hz
10 niS/Div
2
kHz/DIV
300
Hz 10 mS/Div
5
kHz/DIV 3
kHz 5 mS/DIV
10
kHz/DIV 3 kHz 5 mS/DIV
20
kHz/DIV 30 kHz 5 mS/DIV
50
kHz/DIV 30 kHz 5 mS/DIV
. 1 MHz/DIV
30 kHz 5 mS/DIV
. 2
MHz/DIV 30 kHz 5 mS/DIV
. 5
MHz/DIV 30 kHz 5 mS/DIV
1 MHz/DIV
30
kHz 5
mS/DIV
Table 5-5 Horizontal Sweep Selector Control (Analyzer
Dispersion Control) Settings and Horizontal Sweep
Speed
*All Sweep Speeds are variable by using the Horizontal Sweep
Vernier Control (25).
