IFR FM/AM-1200A

MNEMONIC
ASCII
CODE (HEX)
IEEE 488 INSTRUCTION
MESSAGE
ATN bus
signal 1 i n e ATTENTION
DAB 00-?F
Data Byte
DAC
bus signal 1 in e Data Accepted
DAV bus
signal 1 i n e Data V a 1 i d
END
bus signal 1 i n e End
IDY bus signal
1 i n e Identify
MLA
20-3F My Listen Address
~1T A 40-5F My
Talk Address
RFD bus
signal 1 i n e Read
For
Data
UNL 3F
Unlisten
UNT 5F
Unta 1 k
Refer to the IEEE Standard 488-1978 for further explanation.

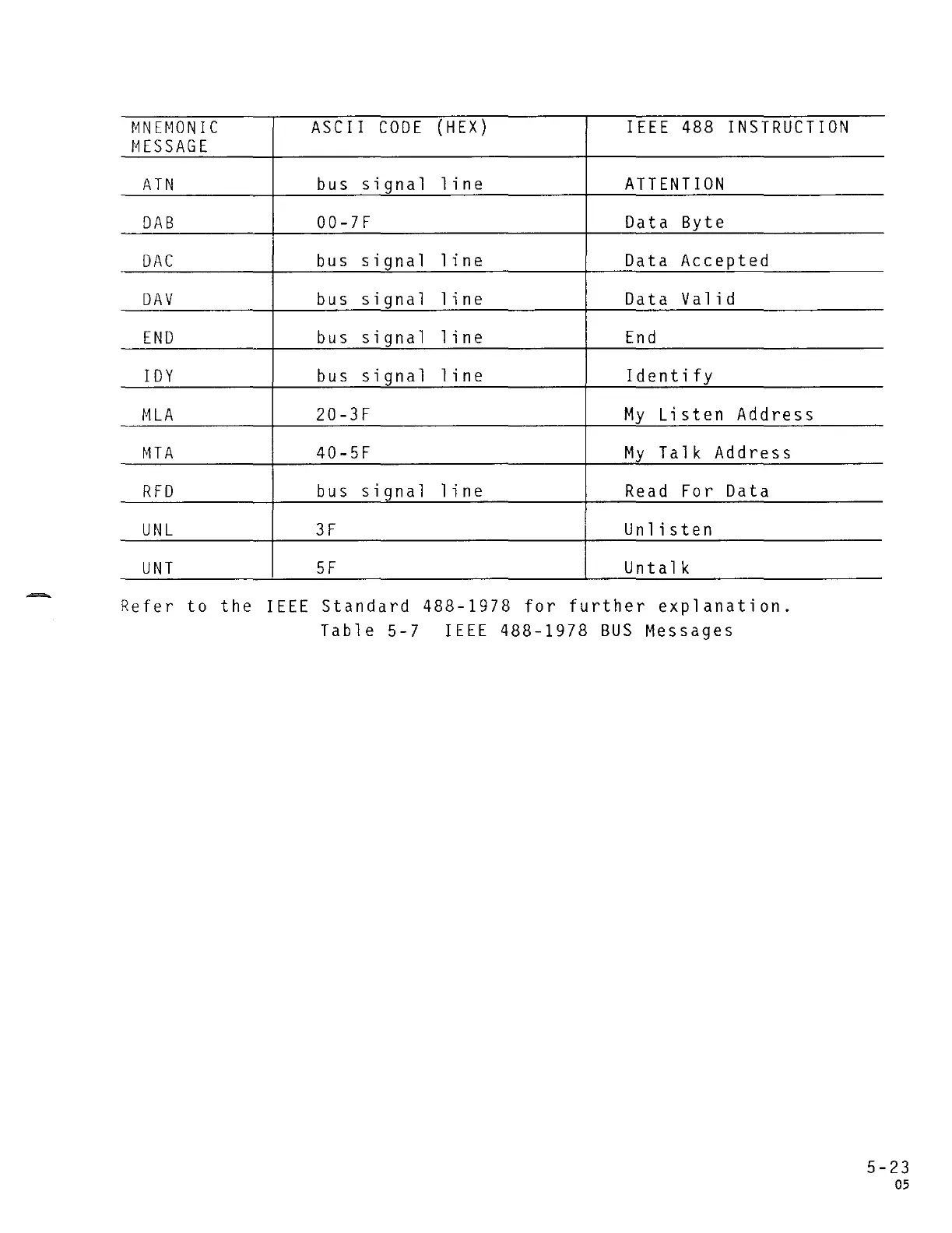

Table 5-7 IEEE 488-1978 BUS Messages
5-23
05
