C. Mobile Calling a Free Repeater
The following illustrates a simple repeater/mobile handshake.
The bit transmissions are formatted as:
SYNC CS): AREA: GOTO: HOME: ID CODE: FREE: CHECK (C)
The following illustrates a Handshake sequence:
REPEATER #2 ACTION:
MOBILE ID
#212
MOBILE SEES FROM THE
TRANSMITS DATA WORD:
REPEATER
DATA WORD THAT
S:0:2:255:2:C
EVERY 10 SECONDS
THE HOME REPEATER CHANNEL
IS
FREE
PUSH-TO-TALK SWITCH IS
PRESSED.
MOBILE TRANSMITS
DATA WORD:
S:0:2:2:212:31 :C
"
CHECK FOR VALID AREA AND ID
CODE AND CONTINOUSL Y
IF AREA, HOME AND ID CODE ARE
TRANSMIT
THE DATA WORD:
OK,
THEN TRANSMIT VOICE
S:0:2:2:212:5:C
ALL MOBILES WITH ID CODE #212
UN
SQUELCH
RELEASE PUSH-TO-TALK AND
TRANSMIT DATA
WORD:
S:0:31
:2:212:31 :C
REPEATER SEES "31" CODE AND
TRANSMITTS DATA WORD:
S:0:31
:2:212:2:C
ALL MOBILES WITH
ID CODE #212
SQUELCH

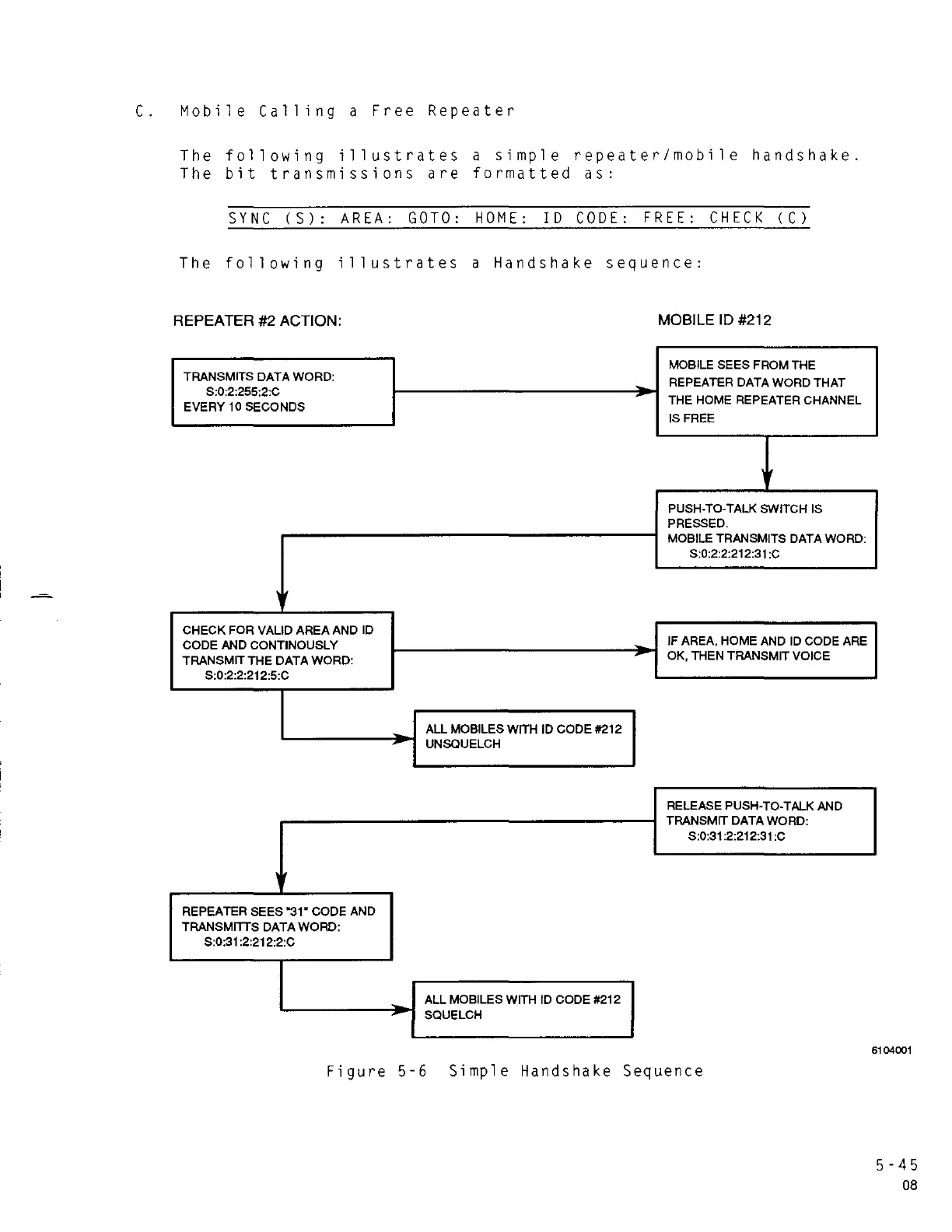

Figure 5-6 Simple Handshake Sequence
